Section 1: Product Overview
Front

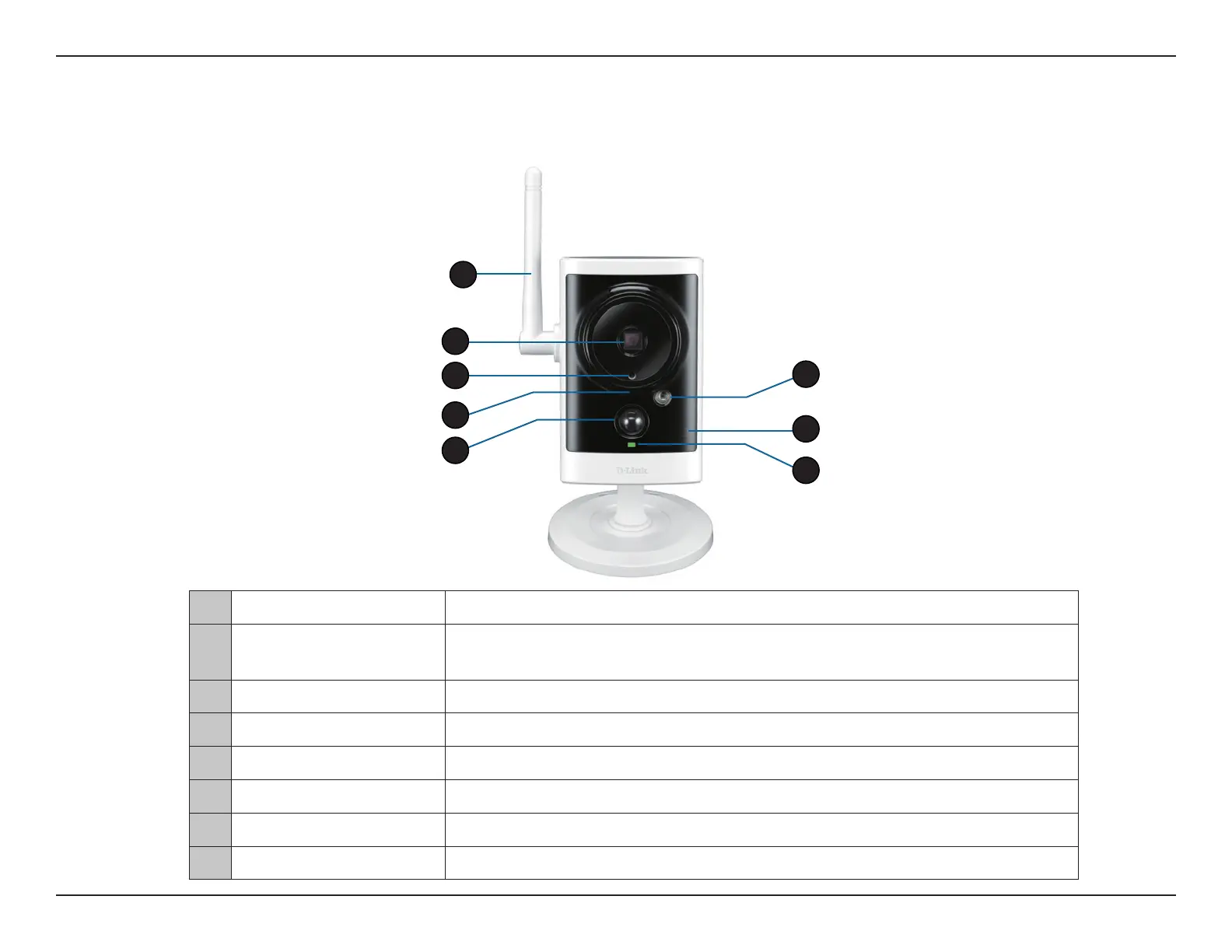

Hardware Overview
1 Camera Lens
Records video of the surrounding area
2 Light Sensor
The light sensor measures the lighting conditions and switches between color
and infrared accordingly
3 Microphone Records audio from the surrounding area
4 PIR Passive Infrared sensor for motion detection
5 IR LED
Infrared LED illuminates the camera's eld of view at night
6 WPS Status LED Indicates the WPS connection status of the camera
7 Power/Status LED
Indicates the camera's current status
8 Antenna Outdoor wireless antenna
4
5
3
6
2
1
7
8
