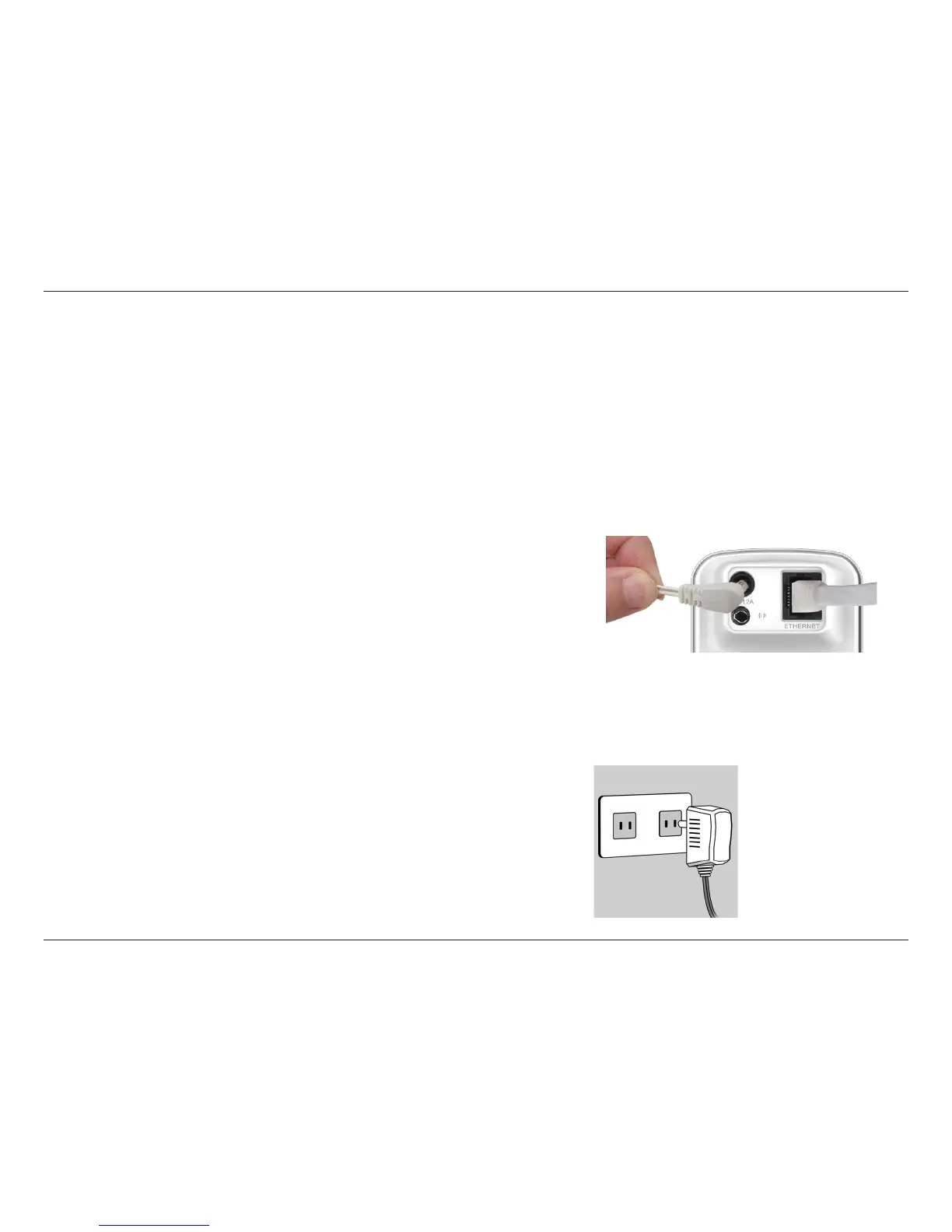

Section 2 - Installation
Zero Conguration Setup
If you have a mydlink-enabled Cloud Router, you can take advantage of Zero Conguration Setup. Zero Conguration
automatically congures your camera’s settings for you, and adds the camera to your mydlink account automatically. This
type of setup allows you to set up your camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink-enabled Cloud Router and Zero Conguration will automatically congure your
DCS-942L and add the camera to your mydlink account. After the short time it takes to do this you can remotely access your
camera from the website (http://www.mydlink.com) to manage and monitor your DCS-942L.
Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the
other end into an available port on your D-link Cloud Router. If you wish
to use your camera wirelessly, you will be able to remove the cable after
Zero Conguration Setup is complete. You can also plug the external power
adapter cable into the camera at this time.
Plug in the External Power Adapter
Plug the power adapter in to a wall outlet.

D-Link DCS-942L Specifications

General

Total megapixels	0.3 MP
Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Power LED	Yes
Networking features	Ethernet, Fast Ethernet, 802.11b/g/n WLAN
Still image resolution(s)	640 x 480
Sensor type	CMOS
Optical sensor size	1/5 \
Optical zoom	- x
Focal length range	0 - 3.15 mm
White balance	Auto
Camera shutter type	Electronic
Minimum illumination	1 lx
Form factor	Cube
Product color	White
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	1
Windows operating systems supported	Windows 7 Home Premium, Windows Vista Home Premium, Windows XP Home
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
LED type	IR
Night vision distance	5 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (DynDNS & D-Link) SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP, LLTD
Security algorithms	WEP, WPA, WPA2
Flash memory	16 MB
Internal memory	128 MB

Weight and Dimensions

Depth	60 mm
Width	34.85 mm
Height	96 mm
Weight	78.1 g
