37D-Link DCS-942L User Manual
Section 3 - Conguration

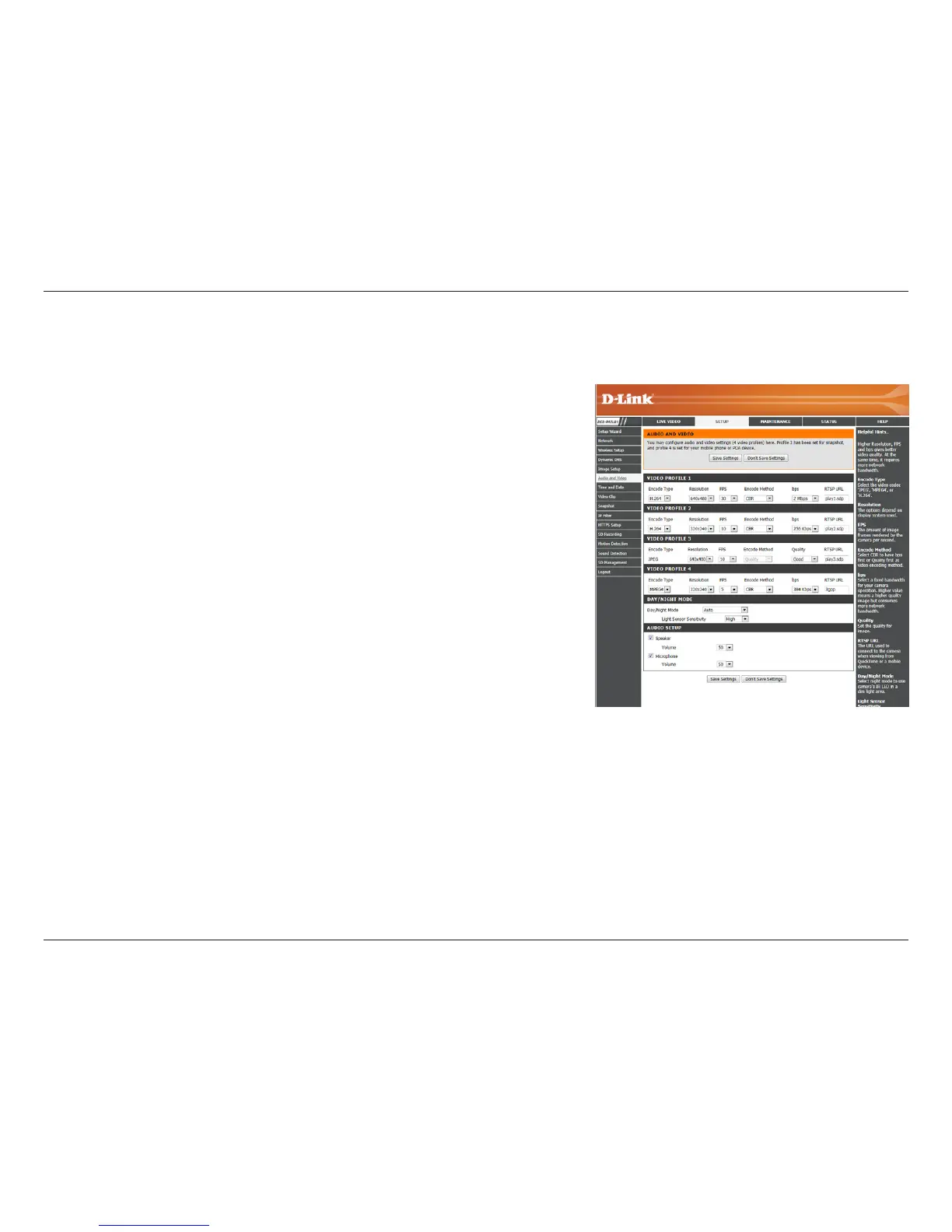

Audio and Video
This section allows you to congure the audio and video settings for your camera.
Video Prole:
Encode Type:
Resolution:
FPS:
Encode
Method:
bps:
JPEG Quality:
RTSP URL:
There are four individual proles that can be congured. Proles 3 and 4 are
reserved for snapshots and mobile devices to use.
The compression format used when viewing your cameras video feeds.
Select the desired video resolution: 640x480, 320x240, or 160x120. Higher
resolutions will result in a larger image, however it will also take up more network
bandwidth.
A higher FPS will result in smoother video playback, however it will also take up
more network bandwidth.
Select Constant bit rate(CBR) for xed the bandwidth consumption. Image
quality can be adjusted with the quality options(Low, Fair, Standard, Good,
Excellent) and will adjust the bit rate automatically.
Select the bit rate to assign the video. The bps setting is used as a maximum limit
for the amount of data the camera will use. A higher setting will result in better
looking video, but will also have a larger le size.
One of ve levels of image quality can be set for the snapshot feature: Highest,
High, Medium, Low, and Lowest.
The URL used to connect to the camera when viewing from QuickTime or a
mobile device.
