19D-Link DCS-942L User Manual
Section 2 - Installation

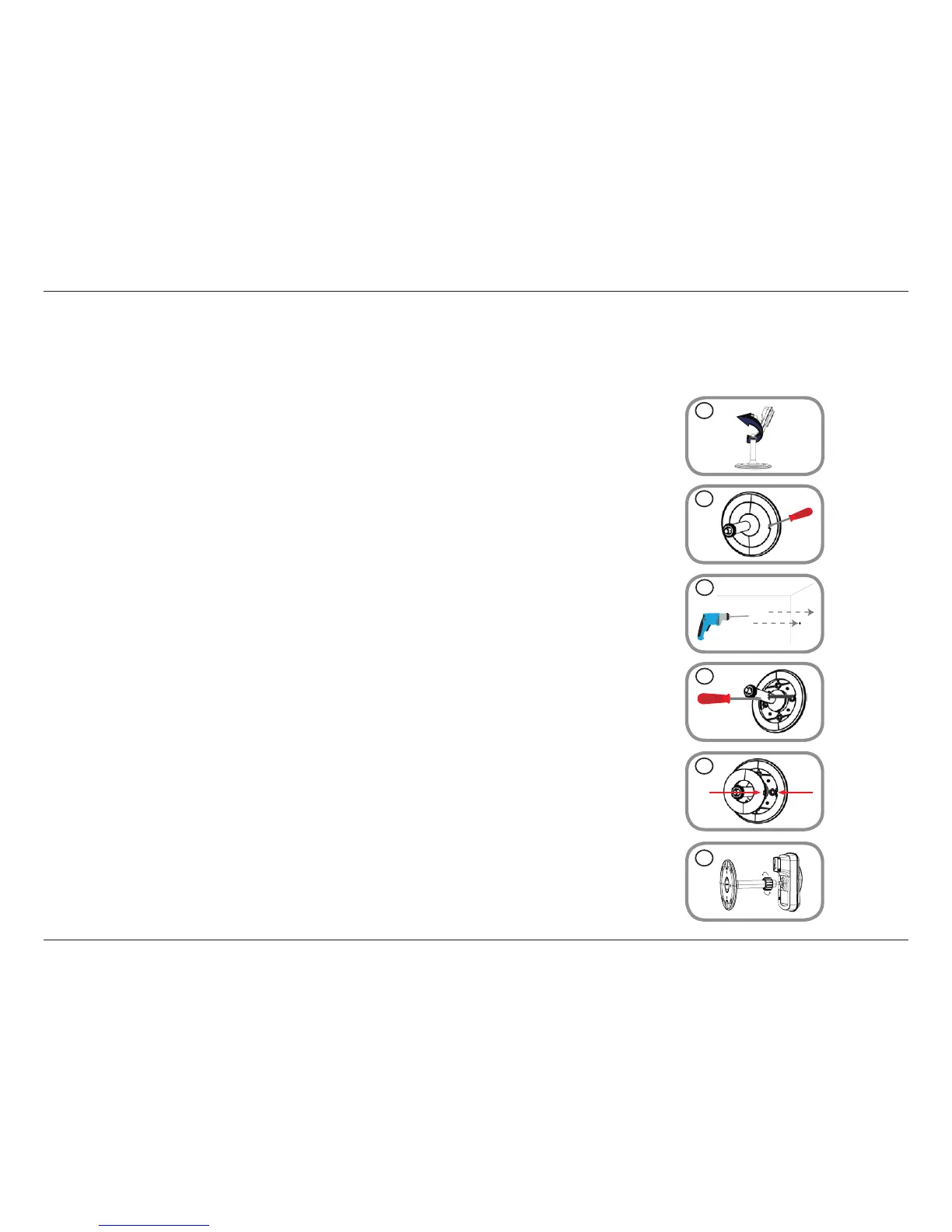

Mounting the Camera
To mount your camera on a wall or ceiling, please follow the steps below. It is recommended that you congure the camera before mounting.
Step 1
The camera needs to be removed to expose the holes in the mounting base. Unscrew the
camera head from the mounting base by turning counterclockwise.
3
6
1
2
5
4
Step 6
Adjust the angle of the camera as desired, then tighten the collar on the camera stem
to lock it in place.
Step 5
Place the base cover on the base. Make sure to align the base cover notch, with the
mounting base for future removal. Afterwards, reattach the camera head onto the
mounting base.
Step 4
Place the mounting base over the holes that are in the wall. Make sure to align the mounting
base holes with the holes in the wall. Use the supplied screws to attach the mounting base
to the surface of the wall.
Step 3
Depending on the material of the wall or ceiling, use proper tools to drill two holes 25mm
deep with a 6mm drill bit where you marked. If the wall is made out of concrete, drill the
holes rst, then insert the plastic anchors to support the screws.
Step 2
Use a athead screwdriver to remove the base cover from the mounting base. Place the
mounting base where you want to position the camera and use a pencil to mark the holes.
