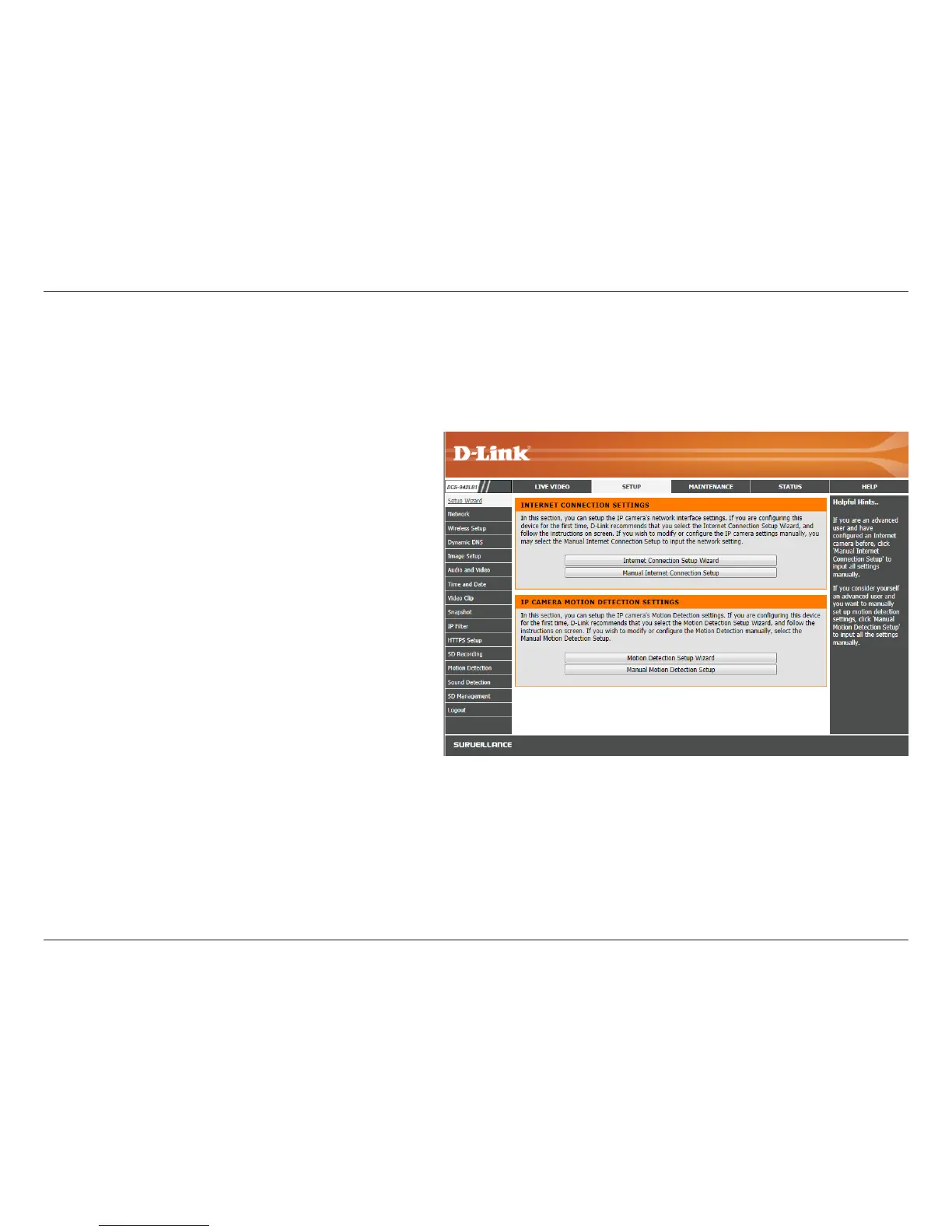

Section 3 - Conguration
Setup
Wizard
You may choose to congure your network by
using the Internet Connection Setup Wizard that
includes step-by-step instructions. Please refer to
“Internet Connection Setup Wizard” on page 25 for
more details.
If you would rather manually set up the camera
internet connection, you can refer to “Network”
on page 32 which provides more details on the
information required.
You may choose to congure motion detection
by using the Motion Detection Setup Wizard that
includes step-by-step instructions. Please refer
to “Motion Detection Setup Wizard” on page 28 for
more details.
If you would rather manually set up the camera’s
motion detection features, you can refer to
“Motion Detection” on page 45 which provides
more details on the information required.
Internet
Connection
Setup Wizard:
Manual Internet
Connection
Setup:
Motion Detection
Setup Wizard:
Manual Motion
Detection Setup:
This section allows you to begin setup wizards which will guide you through the process of getting your camera’s various functions congured. If
you comfortable with adjusting the settings manually, you may skip the wizards and adjust settings manually as needed.

D-Link DCS-942L Specifications

General

Total megapixels	0.3 MP
Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Power LED	Yes
Networking features	Ethernet, Fast Ethernet, 802.11b/g/n WLAN
Still image resolution(s)	640 x 480
Sensor type	CMOS
Optical sensor size	1/5 \
Optical zoom	- x
Focal length range	0 - 3.15 mm
White balance	Auto
Camera shutter type	Electronic
Minimum illumination	1 lx
Form factor	Cube
Product color	White
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	1
Windows operating systems supported	Windows 7 Home Premium, Windows Vista Home Premium, Windows XP Home
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
LED type	IR
Night vision distance	5 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (DynDNS & D-Link) SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP, LLTD
Security algorithms	WEP, WPA, WPA2
Flash memory	16 MB
Internal memory	128 MB

Weight and Dimensions

Depth	60 mm
Width	34.85 mm
Height	96 mm
Weight	78.1 g
