Section 2 - Installation
Manual Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard or Zero Conguration
Setup.

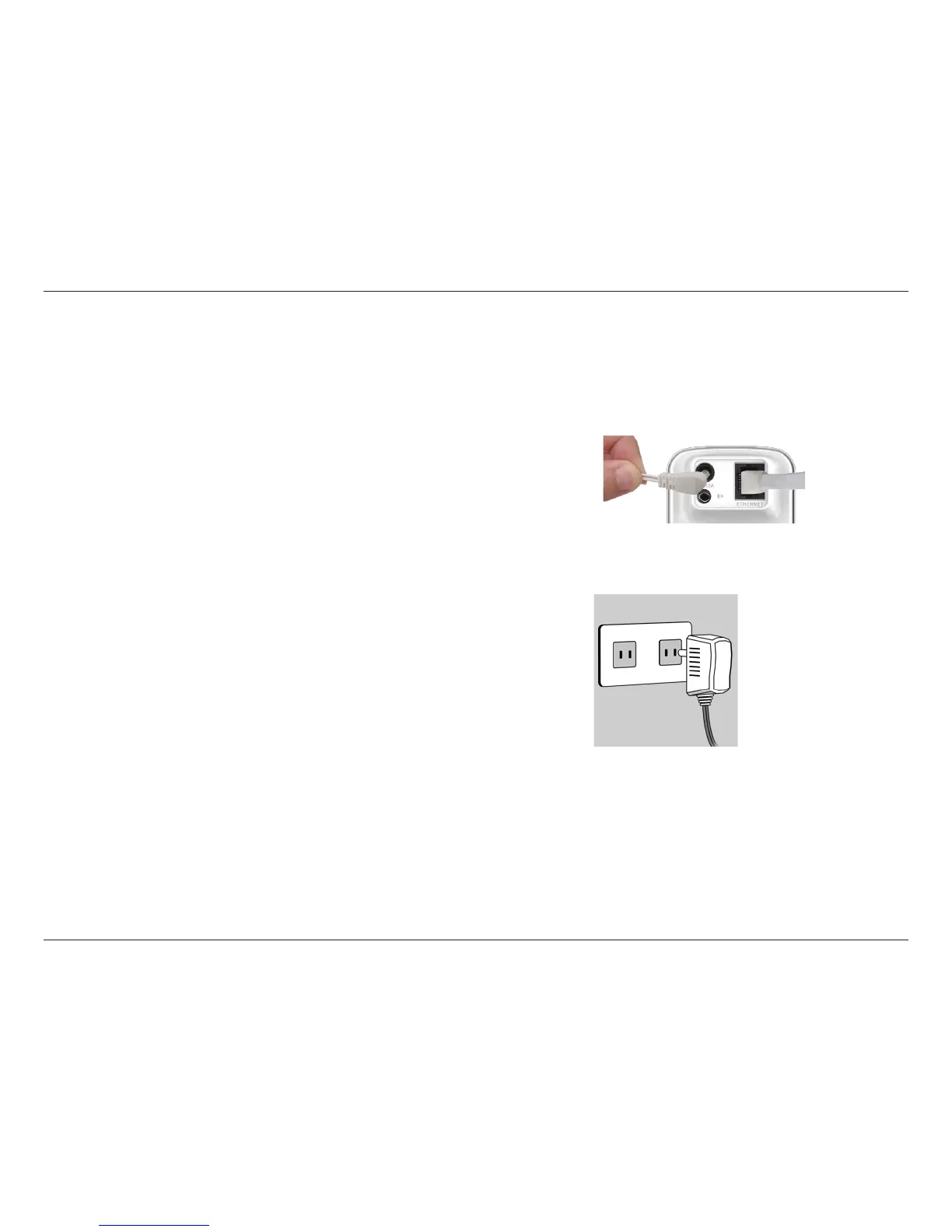

Plug in the External Power Adapter
Plug the power adapter in to a wall outlet.
Connect the Ethernet Cable and Power Cable
Use the included Ethernet cable and plug it into the camera. Plug the other
end into an available port on your router. You can also plug the external
power adapter cable into the camera at this time.
Congure Your Camera
Refer to “Conguration” on page 21 for information on how to congure your camera.
Optional: Use WPS to Connect Wirelessly
You can use WPS to connect your camera to your network wirelessly. For more information, refer to “WPS - Push Button Setup”
on page 18. If your router does not support WPS, you will still be able to set up your camera’s wireless settings in the camera’s web
interface.

D-Link DCS-942L Specifications

General

Total megapixels	0.3 MP
Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Power LED	Yes
Networking features	Ethernet, Fast Ethernet, 802.11b/g/n WLAN
Still image resolution(s)	640 x 480
Sensor type	CMOS
Optical sensor size	1/5 \
Optical zoom	- x
Focal length range	0 - 3.15 mm
White balance	Auto
Camera shutter type	Electronic
Minimum illumination	1 lx
Form factor	Cube
Product color	White
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	1
Windows operating systems supported	Windows 7 Home Premium, Windows Vista Home Premium, Windows XP Home
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
LED type	IR
Night vision distance	5 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (DynDNS & D-Link) SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP, LLTD
Security algorithms	WEP, WPA, WPA2
Flash memory	16 MB
Internal memory	128 MB

Weight and Dimensions

Depth	60 mm
Width	34.85 mm
Height	96 mm
Weight	78.1 g
