Setup Menu
When the main page appears, find the Setup menu in the left side
of the screen (Figure 16). Click on the setup item that you want to
configure. There are eleven options: Port Settings, VLAN Settings,
Trunk Setting, Mirror Setting, Device Status, Statistic, System
Settings, Trap Setting, Password Setting, Backup Setting, and
Reset Setting, as shown in the Main Menu screen.

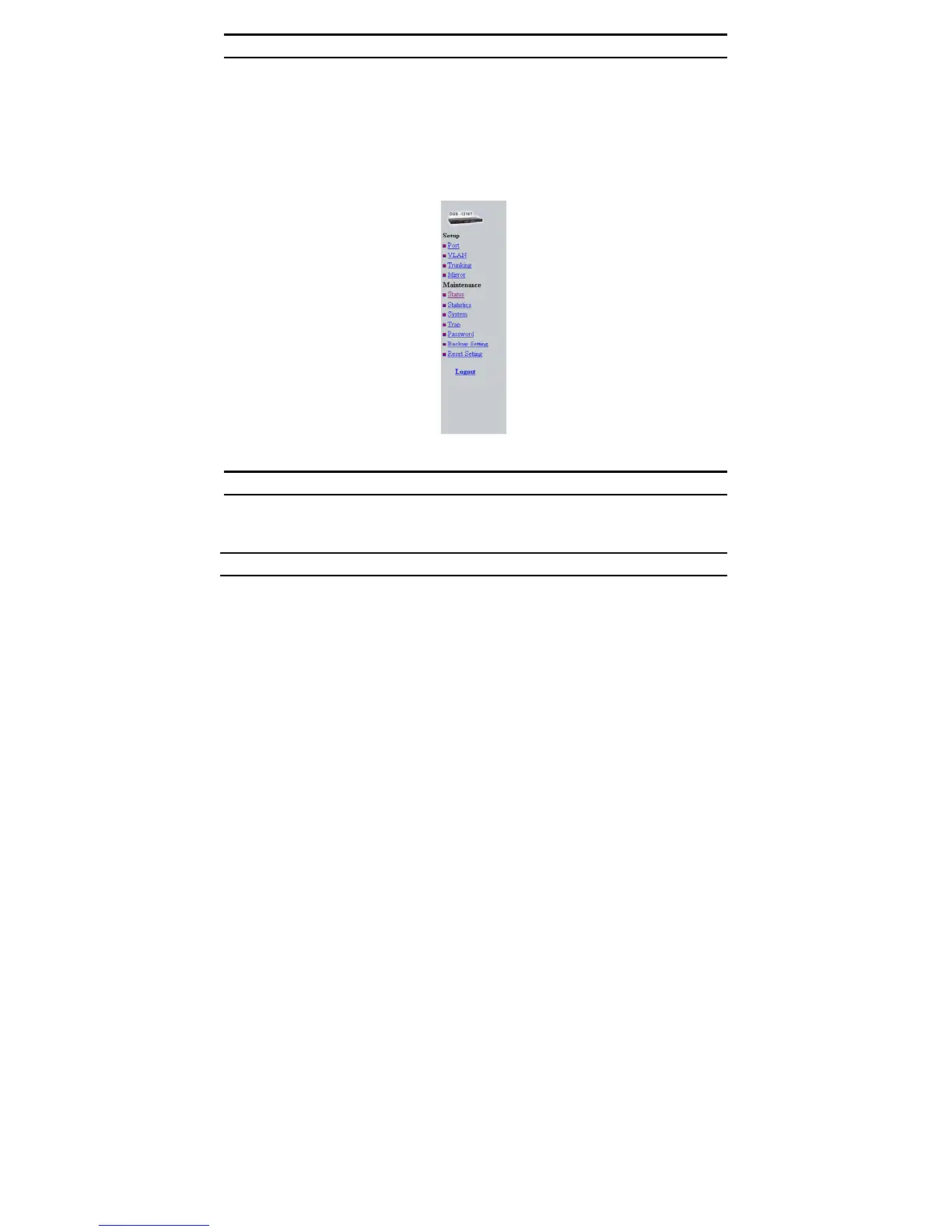

Figure 16. Setup menu
Configuring Setup Setting
There are four items, including Port Settings, VLAN Settings,
Trunk Settings, and Mirror Settings, in the Setup menu.
Port Settings
The Port Settings menu (Figure 17) will show each port’s status.
Click the ID parameter to set each port’s Speed, Flow Control,
QoS priority, and Link Status. When you need to renew the posted
information, click the “Refresh” button.
