18D-Link DPN-101G User Manual
Section 3 - Conguration
IP/Port Filtering
Firewall
Services

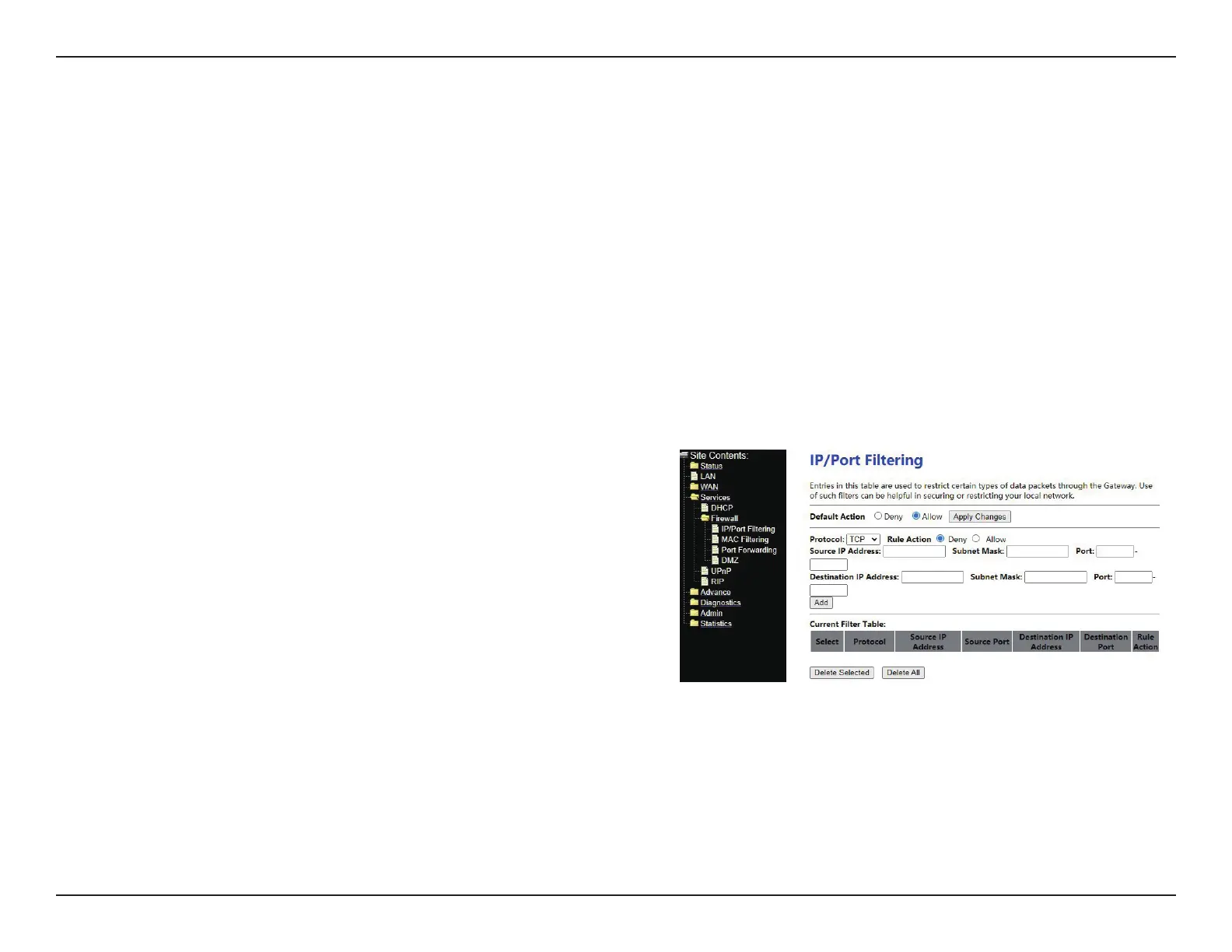

Choose Services > Firewall > IP/Port Filtering, and the page shown in
the right gure appears. Entries in this table are used to restrict certain
types of data packets from your local network to Internet through the
Gateway. Use of such lters can be helpful in securing or restricting your
local network.
Click Services > Firewall, the page shown in the following gure appears. The Firewall page contains IP/Port Filtering, MAC Filtering, Port
Forwarding and DMZ.
In the navigation bar, click Services. The Service page that is displayed contains Firewall, UPnP and RIP.
