Section 3 - Conguration

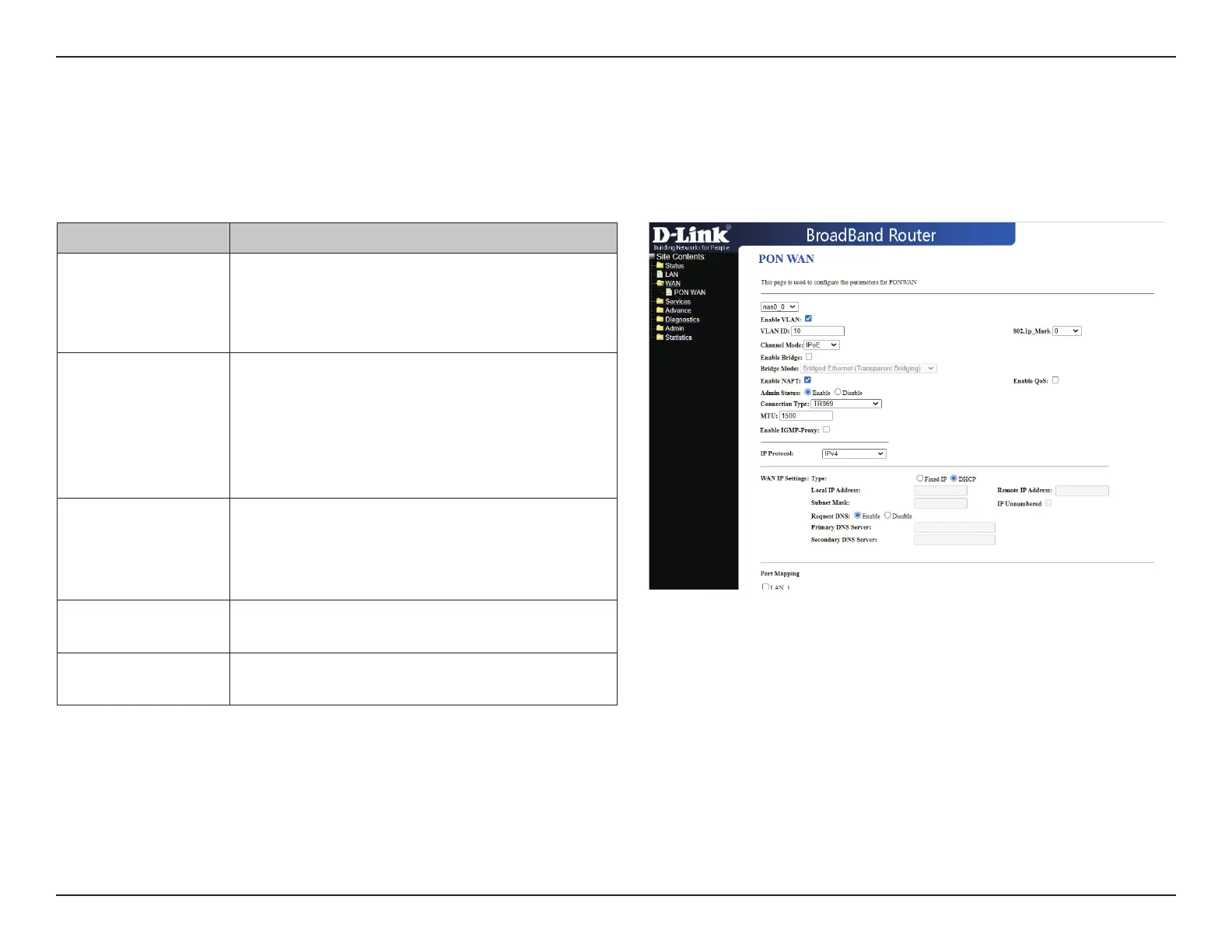

Choose WAN > PON WAN. The WAN tab that is displayed. In this page, you can congure WAN interface of your router.
The following table describes the parameters of this page:
WAN
Field Description
VLAN
Enable VLAN option, you will need to cong the
VLAN ID and 802.1p_Mark.VLAN ID is from 1~4095,
but some of it is in reserved. 802.1p is the priority
from 0~7.
Channel Mode
You can choose Bridged, IPoE, PPPoE. Bridged is
for forwarding data under layer-2 network. Usually
user need to connect another router on the LAN
side. IPoE is for obtain IP from ISP or congure IP
manually. PPPoE is congured to PPP dial-up.
Enable Bridge
From Channel Mode, you can congure bridged
mode or routed mode. If you congured routed
mode, you can also enable this option to let
bridged mode works simultaneously.
Enable NAPT
Under routed mode, user can enable this option to
use NAT or not.
Admin Status
This option is always set to Enable to enable
service.
After your change please press "Apply Changes" to change.
