DSL-2600U ADSL/Ethernet Router with Wi-Fi
User Manual
Installation and Connection
After clicking the button the system statistics page opens. The page displays general information on
the router and its software (the version and the date of the firmware, the IP address of the device,
the name of the WLAN, etc.), and data on the DSL connection state.

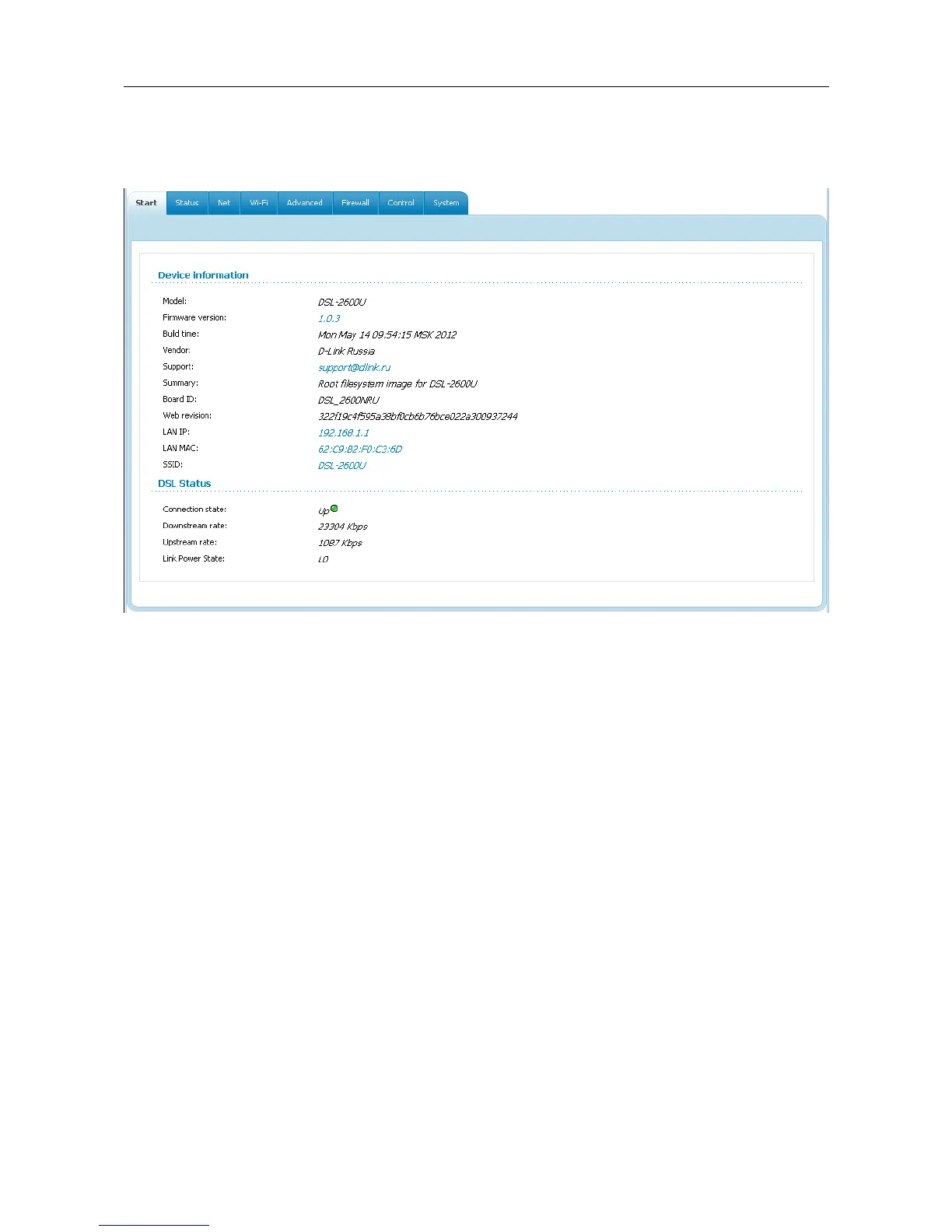

Figure 18. The system statistics page.
From the system statistics page you can proceed to the page for upgrading the router's firmware,
contact the technical support group, and proceed to the settings of the local interface or the device's
WLAN.
To upgrade the firmware of the router, left-click the current firmware version (the right column of
the Firmware version line). After clicking the line, the System / Firmware upgrade page
opens (see the Firmware Upgrade section, page 108).
To contact the technical support group (to send an e-mail), left-click the support e-mail address (the
right column of the Support line). After clicking the line, the e-mail client window for sending a
new letter to the specified address opens.
To edit the router's local interface parameters, left-click the IP or MAC address of the local interface
(the right column of the LAN IP line or LAN MAC line correspondingly). After clicking the line,
the page for editing the LAN interface opens (see the LAN section, page 66).
To configure the router's WLAN parameters, left-click the SSID of the WLAN (the right column of
the SSID line). After clicking the line, the Wi-Fi / Basic settings page opens (see the Basic
Settings section, page 69).
Page 28 of 112
