D-Link DSL-520B User Guide

Section 3 – Configuration

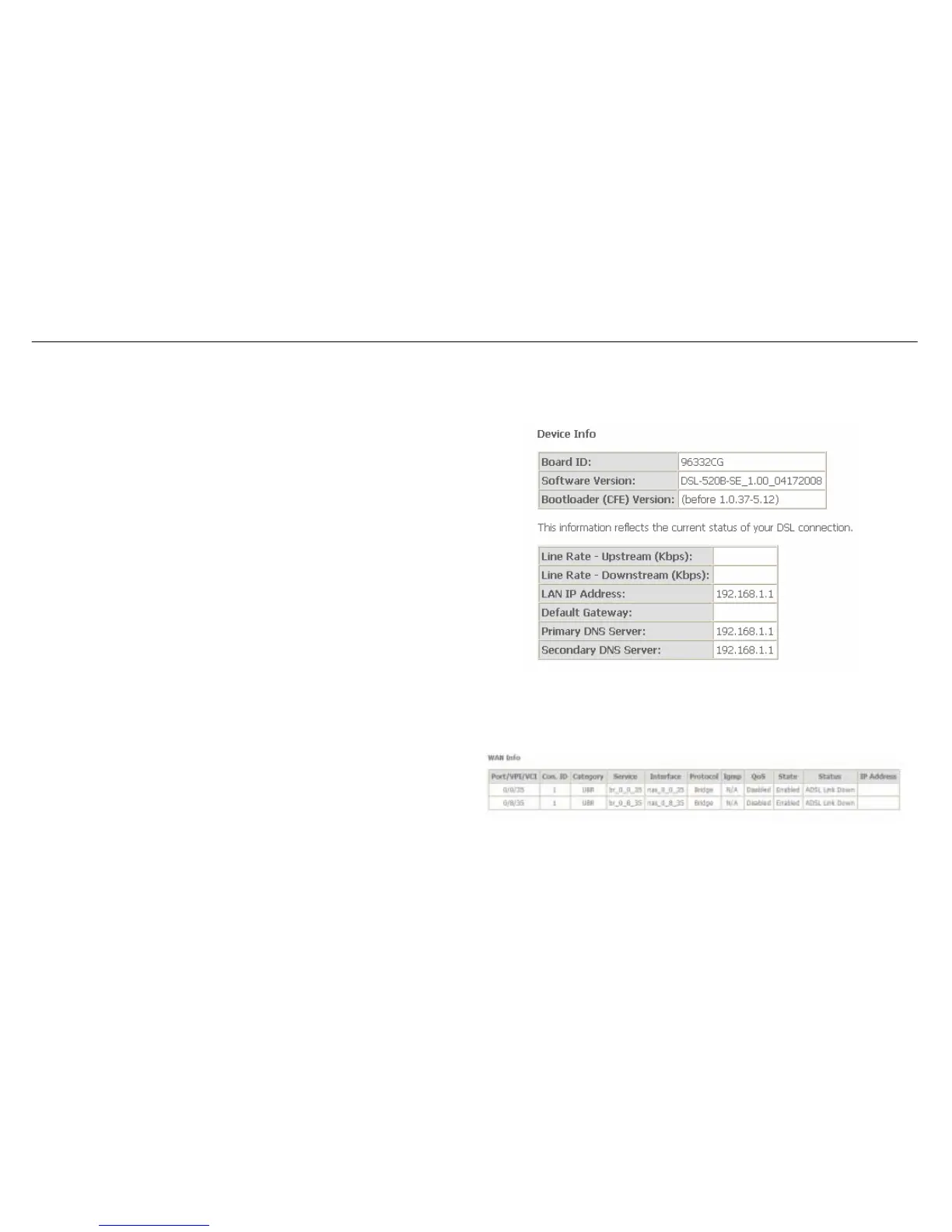

Summary
This window displays the current status of your DSL connection, including
the software version, LAN IP address and DNS server address.
WAN
To access the WAN Info window, click the WAN link in the Device Info directory.
This window displays the current status of your WAN connection.
D-Link DSL-520B User Manual
18

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
