D-Link DSL-520B User Guide

Section 3 – Configuration
Diagnostics

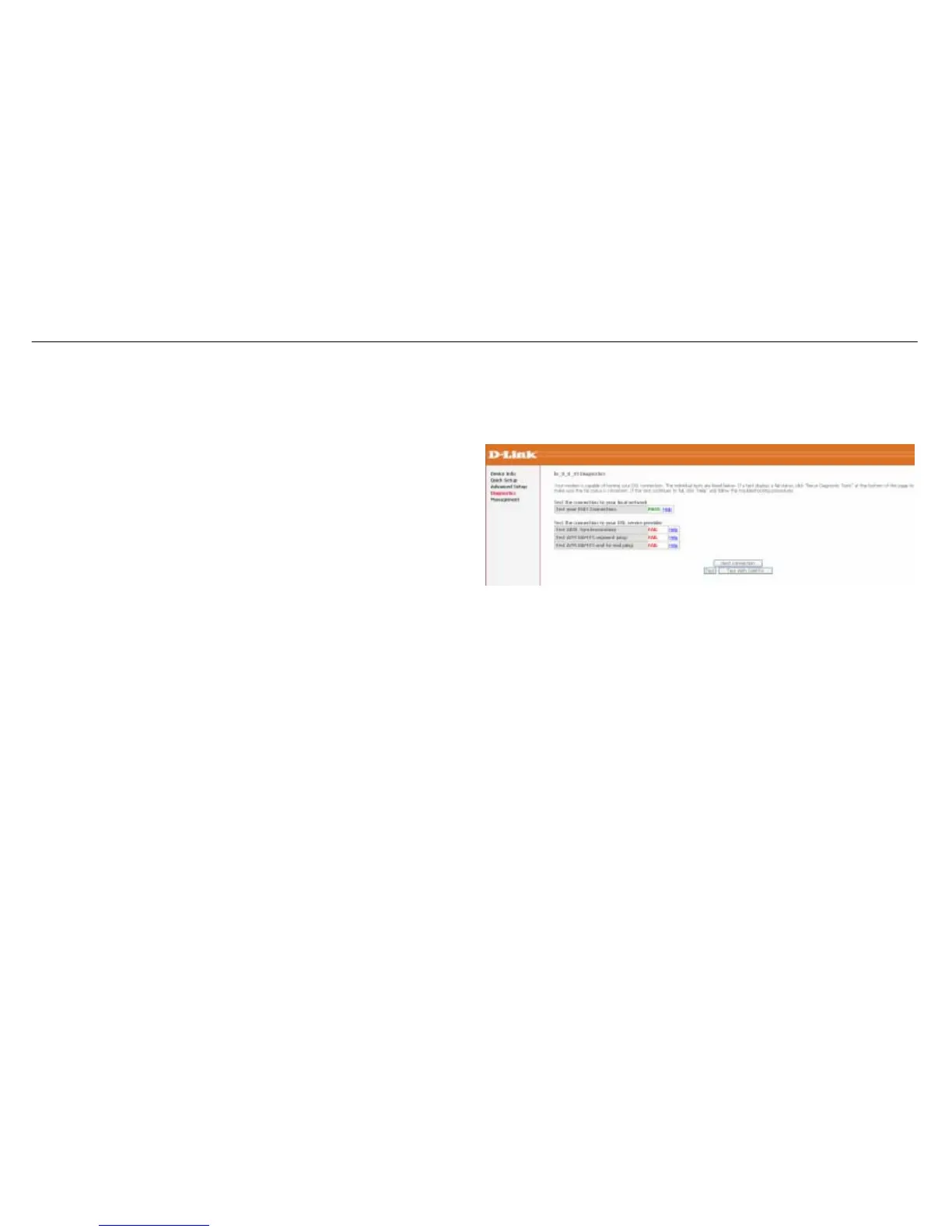

To access the Diagnostics window, click the Diagnostics link.
This window is used to test connectivity of the Router.
Click the Test button to test the network connection to your local network
and your DSL service provider.
The Diagnostics window also allows you to test the network connection
with OAM F4. Click the Test with OAM F4 button to carry out this type of
test.
To test another connection on the Router click the Next/Previous
Connection button.
D-Link DSL-520B User Manual
50

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
