D-Link DSL-520B User Guide

Section 3 – Configuration

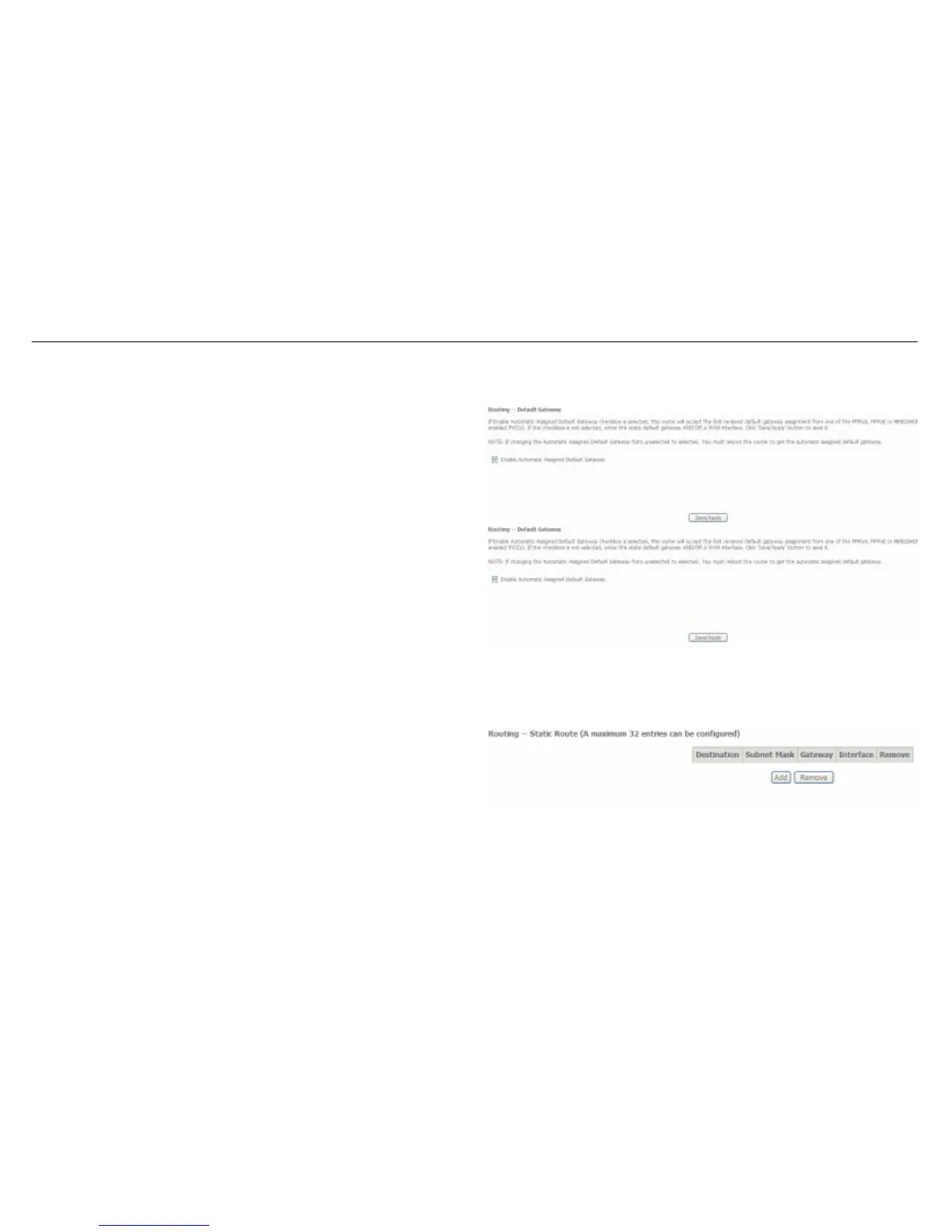

Routing
To access the Routing windows, click the Routing button in the Advanced Setup directory.
If the Enable Automatic Assigned Default Gateway checkbox is ticked,
the Router will accept the first default gateway assignment received from
one of the enabled PPPoA, PPPoE, or MER/DHCP enabled PVC(s).
Untick the Enable Automatic Assigned Default Gateway checkbox If
you want to configure the default gateway manually. Tick the Use Default
Gateway IP Address checkbox and type in the Default Gateway you
want to use. If you want to use an Interface as your default gateway tick
the Use Interface checkbox and choose an interface from the drop-down
menu.
When you have finished configuring the Default Gateway click the
Save/Apply button.
To access the Static Route window click the Static Route link in the
Routing directory. Click the Add button on the Static Route window to
access the following window:
D-Link DSL-520B User Manual
43

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
