D-Link DSL-520B User Guide

Section 3 – Configuration

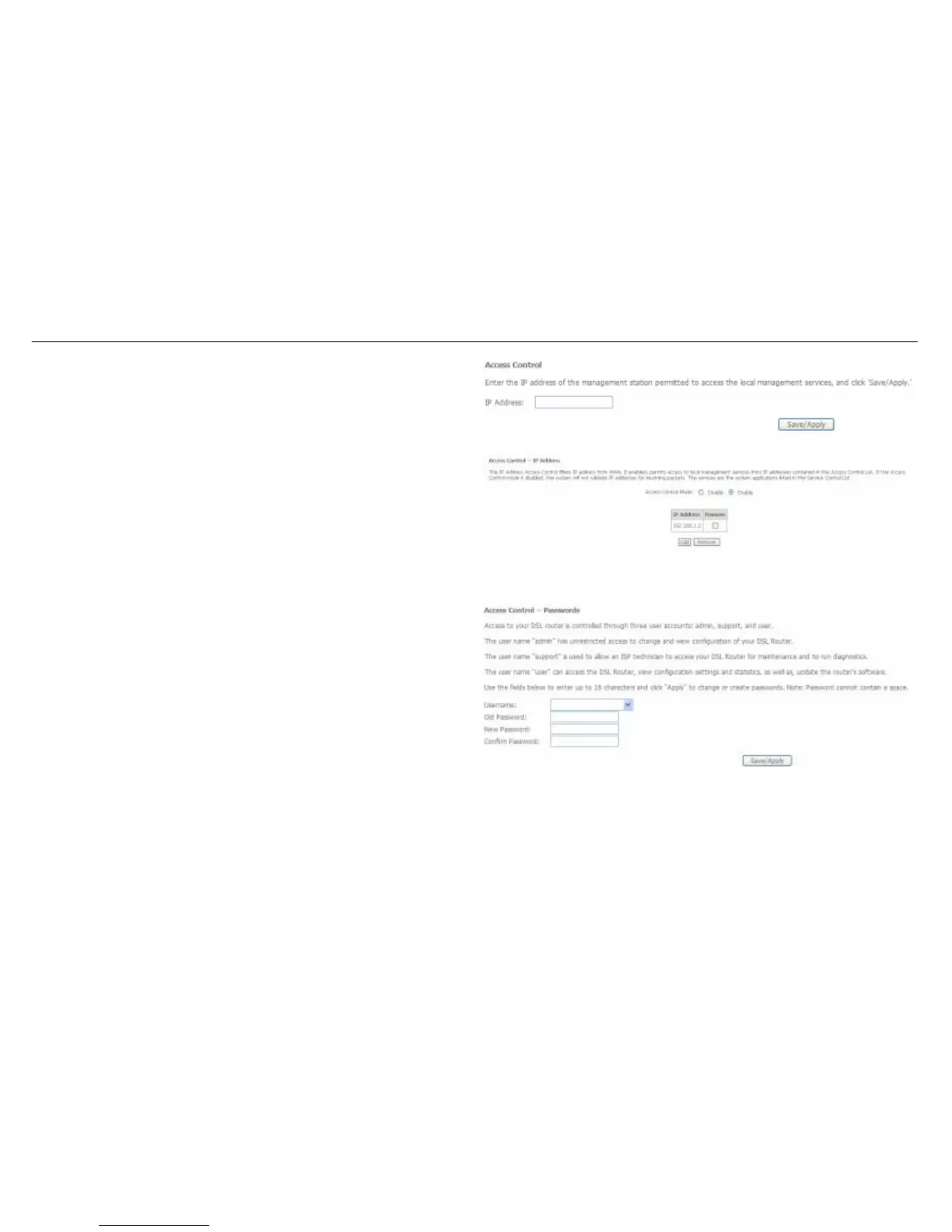

Enter the IP address of the management station permitted to access the
local management services. When you are finished, click the Save/Apply
button.
When you have added all the IP addresses of the hosts you want to give
remote management to , click the Enable radio button.
Access Control – Passwords
This window allows you to change the password on the Router. When
you are finished, click the Save/Apply button.
D-Link DSL-520B User Manual
57

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
