(PASSWORD) coincides with the combination of keys used for direct access (as in Table 7) and allows the extended display of the menus from
the menu corresponding to the access key to all those with a lower priority.
The order of the menus is: User, Manual Setpoint, Manual, Installer, Technical Assistance.
When an access key is selected, the menus released remain available for 15 minutes or until they are disabled manually by means of the item
“Hide forward menus” which appears on the menu selection when using an access key.

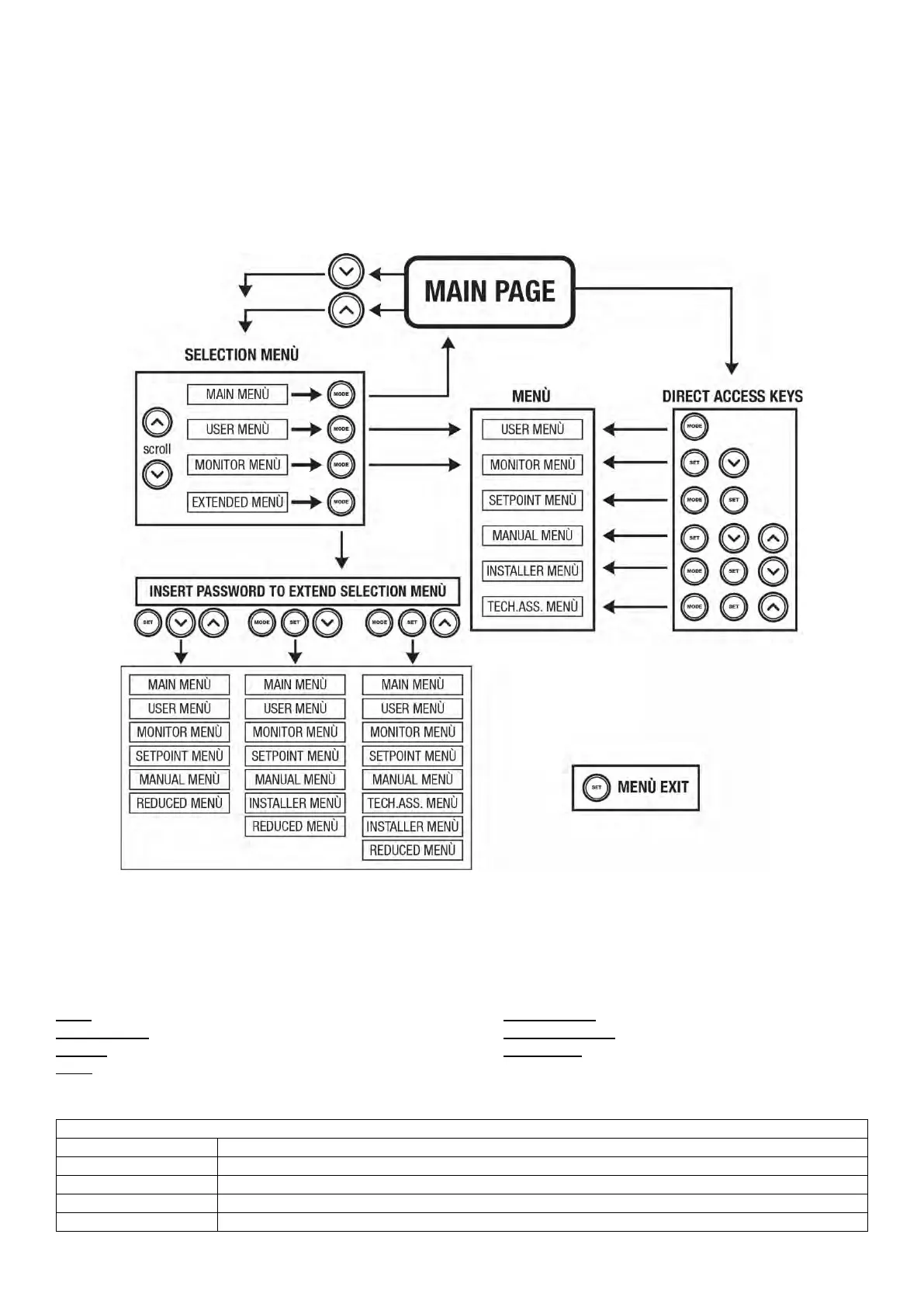

Fig. 14 shows an operating diagram for selecting the menus.
The menus are in the centre of the page, from the right you reach them by means of direct selection with a combination of keys, while from the
left you reach them by means of the selection system with drop-down menu.
Figure 14 Diagram of possible menu accesses
4.3 - Structure of the menu pages. (FIRMWARE VERSION ≤ 4.x.x)
When switched on, some presentation pages are displayed showing the name of the product and the logo, after which the main menu appears.
The name of each menu, whichever it may be, is always at the top of the display.
The following always appear on the main page:
Status
: operating status (e.g. standby, go, Fault)
: value in [rpm]
: value in [bar] or [psi] depending on the set unit of measure.
Power: value in [kW] of the power absorbed by the device.
If the case occurs the following may appear:
Fault indications
Warning indications
Specific icons
The error conditions are indicated in Table 16. The other displays are indicated in Table 8.
Error and status conditions displayed
Motor status manually disabled
Low suction pressure signal function status / alarm
