Type of possible fault currents to earth
Alternating Unipolar pulsed Direct
With high-frequency
components
Inverter with single-phase power supply
Table 2

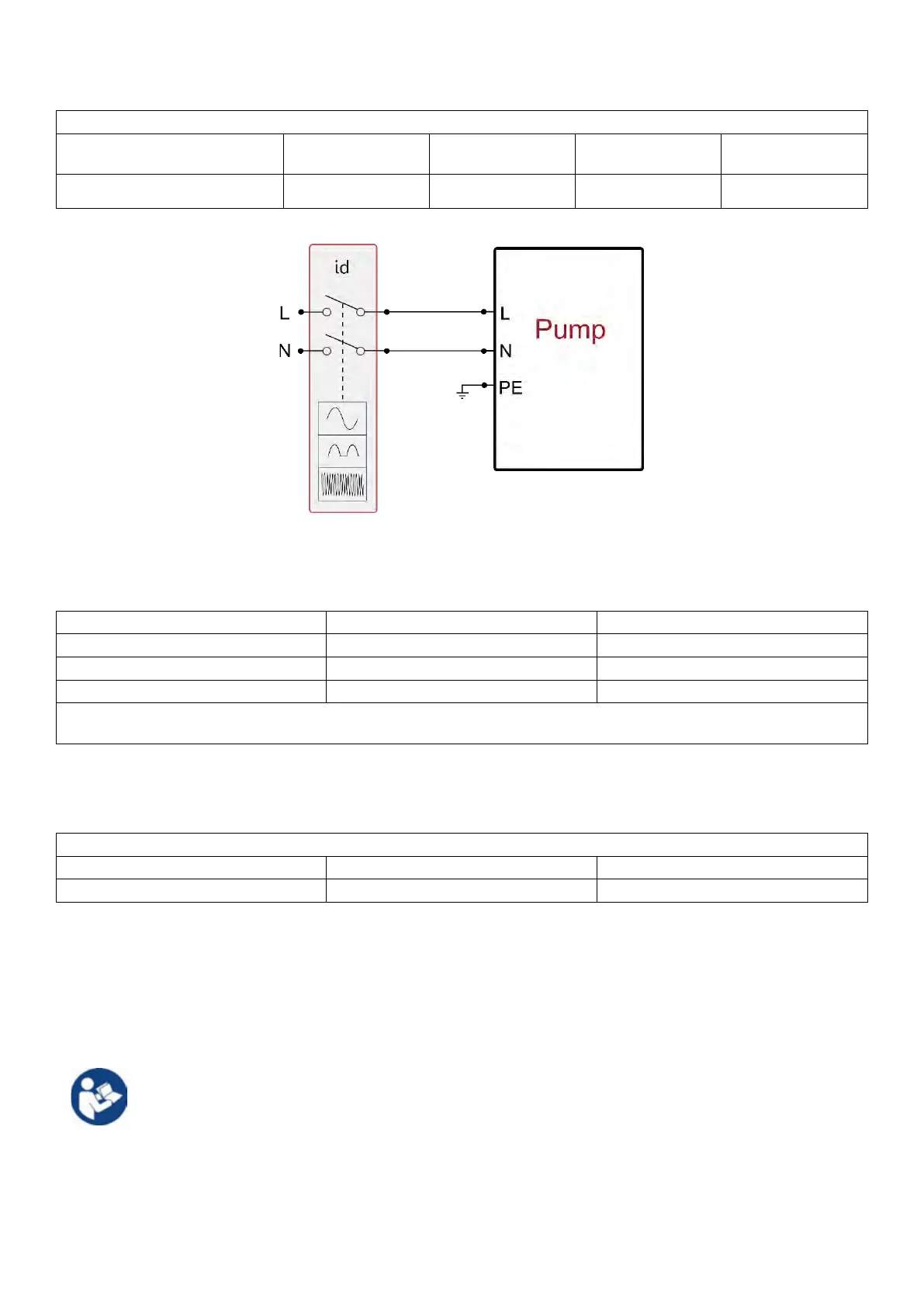

Fig 10 single-phase installation exemple
The thermal magnetic circuit breaker must be correctly sized (see Electrical Characteristics). For pumps not supplied with a plug, the
correspondence of the colours of the leads is as indicated in Table 3:
Type A: European markets or similar.
Type B: American and Canadian markets or similar.
Table 3
The appliance must be connected to a main switch that cuts off all the power supply poles. When the switch is in off position, the distance
separating each contact must respect the indications in Table 4.
Minimum distance between the contacts of the power switch
Table 4
3.2 Configuration of the Integrated Inverter
The system is configured by the manufacturer to satisfy most installation cases operating at constant pressure. The main parameters set in the
factory are:
• Set-Point (desired value of constant pressure) SP = 2.7 bar / 39 psi.
• Reduction of pressure to restart RP = 0.3 bar / 4.3 psi.
• Anti-cycling function: Disabilitata.
However, these parameters and others can be set by the user according to the system. See par. 4-5 for the specifications.
For the definition of the parameters SP and RP, the pressure at which the system starts has the value:
Pstart = SP – RP For example: 2.7 – 0.3 = 2.4 bar in the default configuration
The system does not work if the utility is at a height higher than the equivalent in metres of water column of the Pstart (consider 1 bar = 10 m
water column): for the default configuration, if the utility is at a height of at least 27m the system does not start.
3.3 - Priming
The priming of a pump is the phase during which the machine attempts to fill the body and the suction pipe with water. If the operation is successful
the machine can work regularly.
