• Signal output
DATA output TIME(T) can set to Function BCD Mode.
(10, 20, 50, 100, 200, 500, 1000㎳)
• Signal logic
① BCD DATA output : Negative logic (Negative)
② BUSY output : DATA READ = L
③ polarity output : “+” = H, “-” = L
④ RALAY outpu : RY1 ~ RY4 = L

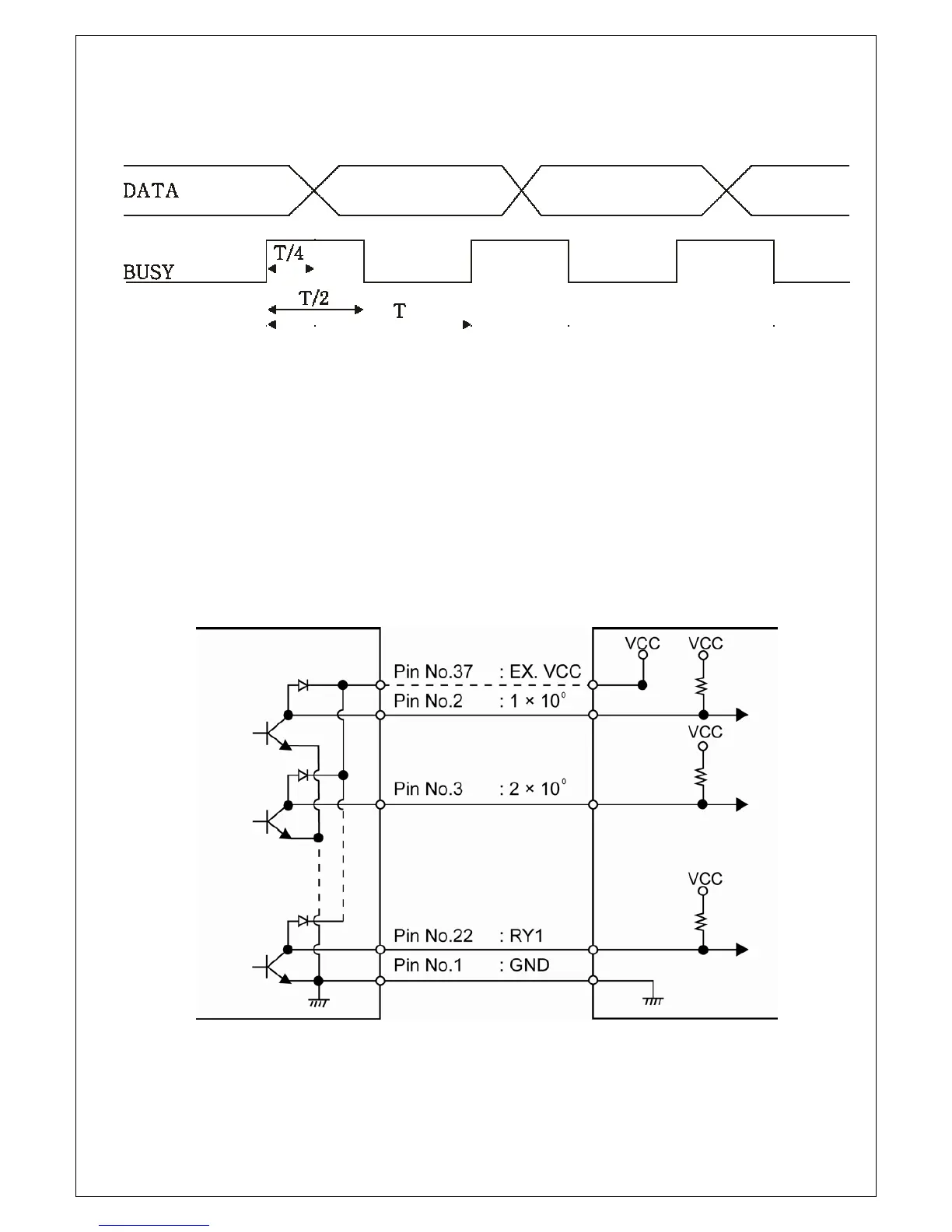

• BCD out circuit
INDICATOR External machinery
· External VCC : 50V Max
28
· Current : 500mA Max
To Next Page
