dacell DN-100 User Manual

10. OPTION
# Option 01(BCD OUT INTERFACE)
This Programmable BCD interface is the output for the weight value made into BCD
coding.
This interface is available for PLC(Programmable Logic Control), Computer.

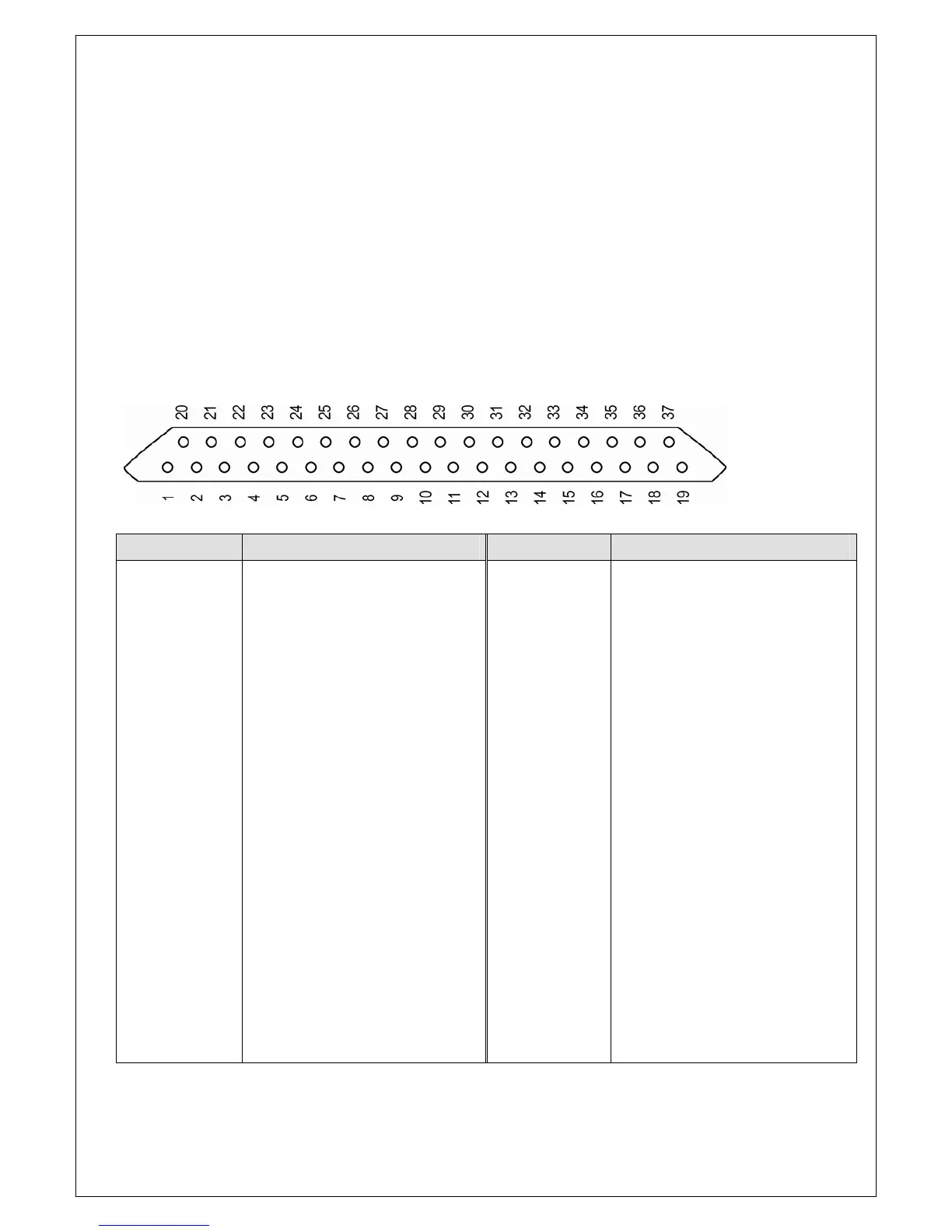

• PIN Arrangement
PIN No. SIGNAL PIN No. SIGNAL
1 GND 20 4 × 10
4
2 1 × 10
0
21 8 × 10
4
3 2 × 10
0
22 RLY1
4 4 × 10
0
23 RLY2
5 8 × 10
0
24 RLY3
6 1 × 10
1
25 RLY4
7 2 × 10
1
26 Negative Polarity
8 4 × 10
1
27 Busy
9 8 × 10
1
28 SP1
10 1 × 10
2
29 SP2
11 2 × 10
2
30 SP3
12 4 × 10
2
31 SP4
13 8 × 10
2
32 SP5
14 1 × 10
3
33 SP6
15 2 × 10
3
34 NC
16 4 × 10
3
35 +5V
17 8 × 10
3
36 NC
18 1 × 10
4
37 External VCC
19 2 × 10
4
