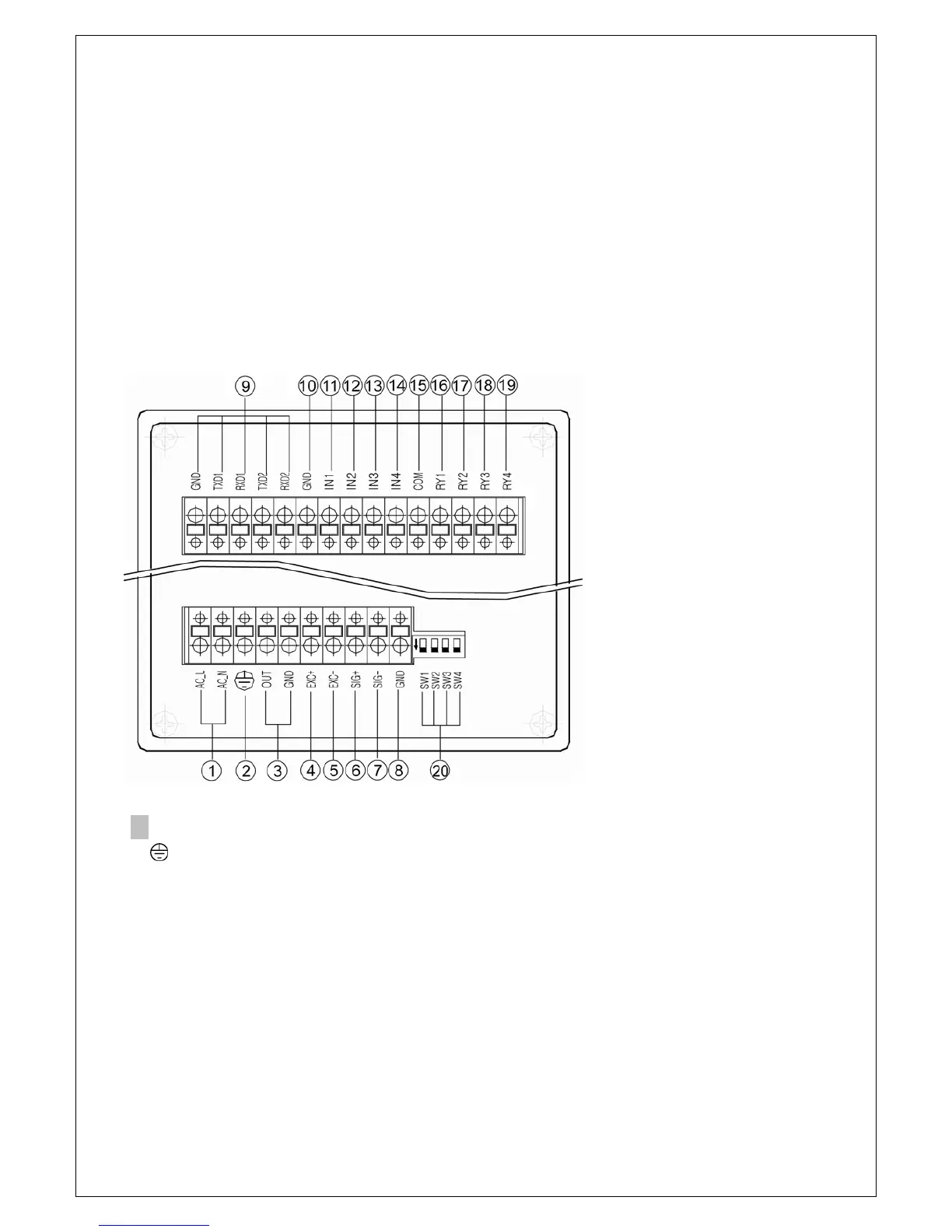

5. Rear Pannel
Please check the location of terminal and its use. While the projected button is being
pressed, please insert the cable into the lower hole completely. As soon as you release
the button, the connection will be completed. At the point, please slightly pull the calbe
and check whether the cable is come off or not.
(The most suitable calbe is Φ 0.5~1. Linking cable must be brazing or used with 1
terminal)
② : Ground Terminal (as an independent ground connection.)
① AC-L,N : Main Power Supply Wiring Terminal
③ OUT,GND : Analog (DC 0 ~10V/DC 4 ~ 20mA) output termanal
④ EXC+ : Sensor Supply Voltage + Connection Terminal
⑤ EXC- : Sensor Supply Voltage + Connection Terminal
⑥ SIG+ : Sensor Ouput Signal + Connection Terminal
⑦ SIG- : Sensor Output Signal – Connection Terminal
⑧ GND : SHIELD connection terminal of sensor
⑨ SERIAL INTERFACE
RS232C : GND (COM), TXD1 (TXD), RXD1 (RXD)
RS485 : TXD1 (TX+), RXD1 (TX-)
7
RS422 : TXD1(TX+), RXD1(TX-), TXD2(RX+), RXD2(RX-)
