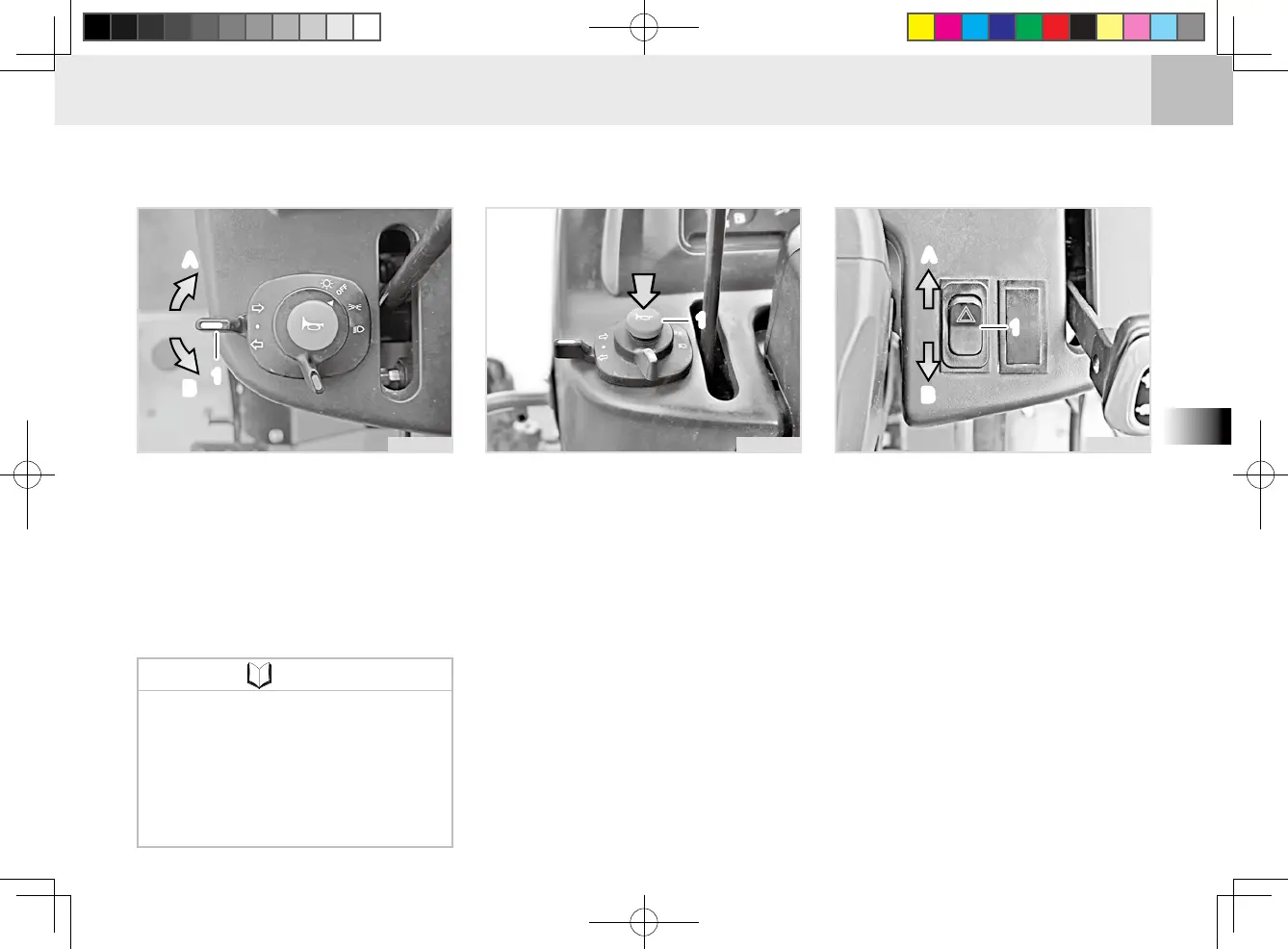

(1) Turn Signal Light Switch
(A) Right Turn (B) Left Turn
The turn signal lights are used when
turning the vehicle left or right. Pull-
ing the lever up blinks the right turn
signal light while pushing the lever
down blinks the left turn signal light.
TURN SIGNAL LIGHT SWITCH
td2O409s
(1) Horn Switch
The horn switch can be operated
without the key inserted. Pressing
this switch sounds the horn.
This switch can be used to warn
other vehicles when malfunction oc-
curs in the tractor while driving on a
public road. Pressing this switch up
blinks the hazard lamp and returning
it turns off the lamp. The turn signal
lights cannot be operated while this
switch is pressed up to operate the
hazard lamps.
HAZARD LAMP SWITCH
(1) Hazard Warning Flasher Switch
(A) ON (B) OFF
HORN SWITCH
NOTE
The turn signal light lever is not
the self-return type. Therefore,
make sure to return the lever
manually after turning the vehicle.
The turn signal lamps can be op-
erated without the key inserted.
•
•
