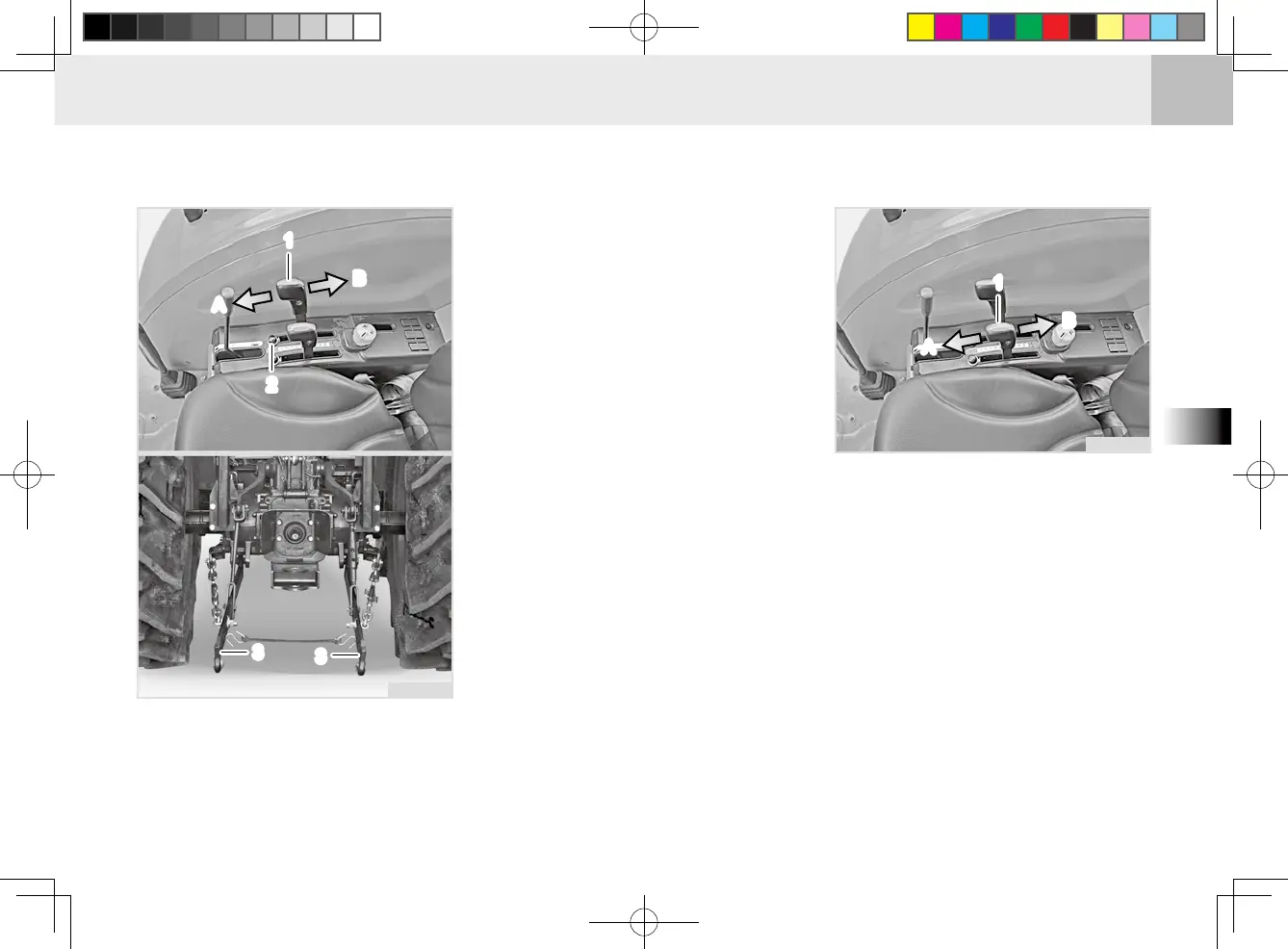

FUNCTION DESCRIPTION AND OPERATING TIPS
(1) Draft Control Lever
(A) Lowering (B) Lifting
DRAFT CONTROL LEVER
(IF APPLICABLE)
The draft function can be used for
the plow which is installed to the
lower link. (Lifting arm)
If the plow is applied with excessive
draft, the lifting arm is automatically
raised to reduce the draft and then
returned to its original. This is called
as “Draft Function”. The plowing
depth can be controlled by the soil
status by putting the draft control
lever into the “Deep” position to ac-
111
A
B
A
B
td2O428s
POSITION CONTROL LEVER
(1) Position Control Lever (2) Lock Bolt
(3) Lower Link
(A) Lowering (B) Lifting
111
22
A
B
A
B
3
3
33
td2O425s
The position control lever is used to
adjust the height of implements on
the 3-point hitch ends.
The implement attached to the lifting
arm can be lowered by pushing the
lever while the implement is raised
by pulling the lever.
In order to limit the lowering height of
implements, use the lock bolt (2) to
limit the operating range of the lever.
For detailed information, refer to “How
to drive” in Chapter 5.
