Daedong KIOTI DK4510 - Changing Front Axle Case OIL (N)

7
-
18

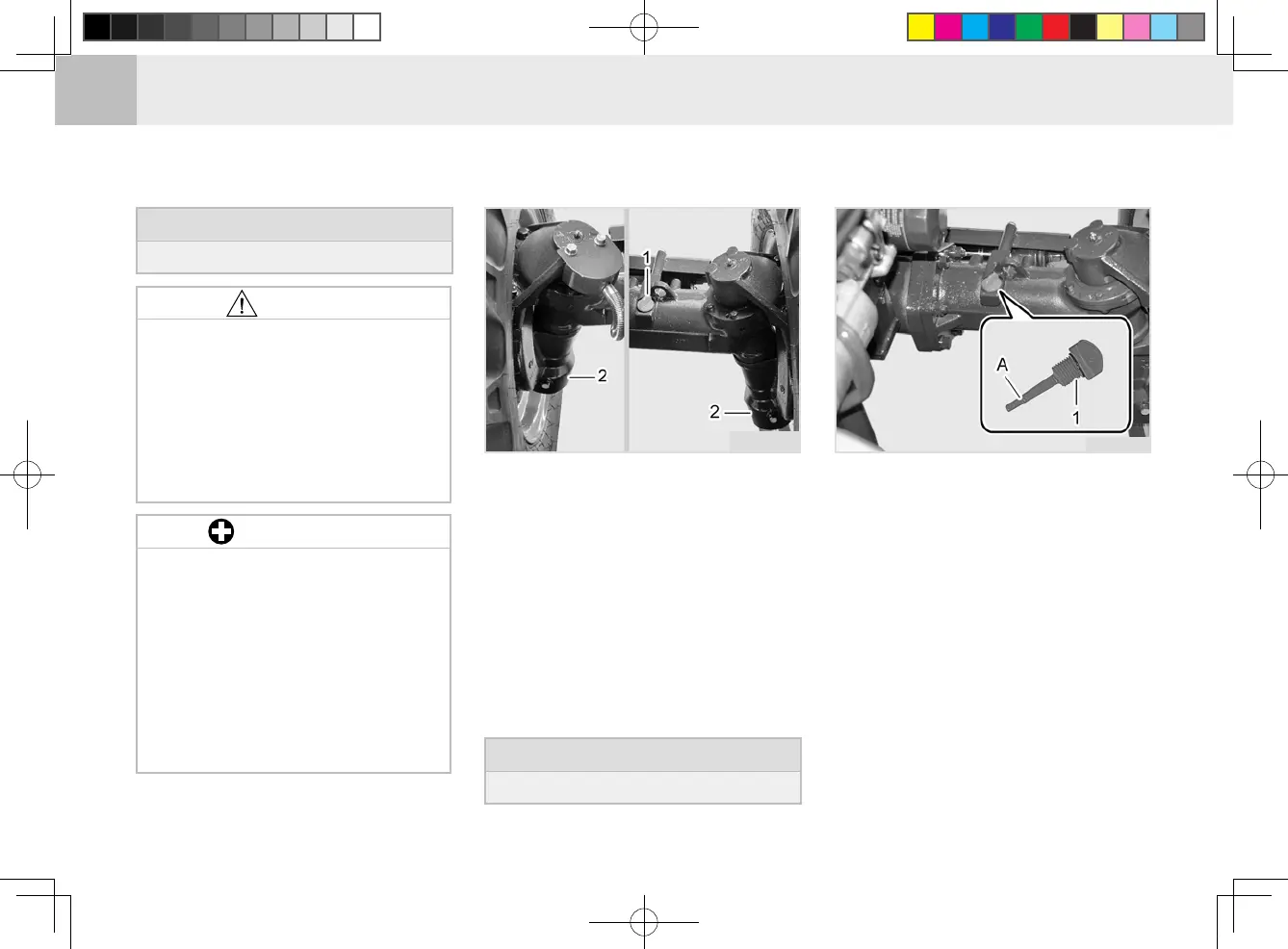

DK4510 / DK5010 / DK5510
(1) Oil Filler Plug (2) Drain Plug
1. Remove the drain plugs from the
front axle case (LH/RH) and front
axle support to drain oil.
2. After draining, reinstall the drain
plugs securely.
3. Remove the bleeding plug from the
front axle case and add oil through
the ller hole.
td2O714A
CHANGING FRONT AXLE CASE OIL (N)
IMPORTANT
To prevent serious damage to
the hydraulic system, use only
a KIOTI genuine lter.
Do not operate the tractor
immediately after changing
transmission fluid. Run the
engine at medium speed for a
few minutes to prevent dam-
age to the hydraulic system.
•
•
Oil Capacity
43 L (11.36 U.S.gal.)
CAUTION
To avoid injury:
Be sure to stop the engine
before changing the fluid or
replacing the lter.
Cool down the uid sufcient-
ly. You can get burnt by hot
uid.
•
•
4. Add oil while checking the oil level
with the dipstick attached to the
ller plug. (Refer to the instructions
for the lubrication system in Chap-
ter Maintenance.)
5. After adding oil, fit the filler plug
again.
6. Wait for 15 minutes and check the
oil level again. If the amount is in-
sufcient, add more oil.
(1) Oil Dipstick
(A) Upper Limit
td2O715A
Oil Capacity
5.2 L (1.4 U.S. gal.)
