FUNCTION DESCRIPTION AND OPERATING TIPS

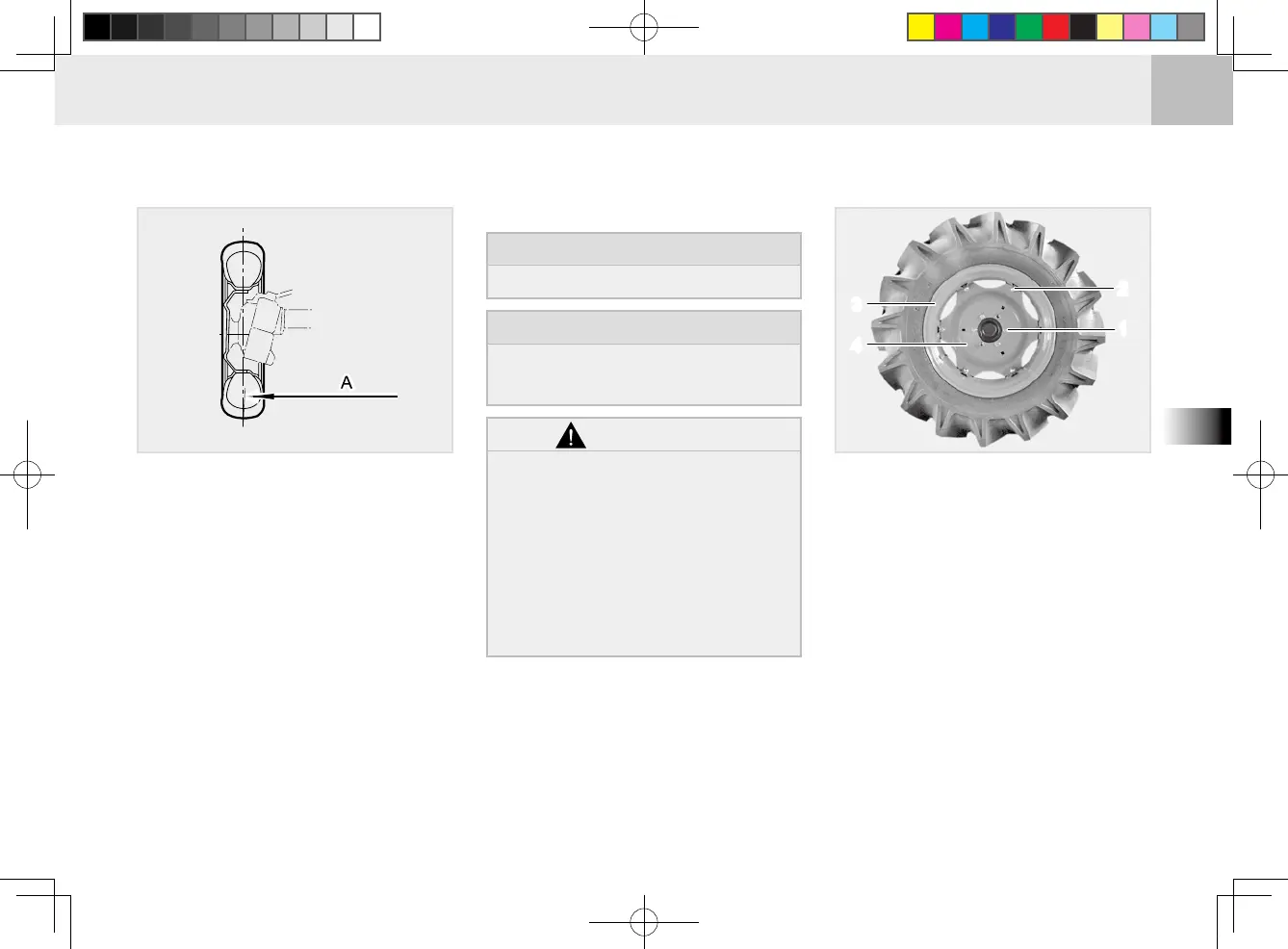

(A) Tread
Front tread can not be adjusted. If it
is necessary to adjust it, contact your
local KIOTI Dealer.
If it is damaged by unapproved modi-
cation, it will not be covered by war-
ranty.
WHEEL TORQUE AND DIRECTION
FRONT WHEEL INSTALLATION PATTERN
t85O535A
(1) Wheel bolt (2) Rim bolt
(3) Rim (4) Disc
REAR WHEEL INSTALLATION PATTERN
3
4
1
2
3
4
1
2
td2O458A
WHEEL INSTALLATION DIRECTION
For agricultural tires, make sure to
install them with their arrow marks
on their side pointing the front driving
direction.
The tire is correctly installed if the
tread mark “V” on the ground is
shown correctly, not up side down,
while the tractor is moving forward.
FRONT TIRE SPECS AND WHEEL
BOLT/NUT TORQUE
Tightening torque of wheel bolt (Nut)
196~225 N·m
144.6~166.3 lbf-ft
20 ~ 23 kgf·m
WARNING
Use tires approved by KIOTI
only.
Assemble the tire as shown in
the gure.
Contact your local KIOTI Deal
-
er if it is necessary to change
the tire specication or instal-
lation method.
•
•
•
Tire size (Agri)
8-16 / 6PR
