Turning the knob counterclockwise
increases the lowering speed while
turning it clockwise decreases the
lowering speed. Also, turning it clock-
wise to its end can x the implement
to a certain position.

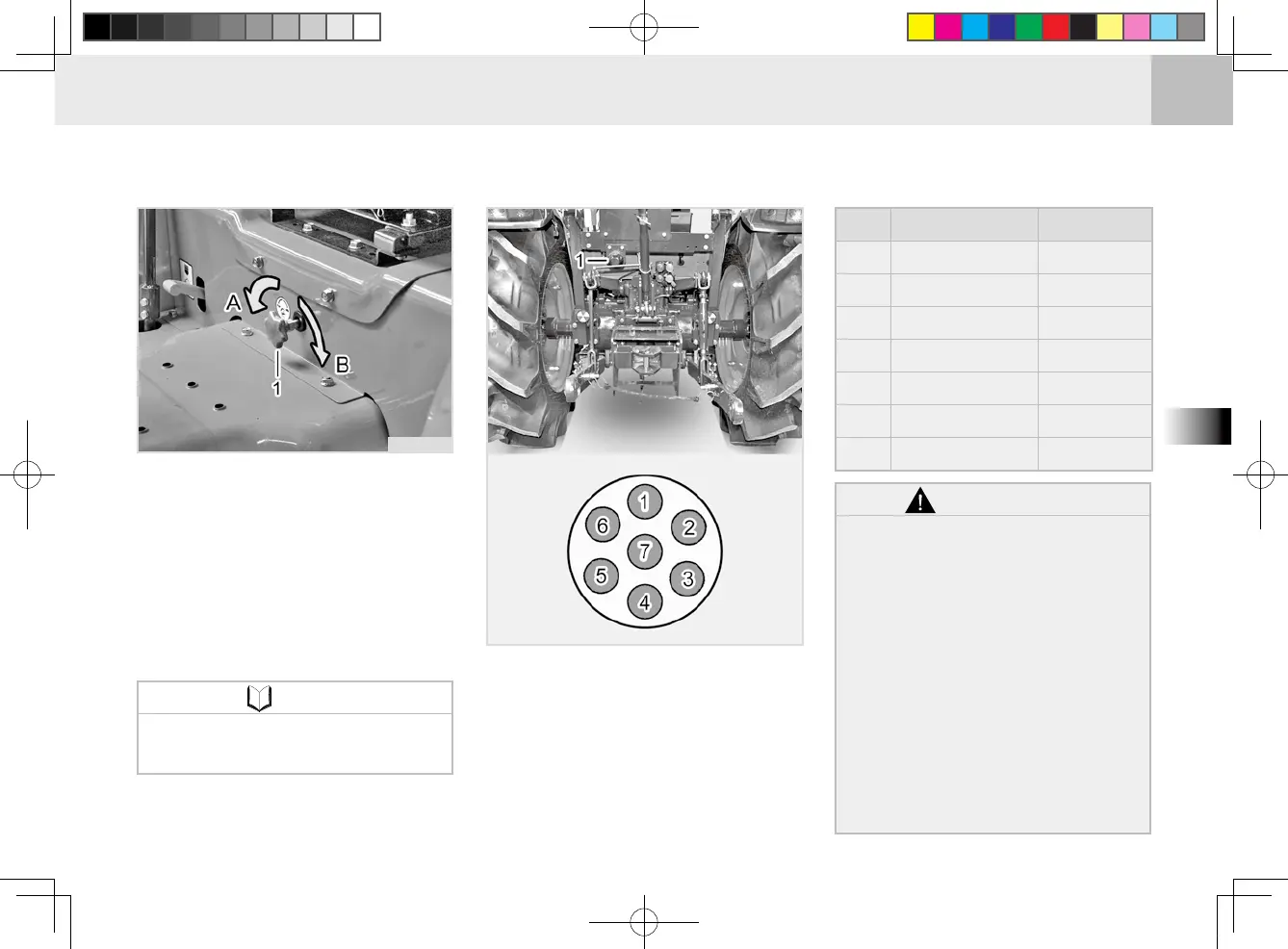

(1) Lowering Speed Control Knob
(A) High Speed (B) Low Speed
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB
NOTE
This knob does not control the
lifting speed of the lift arm.
•
td2O462A
7-PIN SOCKET (OPTIONAL)
The 7-pin socket is installed on the
rear left side of the tractor.
This supplies power to the brake
lamps, turn signal lamps, and posi-
tion lamps of the trailer.
(1) Power Connector
No. Circuit Color of wire
1 Turn Signal (LH) Y
2 Spare L
3 Ground W
4 Turn Signal (RH) G
5 Tail light (RH) Br
6 Stop lamp R
7 Tail light (LH) B
WARNING
When driving on a road with an
implement which has exterior
lamps, such as a trailer, make
sure to turn on those lamps by
connecting them to the 7-pin
socket in order to prevent an ac-
cident.
Make sure to check for proper op-
eration after connecting the 7-pin
socket to the trailer. It may not
operate depending on the trailer
specications. Consult your local
KIOTI Dealer for this issue.
•
•
