DK4510 / DK5010 / DK5510

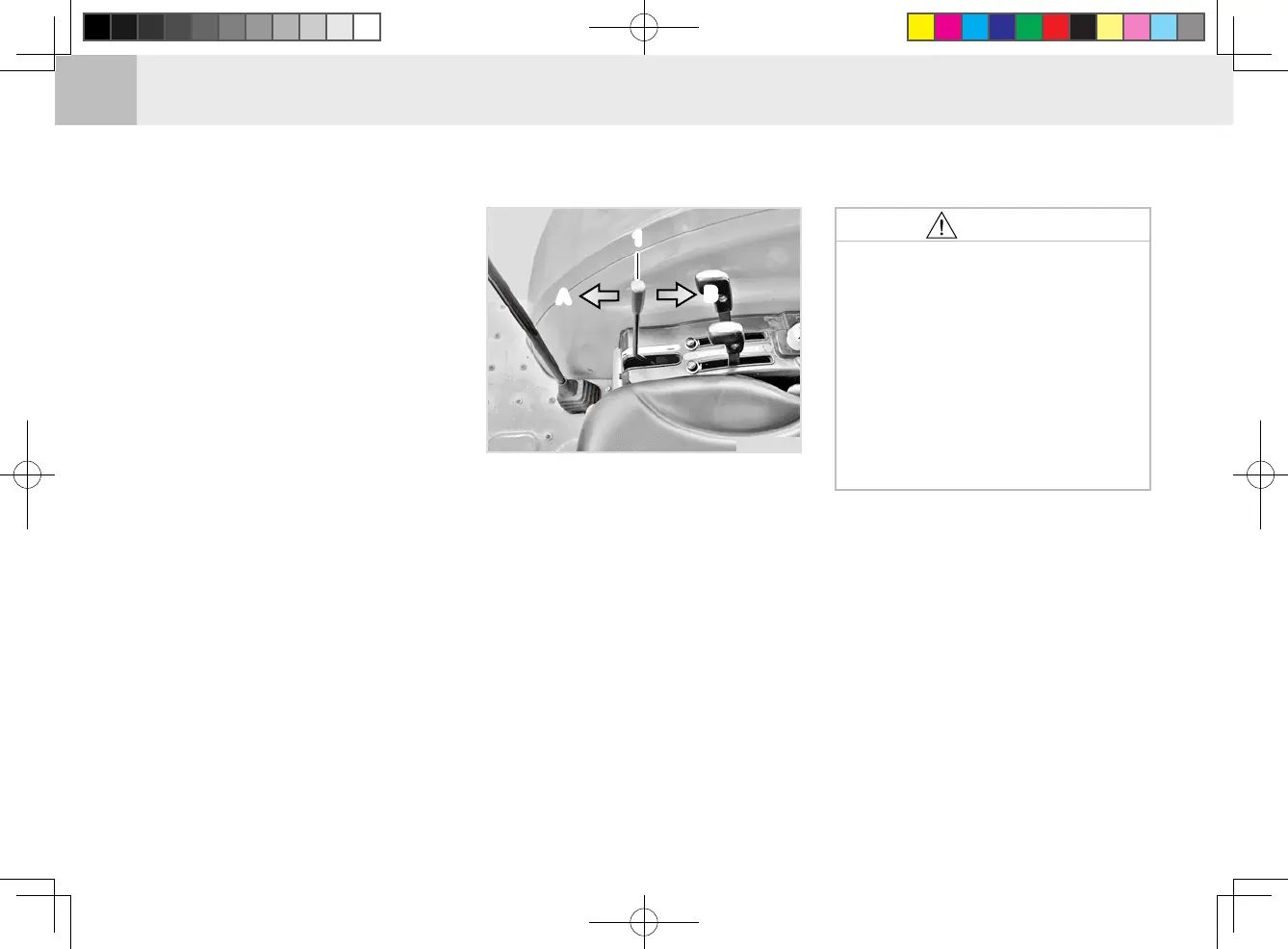

(1) Lifting / Lowering lever
(A) Lowering (B) Lifting
ONE-TOUCH LIFTING/LOWERING
LEVER (IF APPLICABLE)
This lever is designed to ensure con-
venience of an operator during work.
When it needs to lift a rear imple-
ment while working after setting its
position as desired with the position
control lever, pull this lever to the lift-
ing (b) position to lift the implement
to the upper limit position. Pushing
it to the lowering (a) position lowers
the implement to the preset lower
limit position. Therefore, there is no
need to reset the height of the imple-
ment with the position control lever.
111
A
B
A
B
td2O426s
CAUTION
After stopping the engine,
make sure that the one-touch
lever is set in the lowering po-
sition. Otherwise, an accident
may occur to a person work-
ing behind the tractor.
If it is inevitable to set the le
-
ver in the Lifting position, fix
the lever with the position lock
bolt.
•
•
tivate the draft function at mid load
and putting the lever into the “Shal-
low” position to activate the draft
function at light load.
For detailed information, refer to “How
to drive” in Chapter 5.
