Installation and Connection 6

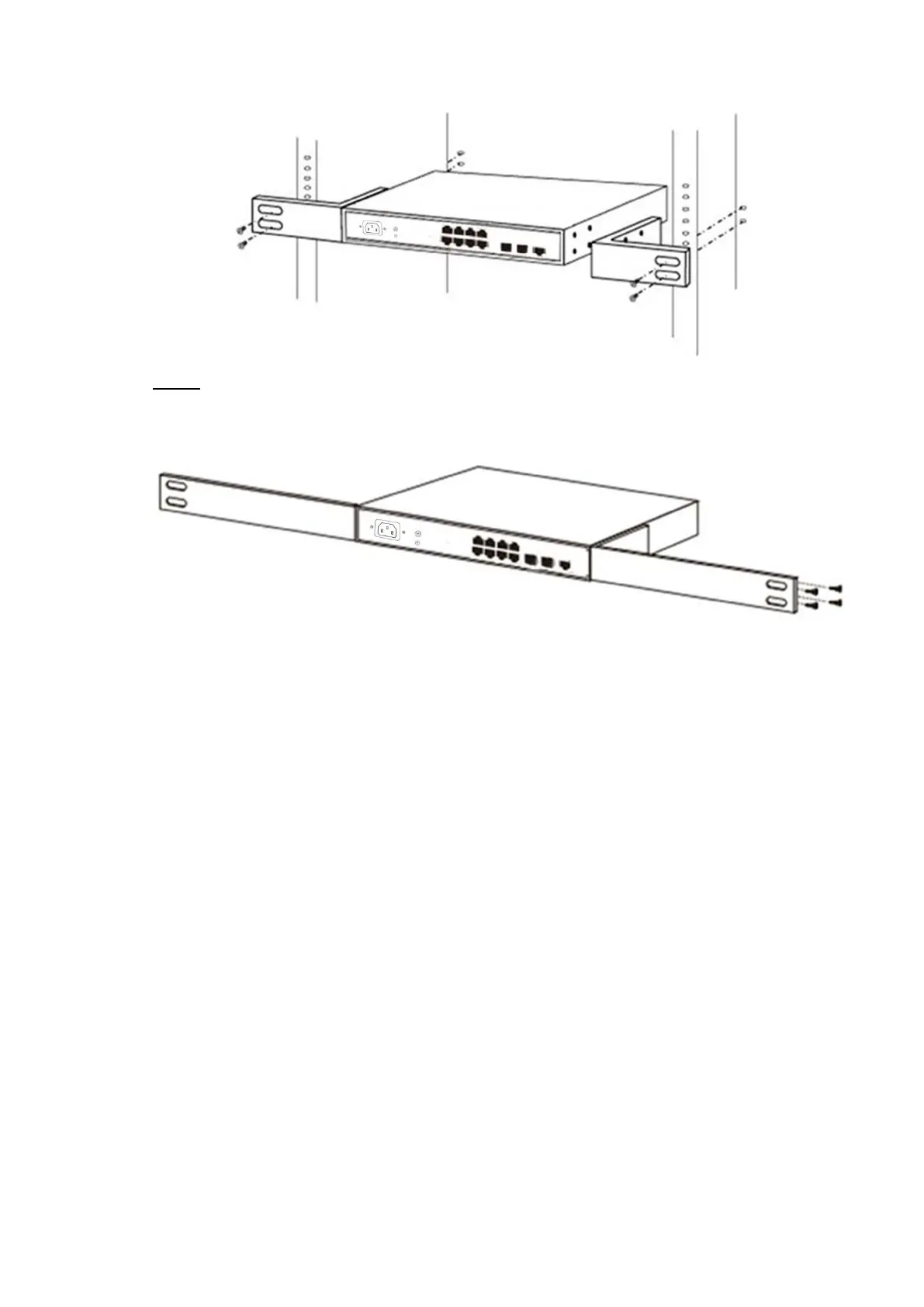

Bracket installation Figure 2-1
Use the screws provided with the equipment rack to mount the Switch on the rack and Step 2
tighten it.
Rack installation Figure 2-2
2.1.3 Power on the Switch
The Switch is powered on by the AC 100-240V 50/60Hz internal high-performance power
supply. Please follow the next tips to connect:
AC Electrical Outlet:
It is recommended to use single-phase three-wire receptacle with neutral outlet or
multifunctional computer professional receptacle. Please make sure to connect the metal
ground connector to the grounding source on the outlet.
AC Power Cord Connection:
Connect the AC power connector in the back panel of the Switch to external receptacle with the
included power cord, and check the power indicator is ON or not. When it is ON, it indicates the
power connection is OK.
2.2 Connect Computer (NIC) to the Switch
Please insert the NIC into the computer, after installing network card driver, please connect one
end of the twisted pair to RJ-45 jack of your computer, the other end will be connected to any
RJ-45 port of the Switch, the distance between Switch and computer is around 100 meters.
Once the connection is OK and the devices are power on normally, the LINK/ACT/Speed status
indicator lights corresponding ports of the Switch.
