Switch Configuration 43

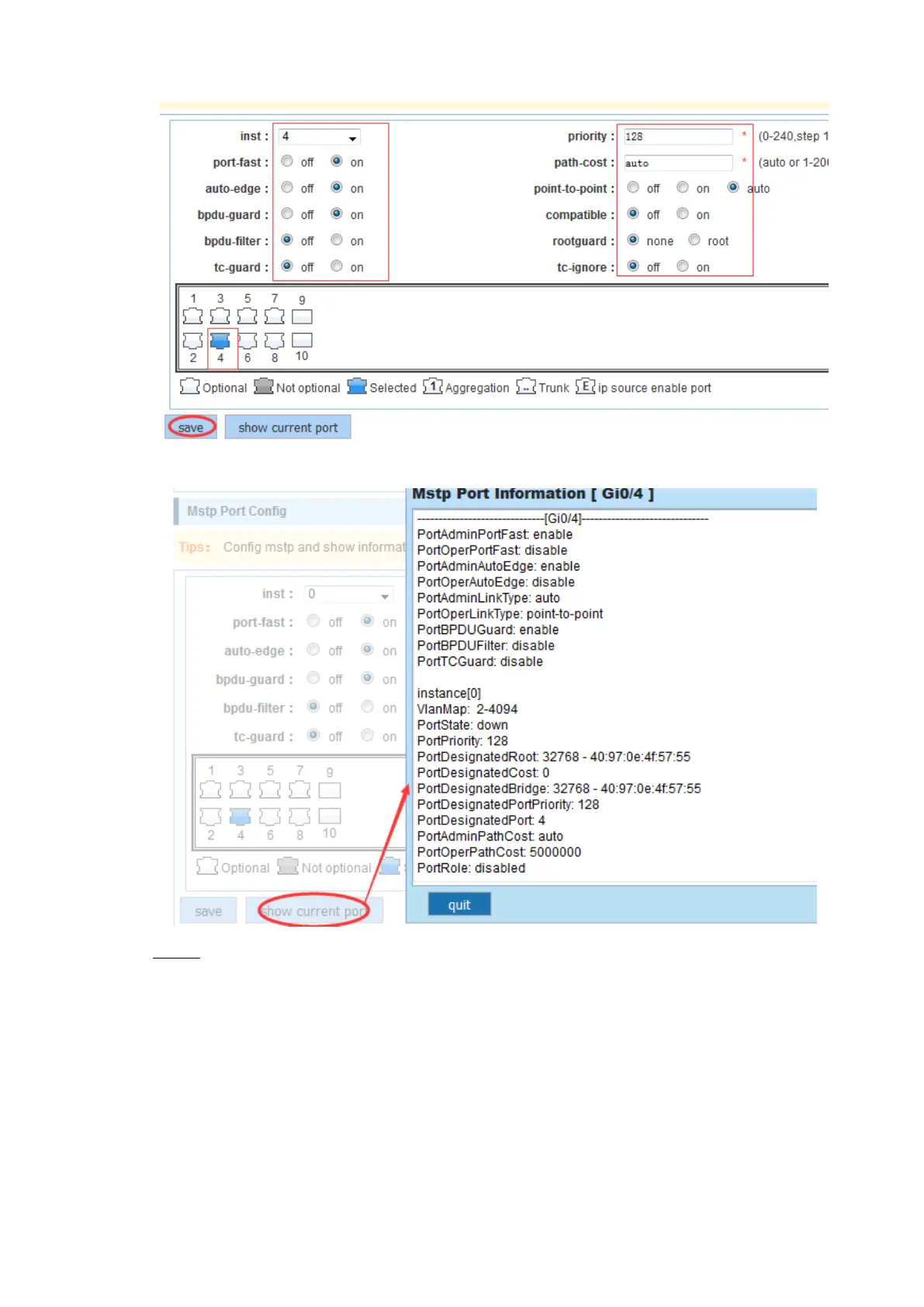

Configuration example I Figure 4-77
Configuration example II Figure 4-78
Set MSTP has launched port configuration, select the created instance, set priority Step 2
(port configuration is not online, on-line configuration will only take effect, can click on
the "view the current configuration" button to view the configured completed)
4.7 DHCP relay
In the navigation bar to select "DHCP relay", you can set to the DHCP relay and option82.
