Switch Configuration 77
4.12.4 Config management
4.12.4.1 Import/Export Config
In the navigation bar to select “SYSTEM>config management>Import/Export Config", can
import and export configuration files, the backup file. The following picture:

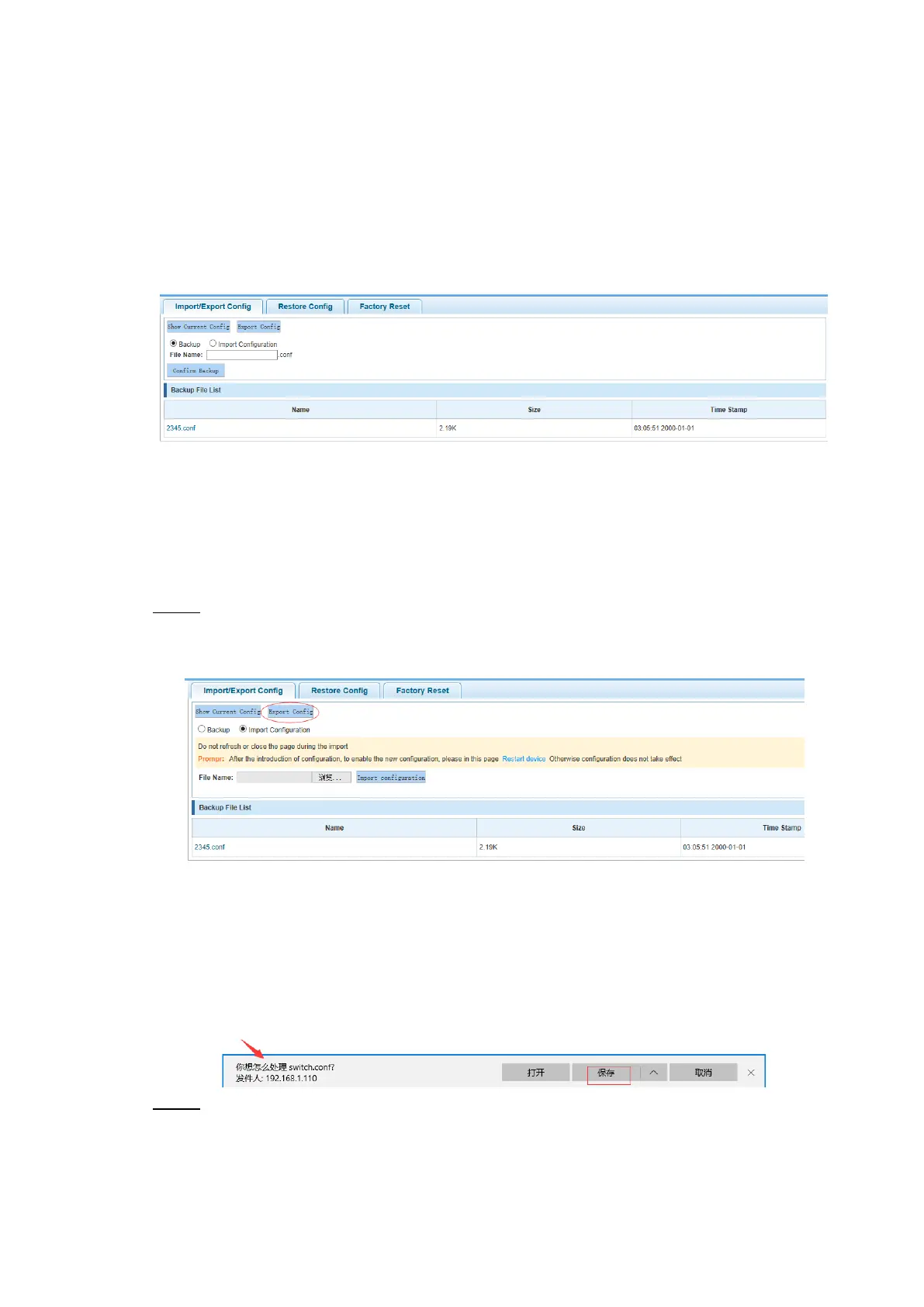

Figure 4-159
【Instruction】
Import process cannot be closed or refresh the page, or import will fail!
After the introduction of configuration, to enable the new configuration, please in this page
Restart device Otherwise configuration does not take effect.
【Configuration Example】
In the configuration first save the page, click save configuration to save the current Step 1
configuration, then export the configuration.
Configuration example I Figure 4-160
Import configuration. Step 2
