Dahua Technology DH-XVR1B16H User Manual

User’s Manual
239
3G/4G

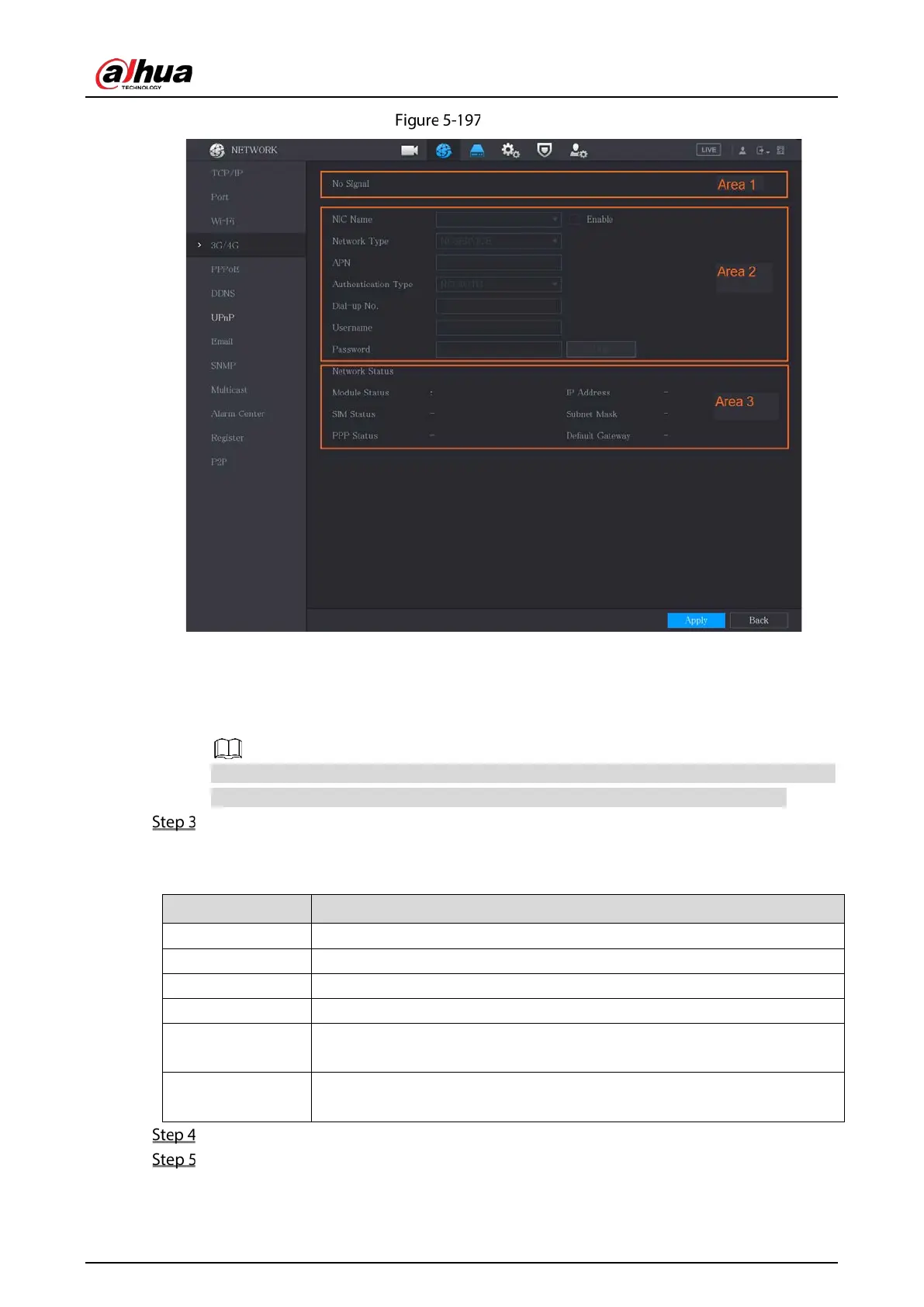

The 3G/4G interface is consisted of three areas:
 Area 1: Displays the signal strength.
 Area 2: Displays the module configurations.
 Area 3: Displays the connection state.
The information of Area 2 will display after the 3G/4G module is connected; while the
information of Area 1 and Area 3 will display only after the 3G/4G function is enabled.
The Device starts identifying the wireless module and displays the recognized information for
the parameters in Area 2.
Table 5-60 3G/4G parameters
Parameter
Description
NIC Name Displays the name of Ethernet card.
Network Type Displays the network type. Different type represents different supplier.
APN Displays the default APN number.
Dial-up No. Displays the default dial No.
Authentication
Type
Authentication mode. You can select
PAP
,
CHAP
, or
NO_AUTH
.
Username,
Password
Enter the username and password for authentication.
Select the Enable check box.
Click Dial to start connecting.
After the connection is established, the result is displayed in the Wireless Network area.

Dahua Technology DH-XVR1B16H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	16 channels
Multi-display modes	4, 8, 9, 16
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports	16
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	236 mm
Width	260 mm
Height	48 mm
Weight	860 g
