Main menu

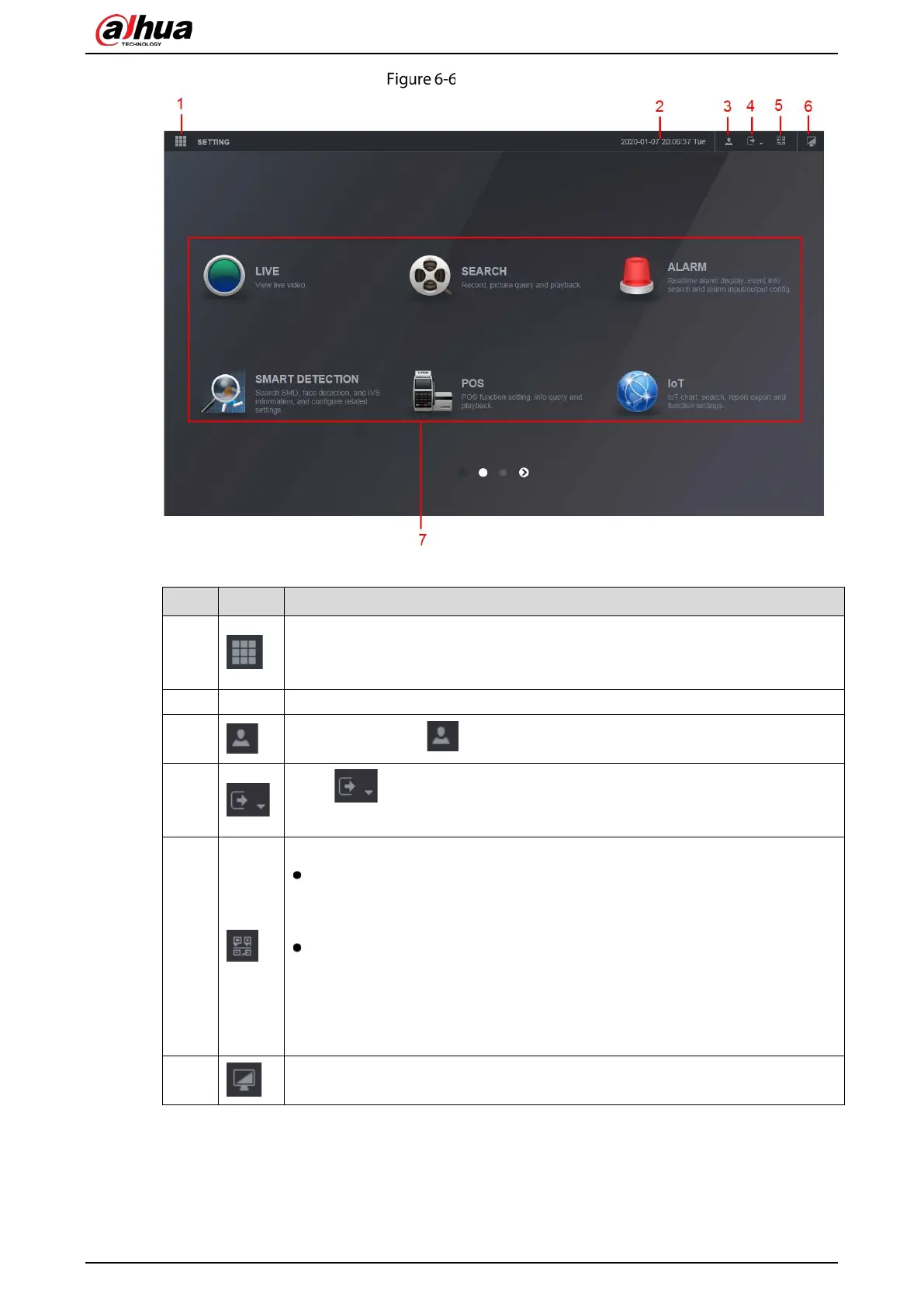

Table 6-1 Main menu parameters
No.
Icon
Description
1
Includes configuration menu through which you can configure camera settings,
network settings, storage settings, system settings, account settings, and view
information.
2 None Displays system date and time.
3
When you point to , the current user account is displayed.
4
Click , select
Logout
,
Reboot
, or
Shutdown
according to your actual
situation.
5
Displays Cell Phone Client and Device SN QR Code.
Cell Phone Client: Use your mobile phone to scan the QR code to add the
device into the Cell
Phone Client, and then you can start accessing the
Device from your cell phone.
Device SN: Obtain the Device SN by scanning the QR code. Go to the P2P
management platform and add the Device SN into the platform. Then you
can access and manage the device in the WAN. For details, refer to the P2P
operation manual. You can also configure P2P function
in the local
configurations. See "5.1.4.5 Configuring P2P Settings."
6 Displays the web main menu.

Dahua Technology DH-XVR1B16H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	16 channels
Multi-display modes	4, 8, 9, 16
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	3840 x 2160 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	3840x2160, 1920×1080, 1280×1024, 1280×720
BNC input ports	16
BNC output ports	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	236 mm
Width	260 mm
Height	48 mm
Weight	860 g
