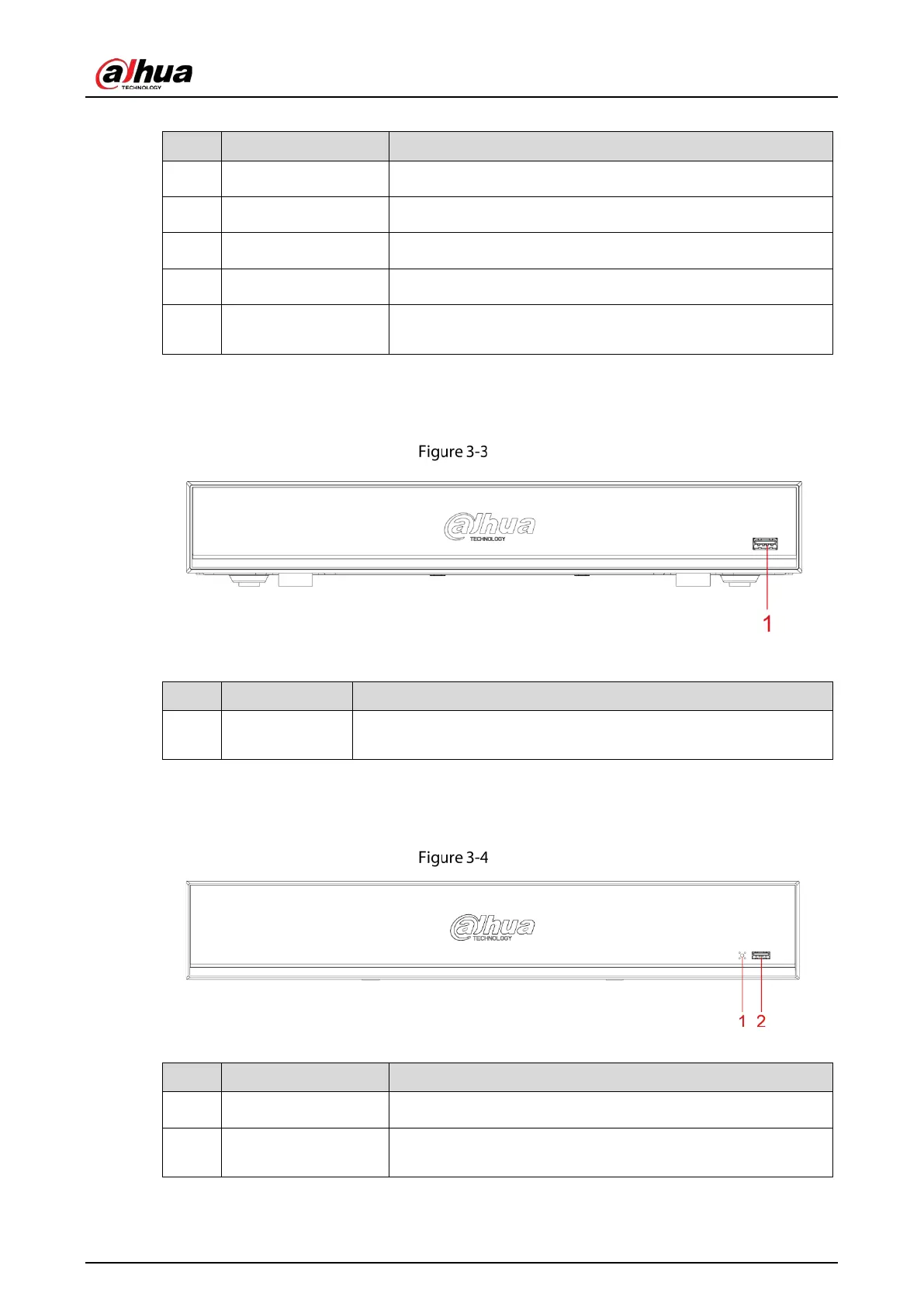

User's Manual
15
Table 3-2 Front panel description
No.
Indicator/Port
Function
1 Status indicator light Glows blue when the device is working properly.
2 HDD Glows blue when HDD status is abnormal.
3 NET Glows blue when network status is abnormal.
4 POWER Glows blue when the power is connected properly.
5 USB port
Connects to the external devices such as keyboard, mouse, and
USB storage device.
3.1.3 DHI-XVR7108HE-4KL/DHI-XVR7116HE-4KL
Front panel
Table 3-3 Front panel description
No.
Port Name
Function
1 USB port
Connects to peripheral devices such as USB storage device,
keyboard and mouse.
3.1.4 DHI-XVR7416L-4KL
Front panel
Table 3-4 Front panel description
No.
Port Name
Function
1 IR receiver Receives infrared signal from remote control.
2 USB port
Connects to peripheral devices such as USB storage device,
keyboard, and mouse.
