User's Manual
21

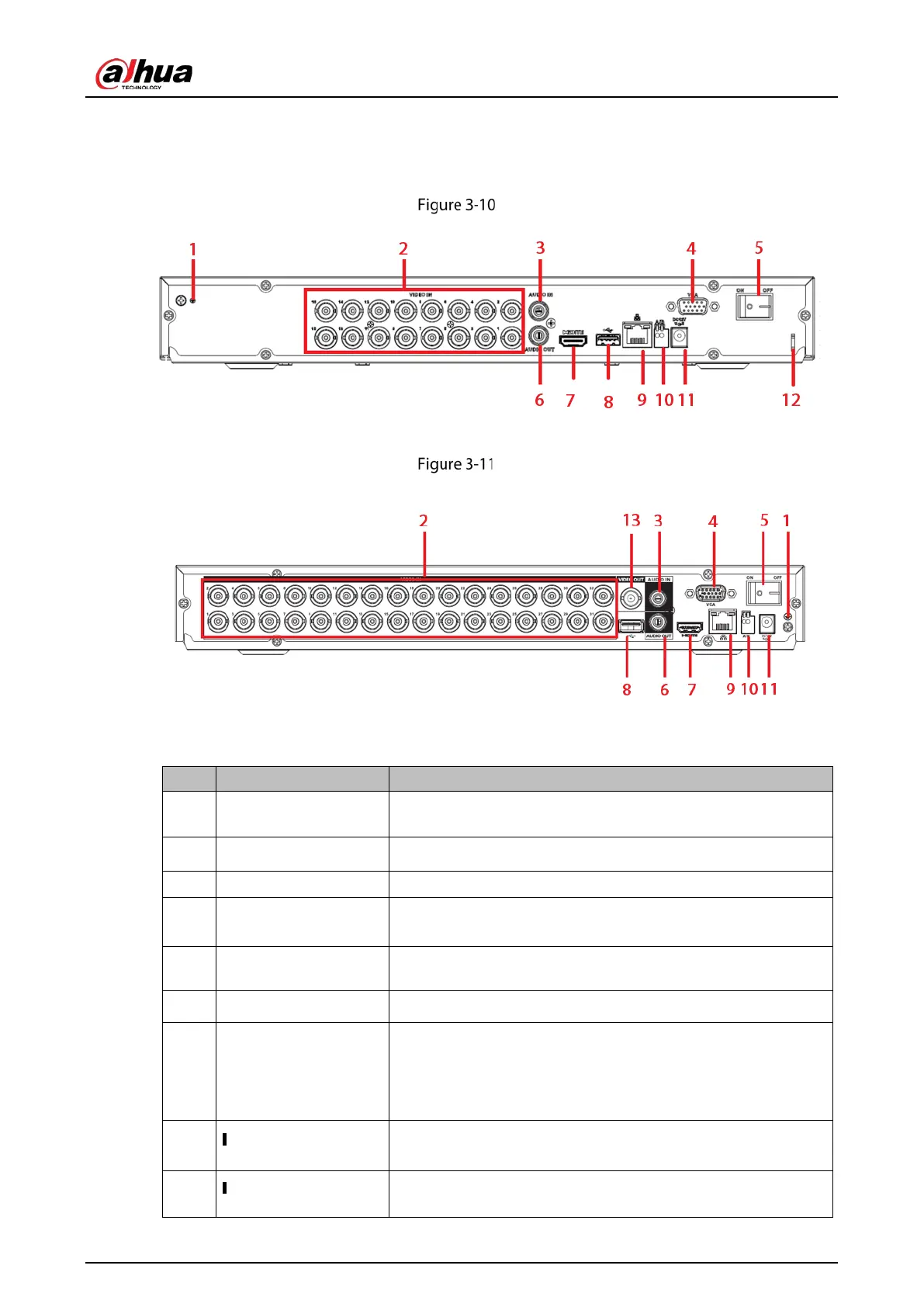

3.2.5 DHI-XVR5216AN-S2/DHI-XVR5232AN-S2
The rear panel of DHI-XVR5216AN-S2 is as follows.
Rear panel
The rear panel of DHI-XVR5232AN-S2 is as follows.
Rear panel
Table 3-10 Rear panel description
No.
Name
Note
1 GND Alarm input ground port.
2 Video input port Connect to analog camera, video input signal.
3 Audio input port Connect to audio input device such as speaker.
4
VGA video output
port
VGA video output port. Output analog video signal. Can
connect to the monitor to view ananlog video output.
5 Power switch Power on/off button.
6 Audio output port Connect to video output device such as sound box.
7
High Definition Media
Interface
High definition audio and video signal output port. It transmits
uncompressed high definition video and multiple-channel
data to the HDMI port of the display device.
8
Connect to USB storage device, mouse, burning DVD-ROM and
etc.
9 100 or 1000M Ethernet port.
