Dahua 41HS-W-S2 Series User Manual

99
Name
Function
+12V
/
+12V power output port. It can provide the power to
some peripheral devices such as the camera or the
alarm device. Please note the supplying power
shall be below 1A.
Network port
One 10M/100M/1000Mbps self-adaptive Ethernet
port. Connect to the network cable.
eSATA
eSATA port
External SATA port. It can connect to the device of
the SATA port. Please jump the HDD when there is
peripheral connected HDD.
USB2.0 port
USB2.0 port. Connect to mouse, USB storage
device, USB burner and etc.
RS-232
RS-232 debug
COM.
It is for general COM debug to configure IP address
or transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the
display device. HDMI version is 1.3.
VGA
VGA video output
port
VGA video output port. Output analog video signal.
It can connect to the monitor to view analog video.
PoE
PORTS
16 PoE ports
Built-in Switch. Support PoE. The 16 PoE ports
series products supports total 150W power. One
PoE port max supports 15W.

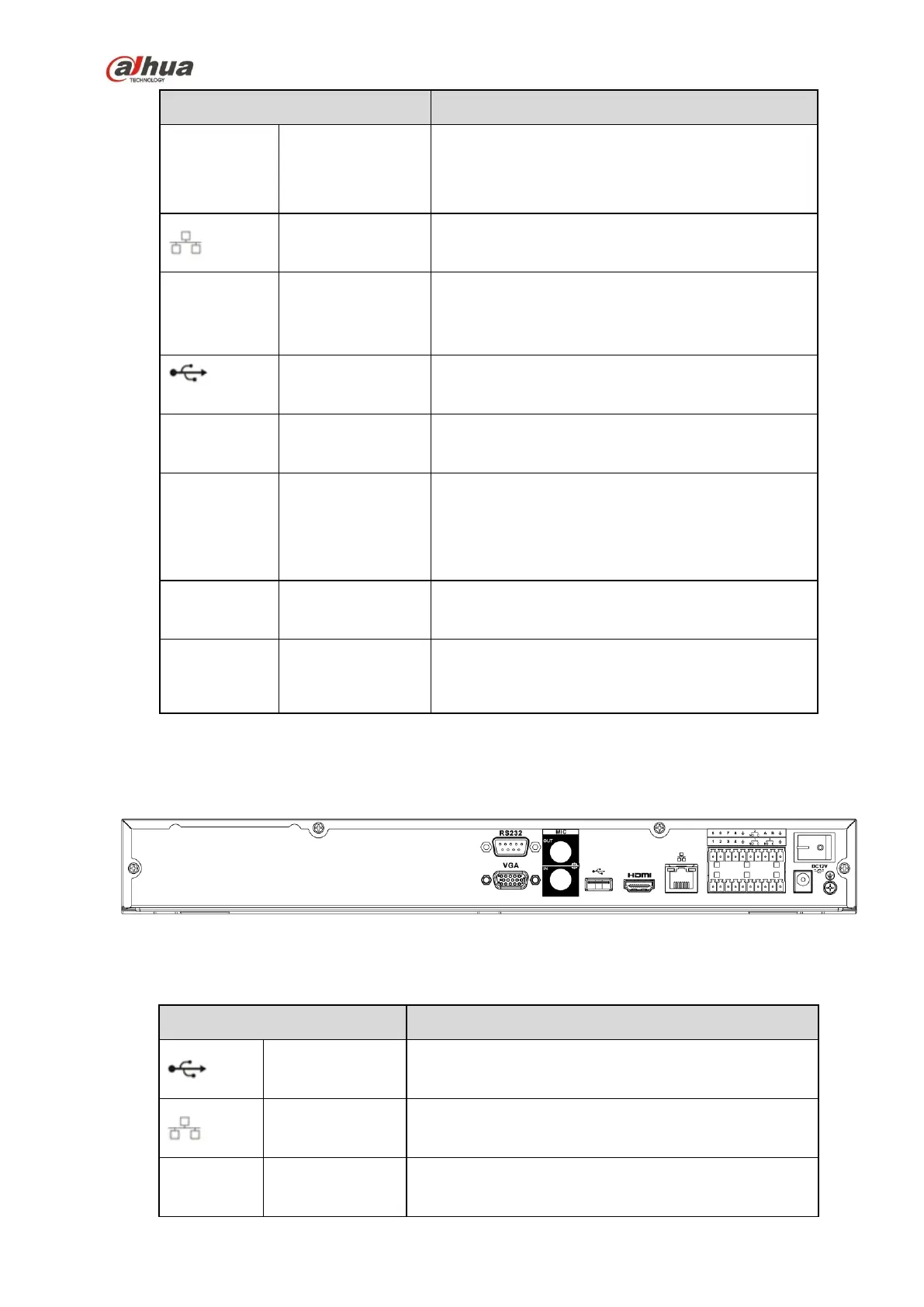

2.2.16 NVR72 Series
The NVR72 series rear panel is shown as below. See Figure 2-55.
Figure 2-55
Please refer to the following sheet for detailed information.
Name
Function
USB2.0 port
USB2.0 port. Connect to mouse, USB storage device,
USB burner and etc.
Network port
10M/100M/1000Mbps self-adaptive Ethernet port.
Connect to the network cable.
RS-232
RS-232 debug
COM.
It is for general COM debug to configure IP address or
transfer transparent COM data.
