147

Figure 3-6

3.5.7 NVR22-S2/22-P-S2/22-8P-S2 Series

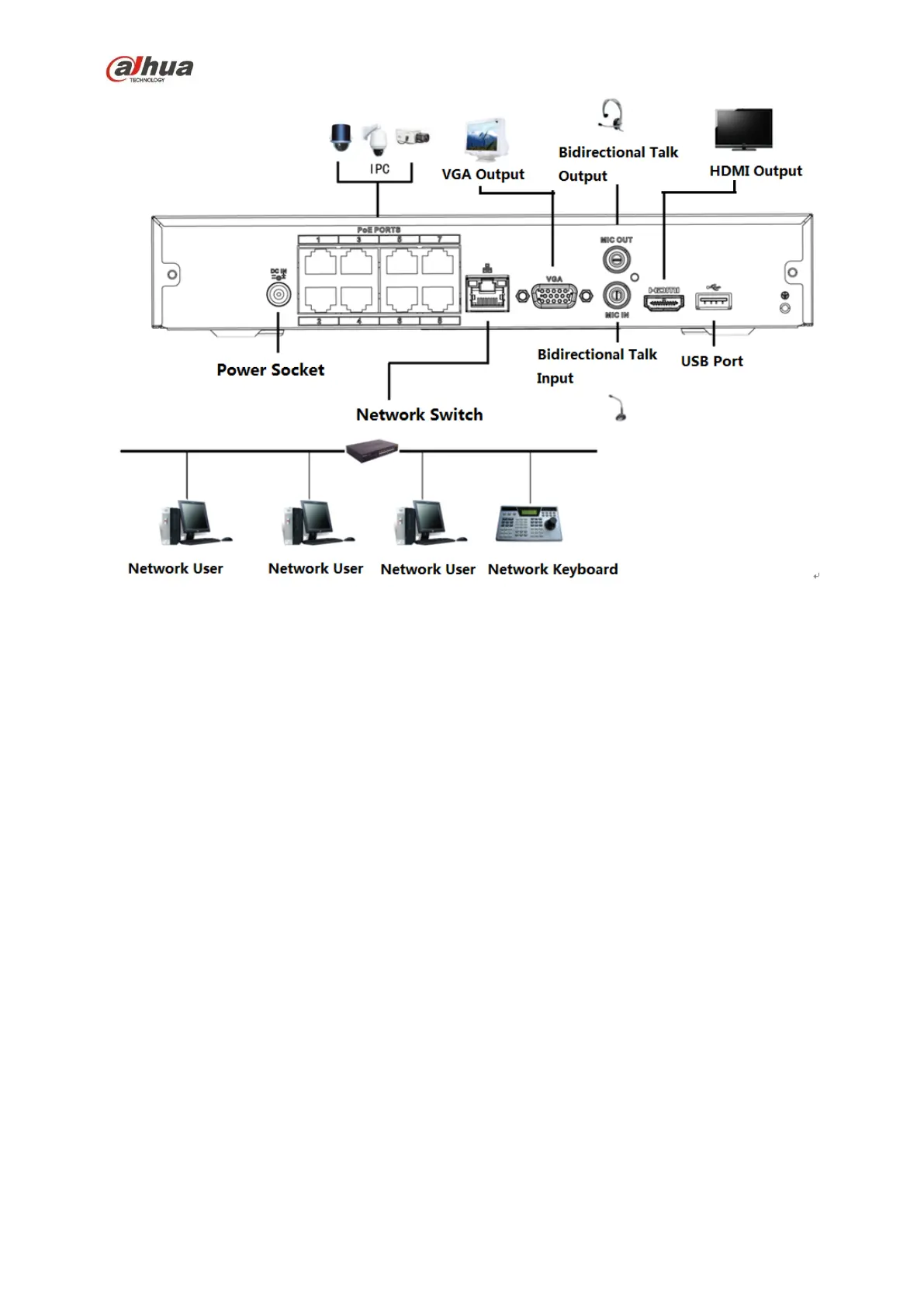

Please refer to Figure 3-7 for connection sample.

Please note the following figure is based on the NVR22-8P-S2.
