154

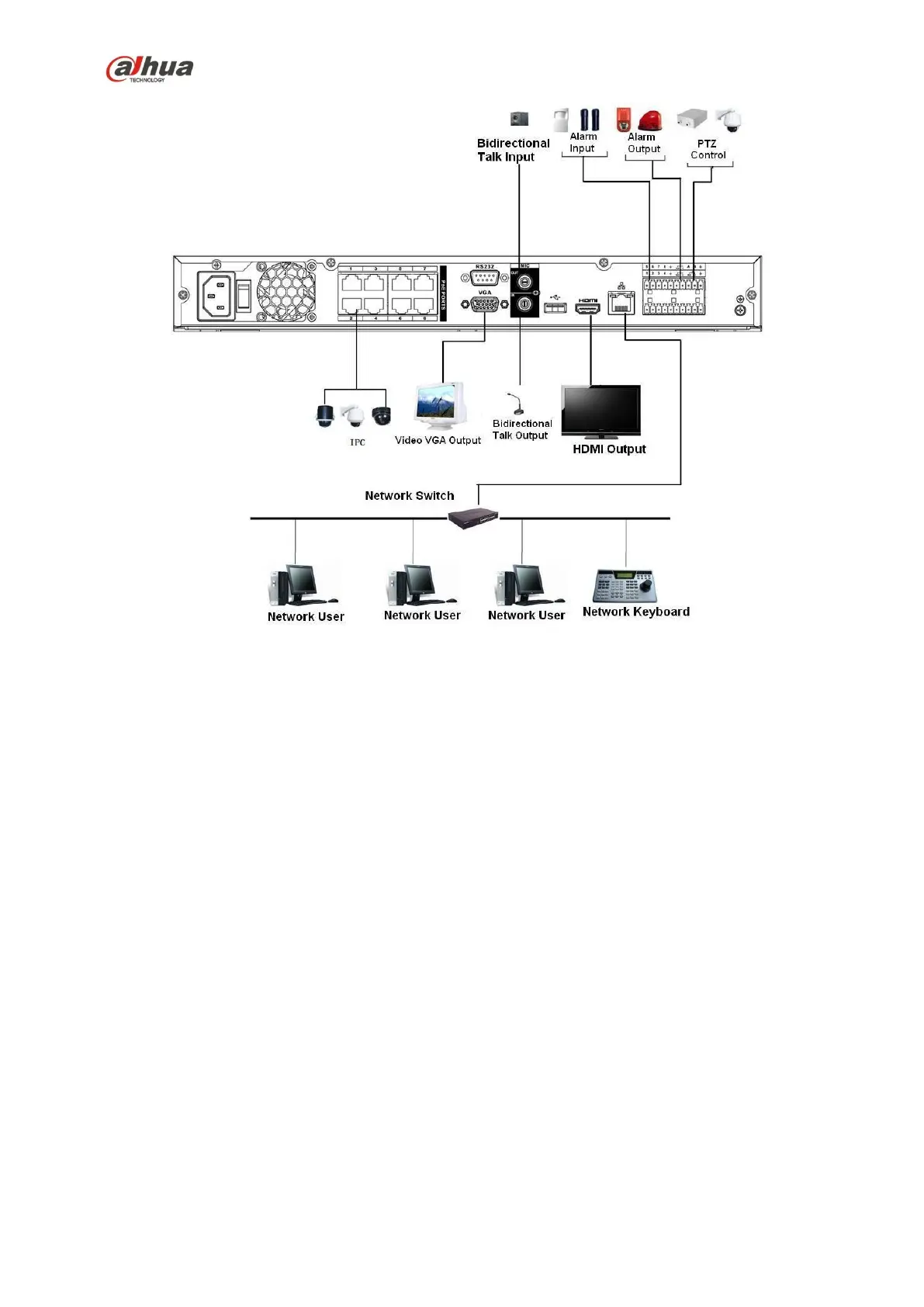

Figure 3-16
3.5.17 NVR74 Series
Please refer to Figure 3-17 for connection sample.
The following figure is based on the 74 series product.
