In real-time monitor mode it works as left/right direction key.
Playback mode, counter clockwise to forward and clock wise to
backward.
Up/down direction key.
Playback mode, turn the inner dial to realized frame by frame
playback. (Only applies to some special versions.)
To connect USB storage device, USB mouse.
Remote control
indicator light
Remote control indicator light
If there is Fn indicator light, current status indicator light is null.
For 4/8/16-channel series product.
The corresponding channel light becomes on when system is
recording.
For 32/64-channel series product:
When the light flashes slowly, it means the corresponding
channel of 1-16 channel is recording now (Such as channel 1).
When the light flashes fast, it means the corresponding channel
of 17-32 channel is recording now (Such as channel 17)
When the light becomes on, It means the corresponding 2
channels are recoding now (Such as channel 1 and channel 17.).
The channel indictor light here does not show the status of
the 33-64-channel.
It is to receive the signal from the remote control.
2.1.11 NVR78-RH Series
The front panel is shown as below. See Figure 2-13.

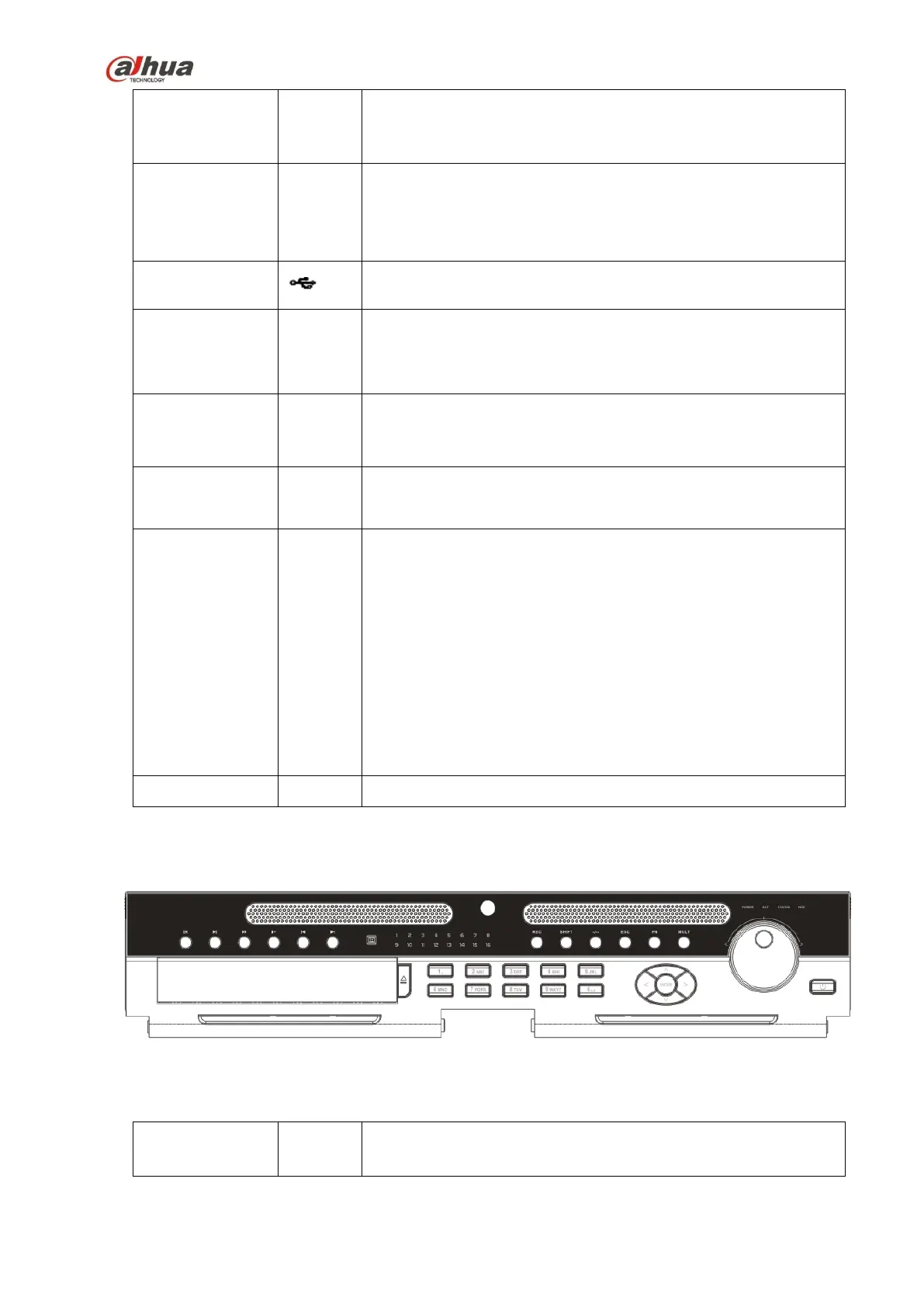

Figure 2-13
Please refer to the following sheet for front panel button information.
To Next Page
