143
3.5.2 NVR11/11-P/41/41-P/41-8P/41-W/21-S2/21-P-S2/21-8P-S2//41-4KS2/41-P-4KS2/4
1-8P-4KS2 Series

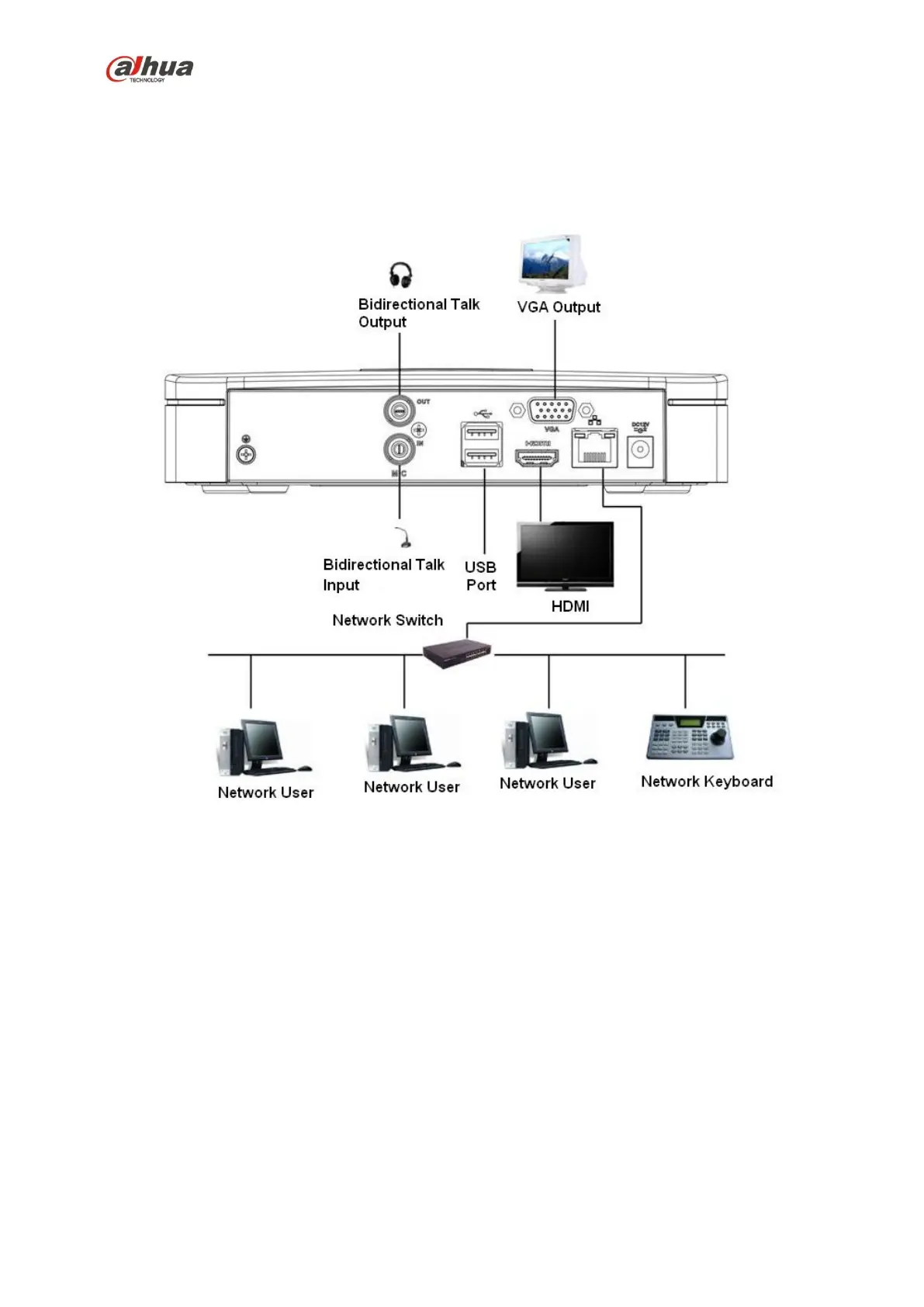

Please refer to Figure 3-2 for connection sample.
Here we take NVR41 as an example.
Figure 3-2
3.5.3 NVR11H/11H-P/41H/41H-P/41H-8P Series
Please refer to Figure 3-3 for connection sample.
Here we take NVR41H as an example.
