177
Figure 4-25
4.6.2 Short-Cut Menu

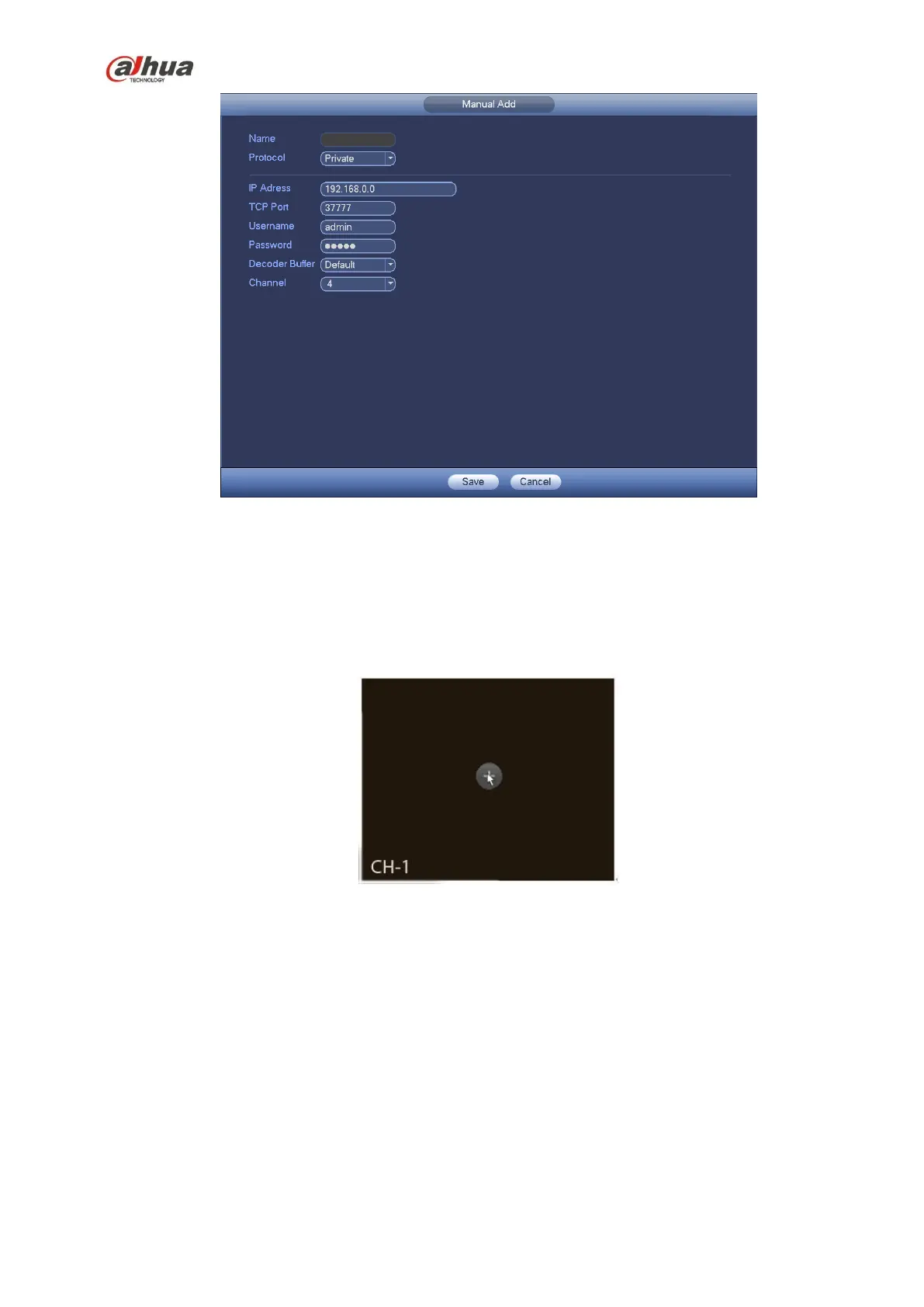

In the preview interface, for the channel of no IPC connection, you can click the icon “+” in the centre of
the interface to quickly go to the registration interface (Figure 4-24.). See Figure 4-26.
Figure 4-26
4.6.3 Image
From main menu->setting->camera->image, you can see the image interface is shown as below. See
Figure 4-27.
Channel: Select a channel from the dropdown list.
Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The default
value is 50. The larger the number, the strong the color is. This value has no effect on the general
brightness of the whole video. The video color may become too strong if the value is too high. For
the grey part of the video, the distortion may occur if the white balance is not accurate. Please note
the video may not be attractive if the value is too low. The recommended value ranges from 40 to 60.
