Dahua 41HS-W-S2 Series User Manual

122
Name
Function
USB port
USB port. Connect to mouse, USB storage device,
USB burner and etc.
RS-232
RS-232 debug
COM.
It is for general COM debug to configure IP address or
transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output port. It
transmits uncompressed high definition video and
multiple-channel data to the HDMI port of the display
device. HDMI version is 1.4.
VGA
VGA video
output port
VGA video output port. Output analog video signal. It
can connect to the monitor to view analog video.
PoE
PORTS
/
Bult-in Switch. Support PoE.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.29 NVR44-4KS2/44-16P-4KS2

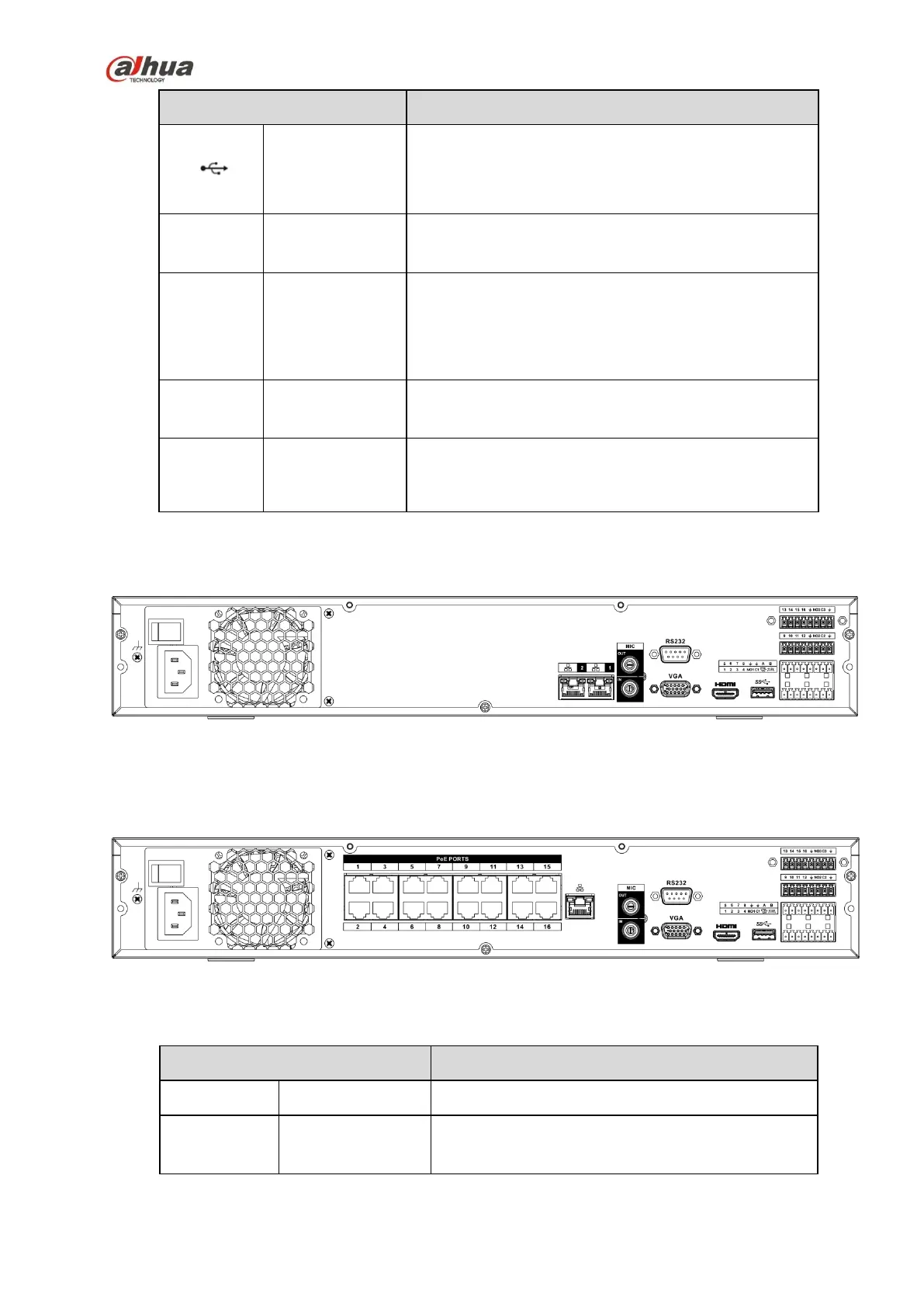

The NVR44-4KS2 series rear panel is shown as below. See Figure 2-76.
Figure 2-76
The NVR44-16P-4KS2 series rear panel is shown as below. See Figure 2-77.
Figure 2-77
Please refer to the following sheet for detailed information.
Name
Function
Power switch
/
Power on-off button
Power input
port
/
AC90V~264V-12V12.5A/-53V2.83A
