27

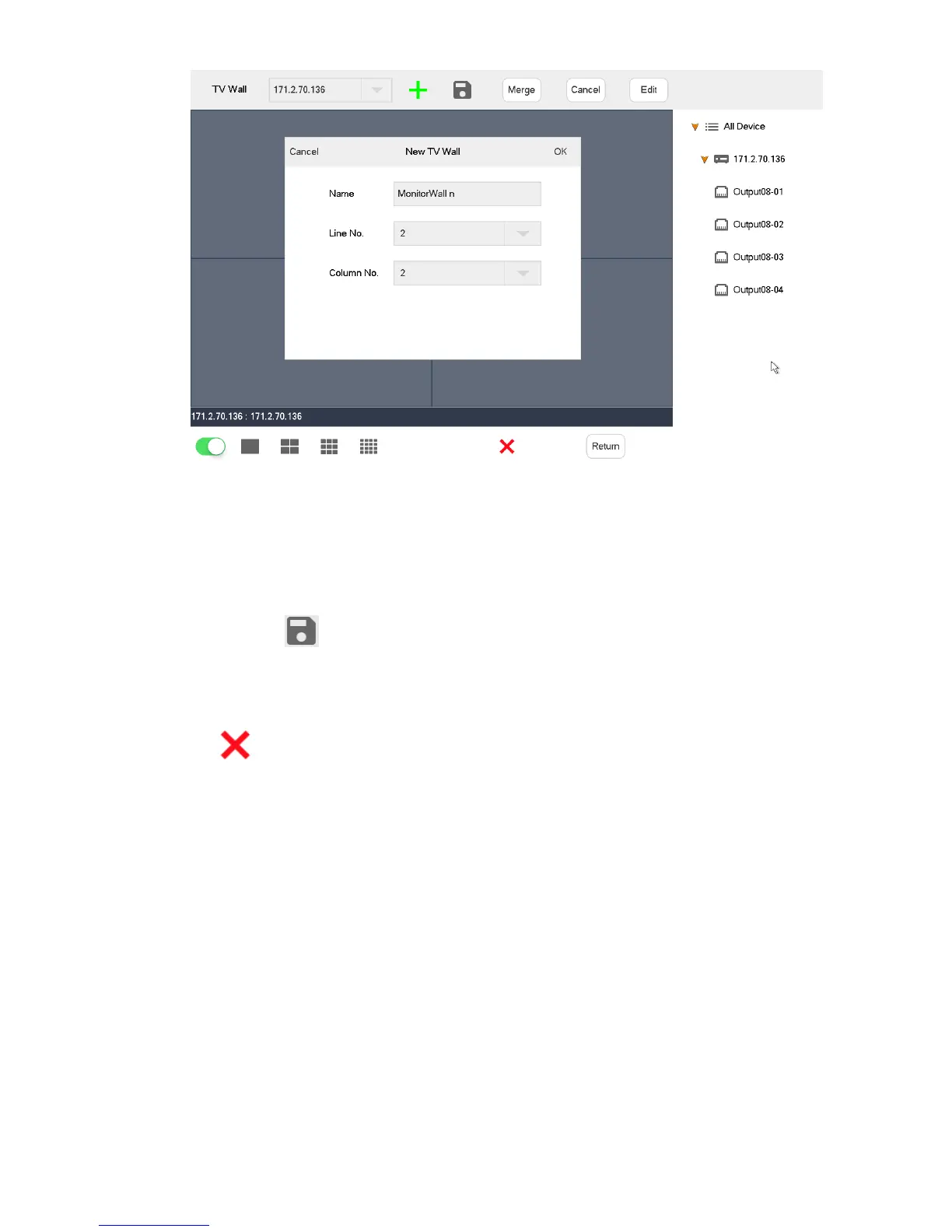

Figure 5-11
Step 2 Enter the name, select line no. and column no., and then click “OK”.
Step 3 Drag decoding channels in the right into the screen, so as to bond corresponding
relations.
Step 4 (Optional) Select two or more screens, click “Merge” to merge them into one screen.
Step 5 Click .
Delete TV Wall
Click to delete TV wall.
Cancel Merged Screen
Select a merged screen and click “Cancel”.
Edit TV Wall
Click “Edit” and the system will pop out a dialog box of “New TV Wall”, as shown in Figure 5-12.
