Dahua NVR4832-I User Manual

Device Installation 23

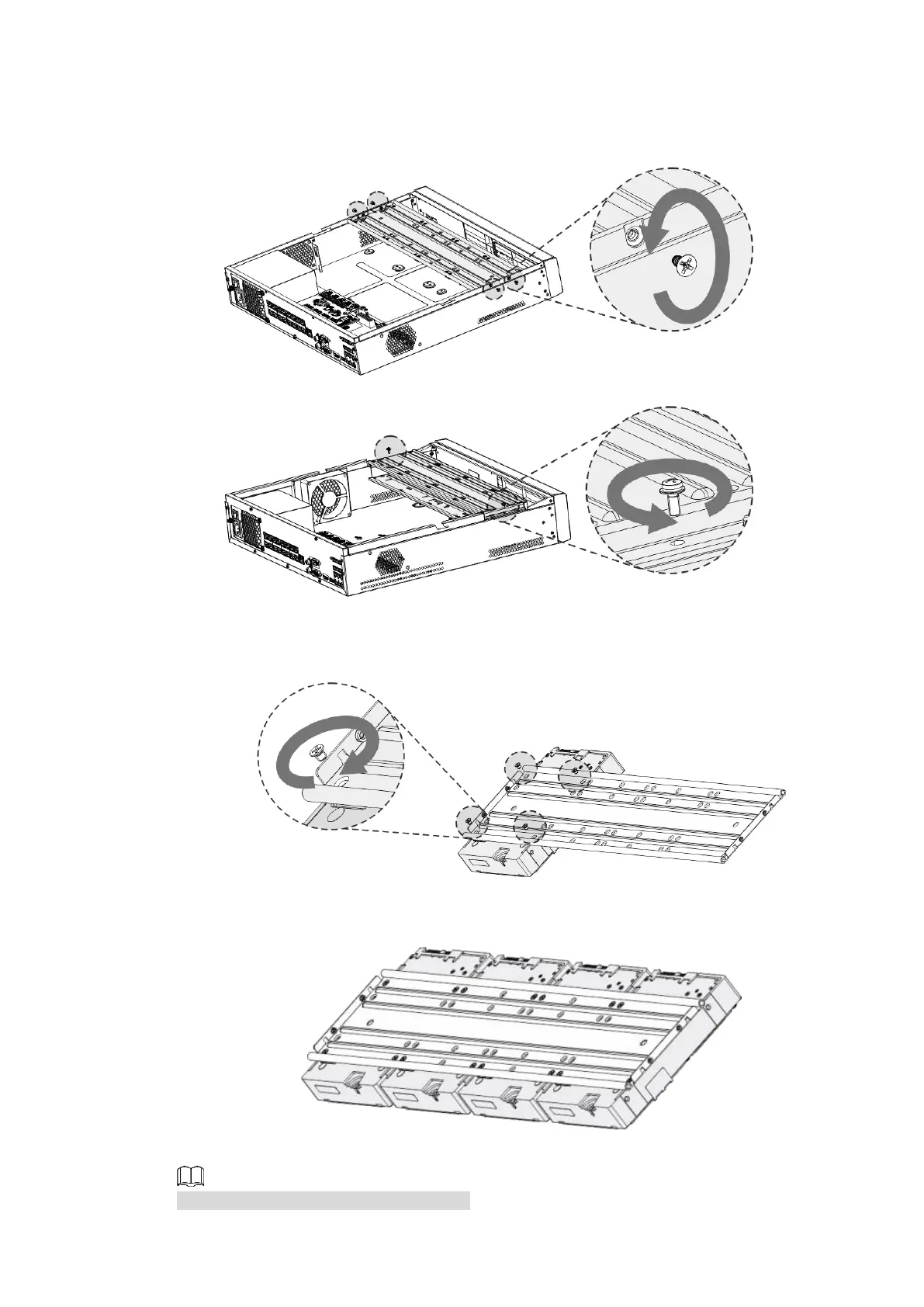

Figure 3-3
Figure 3-4
Match the four screw holes on the HDD with the four holes on the bracket and then fasten the screws.
The HDD is fixed to the bracket.
Figure 3-5
Refer to Step 4 to install other HDDs.
Figure 3-6
Lock the two HDD brackets.
This step is required for 2U devices only.

Dahua NVR4832-I Specifications

General

Brand	Dahua
Model	NVR4832-I
Category	DVR
Language	English
