Dahua NVR4832-I User Manual

Device Installation 25
Figure 3-10
3.4.2 NVR52-16P-I/52-8P-I/4216-16P-I/4208-8P-I/4216-I Series
Different models have different HDD numbers. The actual product shall prevail.

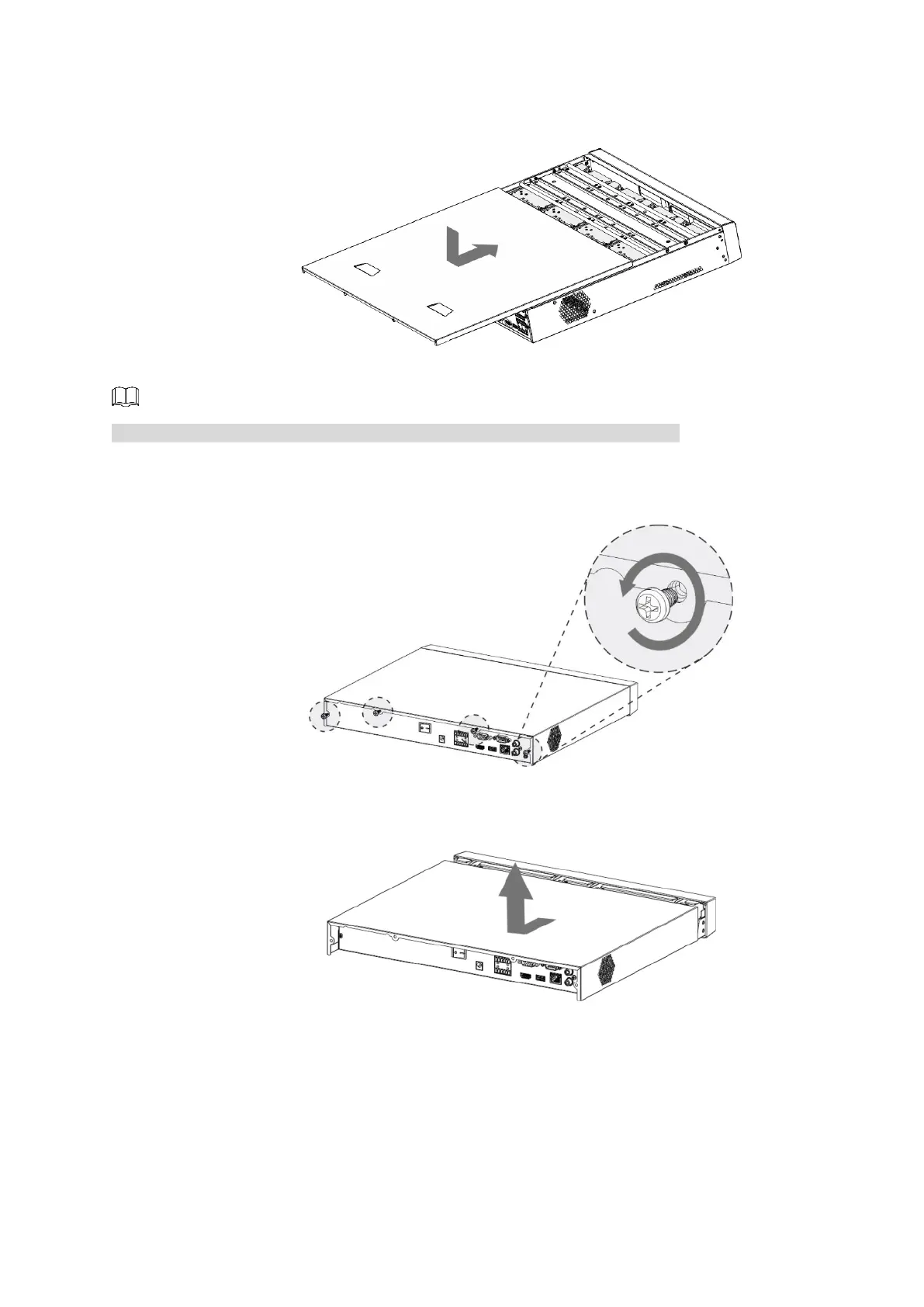

Remove the four fixing screws on the rear panel.
Figure 3-11
Remove the case cover along the direction shown in the following arrow.
Figure 3-12
Match the four holes on the baseboard to place the HDD.

Dahua NVR4832-I Specifications

General

Brand	Dahua
Model	NVR4832-I
Category	DVR
Language	English
