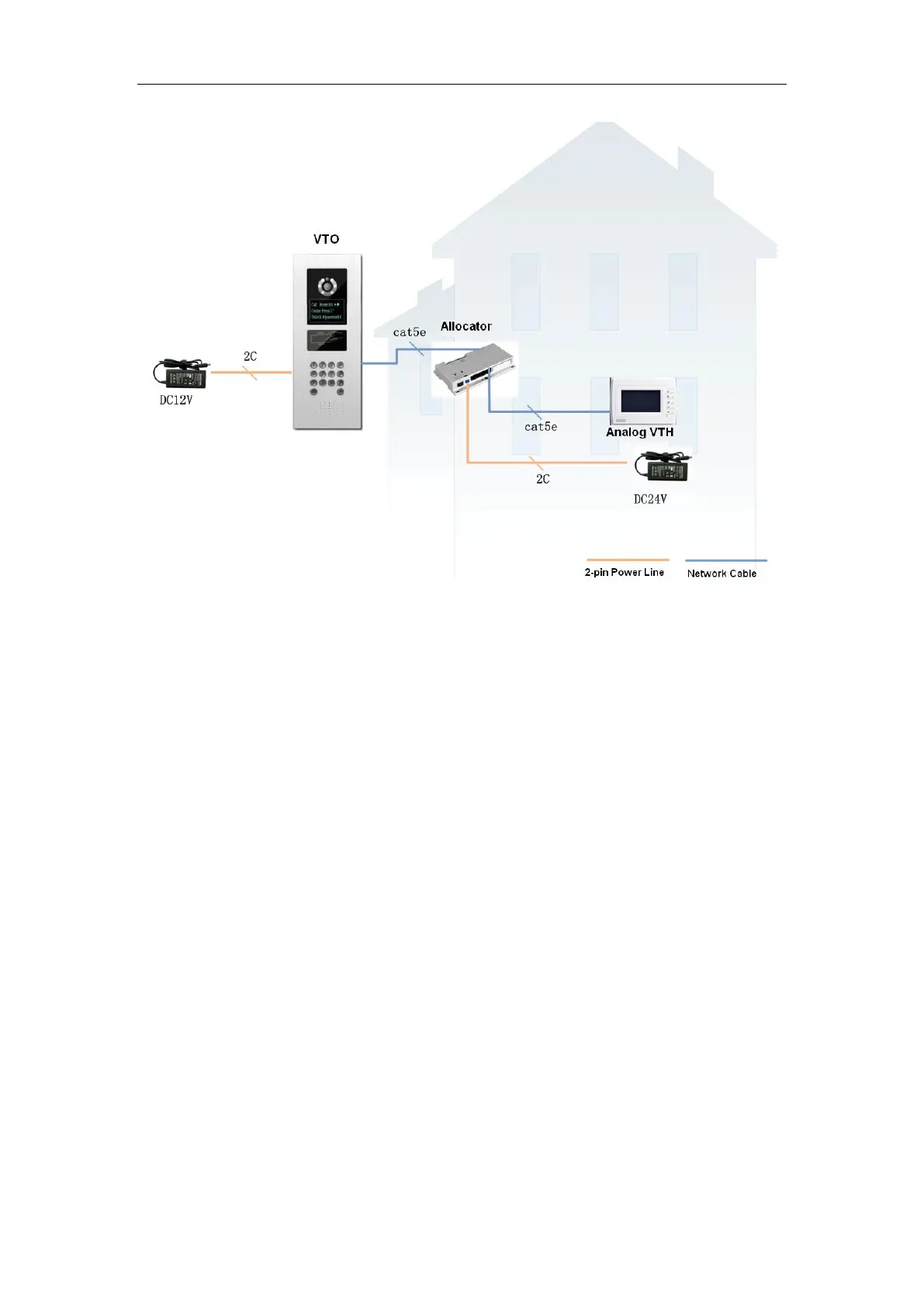

Figure 3- 6 Analog System
Note:
VTO analog signal port (see Figure 1-2 and 1-4) connects to allocator IN port. Select any
port of allocator to connect to VTH which allows allocator to power supply VTH.
A-X connects to analog signal port network cable according to cable color, from down to
up are: white-blue, blue, NA, NA, white-green, green, white-brown, and brown.
3.2.2 Configure VTO
Configure VTO info, ensure VTO and MGT center, VTO and VTH are connected.
Step 1. Login WEB.
Via PC remotely access VTO. In Internet Explorer, input VTO IP to enter VTO
WEB login page. Input account: admin; password: admin. Click on Login
Step 2. Set device info.
a) In page, select System Config>Local Config.
b) Set system type to analogue, video format to D1 and set frame rate according to
environment. Click on OK. See Figure 3- 7.
