Dahua VTO2111D-WP

2
2 Structure
2.1 Front Panel

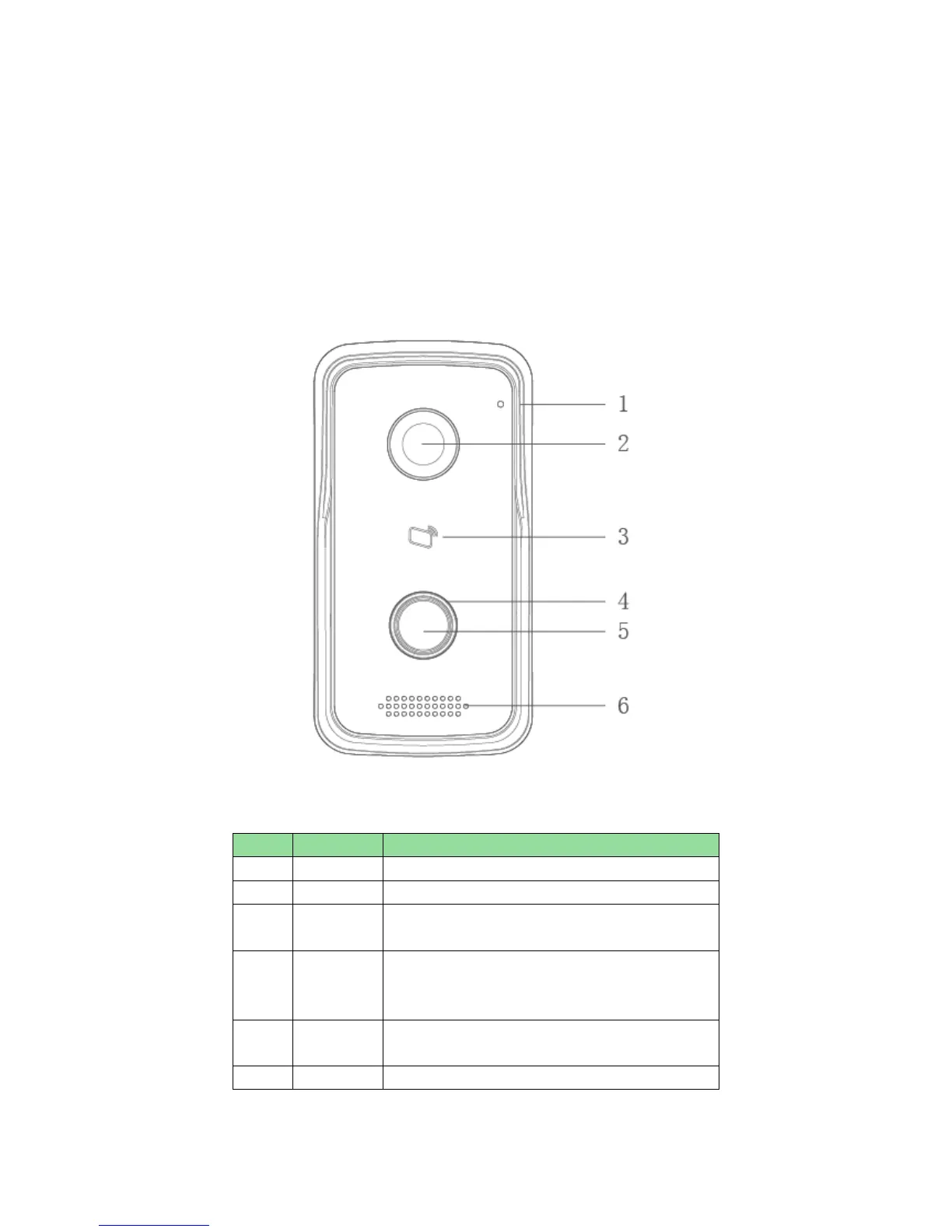

Device front panel is in Figure 2-1. Description of each component is in Chart 2-1.
Figure 2-1
No. Port Name Note
1 MIC Audio input.
2 Camera It monitors corresponding door region.
3 Card Area
Authorize IC card to unlock （card issuing）,
swipe card to unlock.
4 Indicator  In standby status, blue light is NO.
 Network offline, blu
e light flashes when
call VTH or MGT center.
5 Call
Button
Call MGT center or VTH.
6 Speaker Audio output.
Chart 2-1
