4.2 The kind of display
4.2.1 Measurement display
A measurement value display has the three following types of displays.
The change of the measurement display element of the main monitor by switch operation and the change of the
phase / line display of current / voltage is possible (temporarily).
In a general measurement display, if switch operation is not performed for 10 minutes after changing a display
element, it returns to the original measurement display element automatically.
① General measurement display
Measurement factors, such as current, voltage,
and active power, are displayed.
The measurement value of four factors is
displayed at the maximum.
Setting which always displays a measurement
factor is possible. And, it is possible to
change to a display of the maximum value and the
minimum value, about the measurement factor
which performs holding of the maximum value and
the minimum value by switch operation.
These maximum values and the minimum value are
reset by switch operation (it updates to the
instantaneous value at the time).
In addition, as for the maximum value and the
minimum value, power-supply reset is not cleared
either. And, this display is held by even after
10 minutes of switch non-operation.

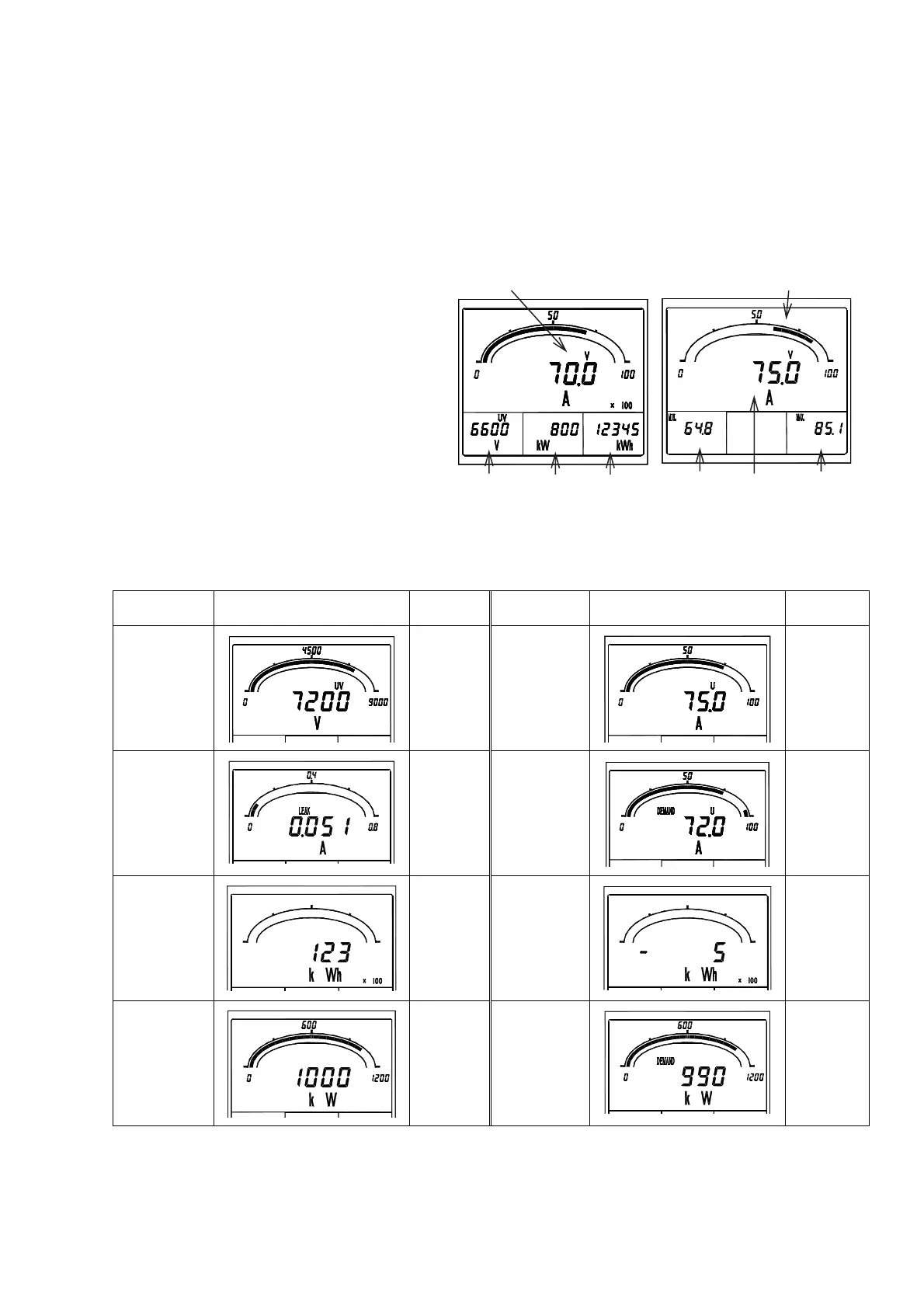

・The example of a measurement display of each measurement factor (Main monitor) ･･･ Harmonic measurement is excluded.
Measurement
factor
Example of display Note
Measurement
factor
Example of display Note
Voltage
Current
Current
leakage
“LEAK” is
display
Demand
current
“DEMAND” is
display
Watt-hour
(Power
receiving)
Watt-hour
(Power
transmission)
“－” is
display
Active power
Demand active
power
“DEMAND” is
display
General measurement display
A(V) display
V(UV)
display
General measurement maximum
and minimum display
Instant
display
Range of minimum to maximum
is displayed in bar graph.
Minimum
display
W
display
Wh
display
Maximum
display
