4.3 Operation

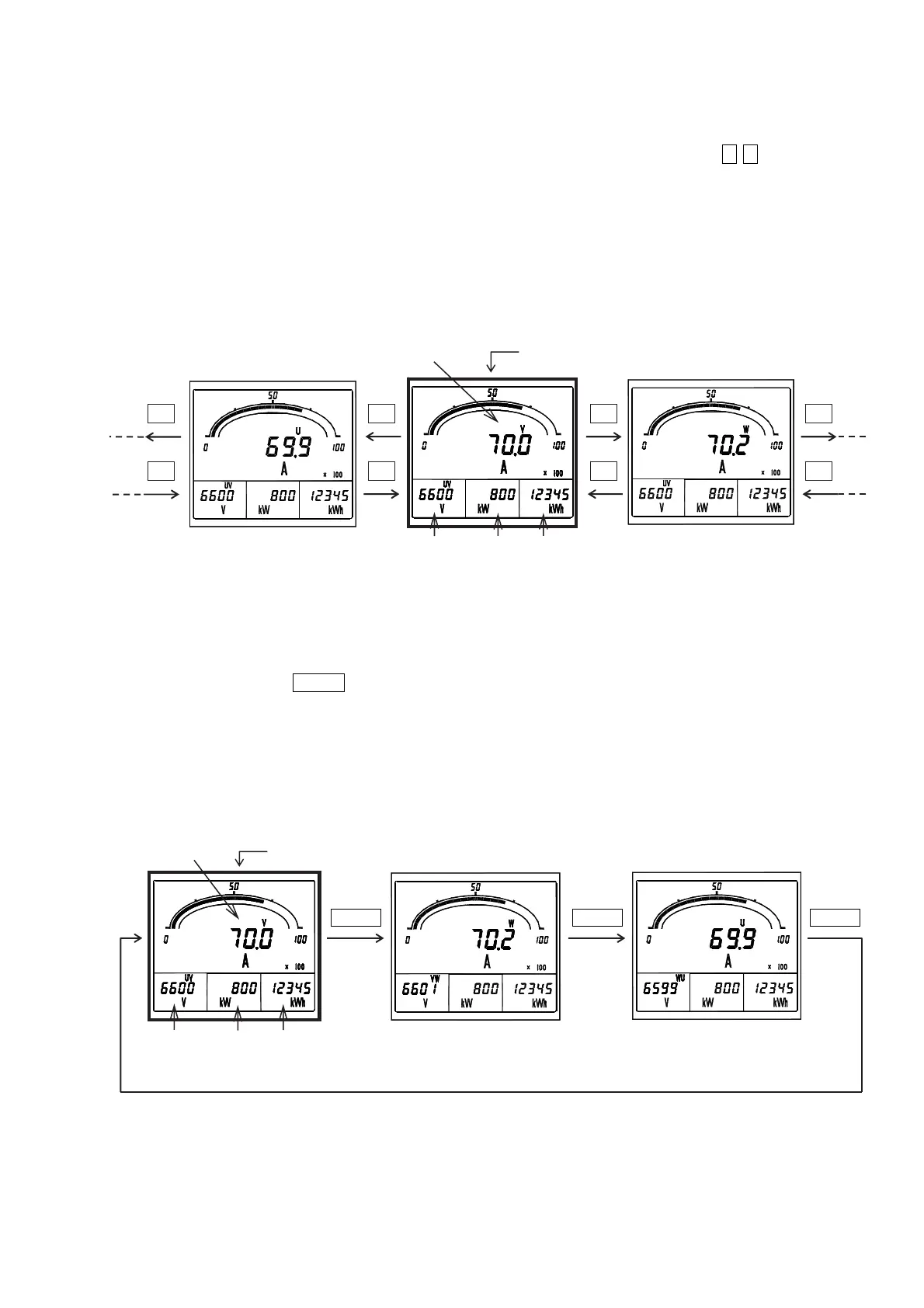

4.3.1 The main monitor display-element change
The measurement display element of the main monitor is changed. A change is performed by ＋ －.
This operation can be performed also except a general measurement display (harmonic measurement display, maximum
display and minimum display). However, in a harmonic measurement display, a sub-monitor changes with a harmonic
order. (The main monitor is distortion-factor fixation.)
After changing a measurement display element, if a switch is not operated for 10 minutes, it will return to the
original measurement display element automatically.
In a harmonic measurement display and maximum display and minimum display, even if a switch is not operated for
10 minutes, it does not return to the original display.
Setting can perform same operation in external operation input. Please refer to "5.3.2 Setting mode 2, (4)
external operation input setting" about the setting method. Please refer to "6.3 Option specification" about
external operation input.
Main monitor A(U) Main monitor A(V) Main monitor A(W)
(Default display)
4.3.2 Phase (line) display change
A phase (line) display of current or voltage is changed. (Everything which is being indicated)
A change is performed by
DISPLAY . This operation can be performed also except a general measurement display
(harmonic measurement display, maximum display and minimum display).
In addition, after changing a phase (line) display, if a switch is not operated for 10 minutes, it will return
to the original phase (line) display automatically.
In a harmonic measurement display and maximum display and minimum display, even if a switch is not operated for
10 minutes, it does not return to the original display.
Setting can perform same operation in external operation input. Please refer to "5.3.2 Setting mode 2, (4)
external operation input setting" about the setting method. Please refer to "6.3 Option specification" about
external operation input.
A(V)，V(UV) (Default display) A(W)，V(VW) A(U)，V(WU)
＋
－
＋
－
＋
－
＋
－
A(V) display
W
display
No operation 10 minute
V(UV)
display
Wh
display
DISPLAY
A(V) display No operation 10 minute
DISPLAY DISPLAY
W
display
V(UV)
display
Wh
display
