Daiichi Electronics SQLC-110L - Setting Value Check

SQLC-214-097
27
4.3.5 Setting value check
A voltage range (VT ratio), a current range (CT ratio), and an alarm-output set point are checked.
Check is
RESET/SHIFT and － are pushed simultaneously and performed.
The change of a set point is carries out by ＋ and － .
This operation can be performed also except a general measurement display (harmonic measurement display, maximum
display and minimum display).
DISPLAY is pushed in case it returns to the original measurement display.
And, if a switch is not operated for 10 seconds after a set point check, it will return to the original measurement
display automatically.

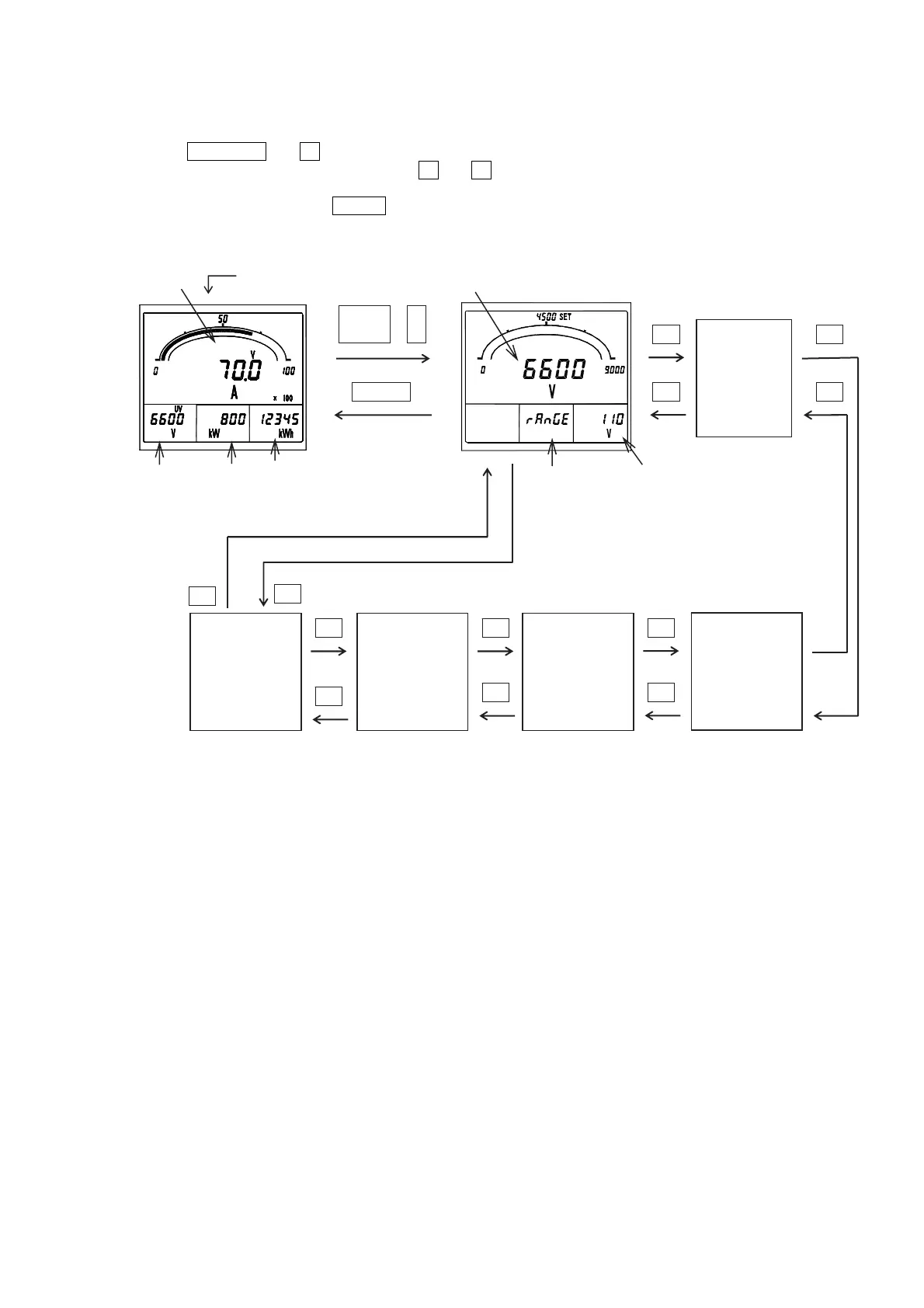

General display Set point check
Voltage range (VT ratio)
No operation
10 minute
DISPLAY
RESET/
SHIFT
＋
－
＋
－
Current
range
(CT ratio)
＋
－
－
＋
－
＋
－
＋
－
＋
A(V) display
VT ratio
Factor display
Input-rating
voltage display
Alarm output 2
Time interval，
Contact delay
time
V(UV)
display
W
display
Wh
display
Alarm output 2
factor，
Return method
Alarm output 1
Time interval，
Contact delay
time
Alarm output 1
factor ，
Return method
