SQLC-214-097
24
Alarm factor Example of a display
Current
distortio
n factor
Upper
limit
(H)
Detection display
Alarm setting value

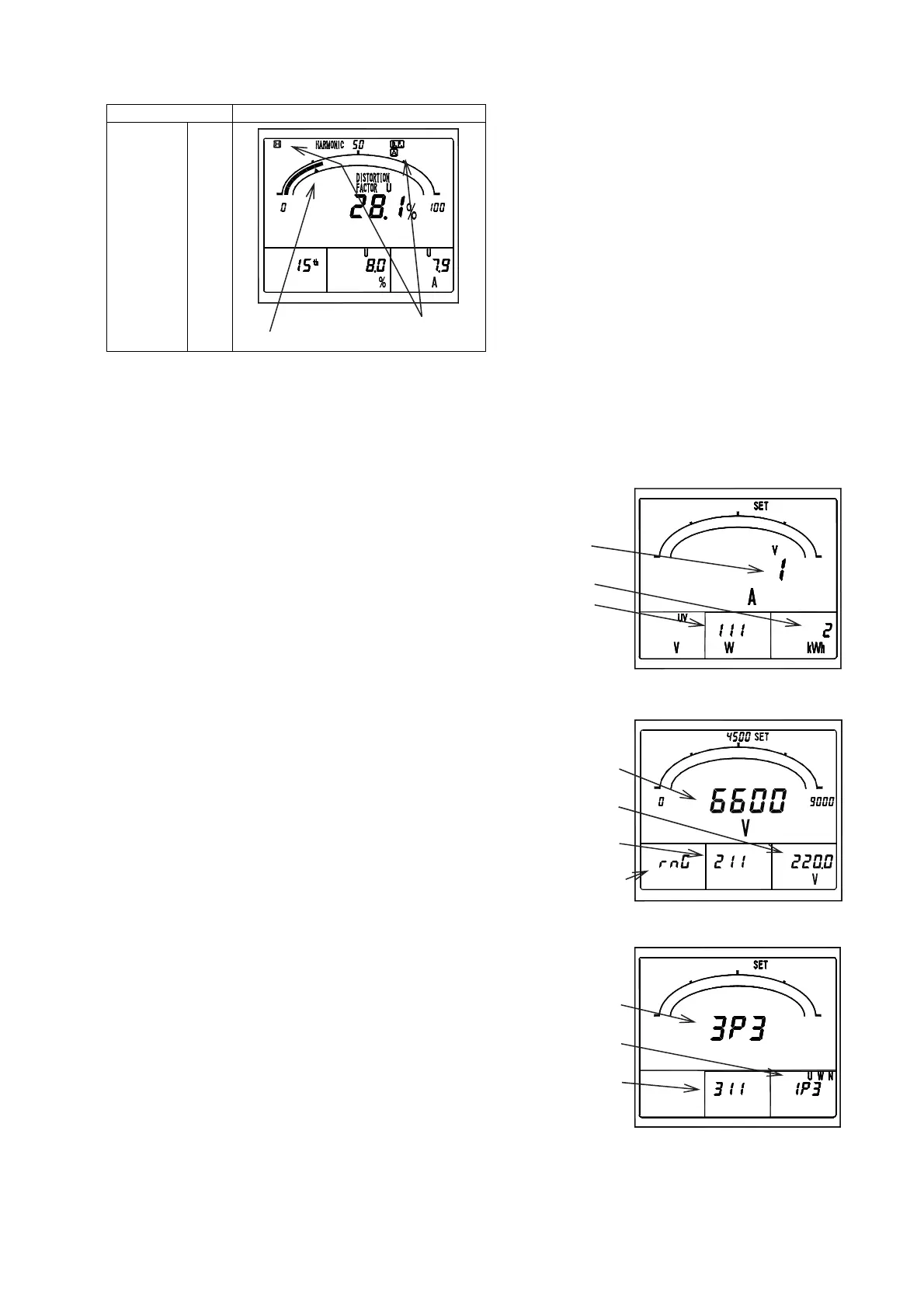

4.2.3 Setting display
It is the display at the case of various setting. There are three types of setting modes according to the
contents of a setting.
Refer to "5. Setting" for the operation in setting mode, and the detailed contents of a setting.
① Setting mode 1
Setting of a measurement display element, an alarm
output, and an alarm value is mainly performed.
And, an alarm output can be tested in this setting
mode.
Setting mode 1 (No.111 Display pattern)
② Setting mode 2
Setting of measurement range, analog output, pulse
output, and measurement display ON/OFF is mainly
performed.
And, initialization of a setting value and reset of
watt-hour integrated value can be performed in this
setting mode.
Setting mode 2 (No.211 Voltage range)
③ Setting mode 3
Setting of an input circuit and tidal current
measurement is mainly performed.
And, analog output can be adjusted in this setting
mode.
Setting mode 3
(No.311 Input circuit phase line change)
New setting
Current setting
Setting No.
Setting factor
New setting
Current setting
Setting No.
New setting
Current setting
Setting No.
