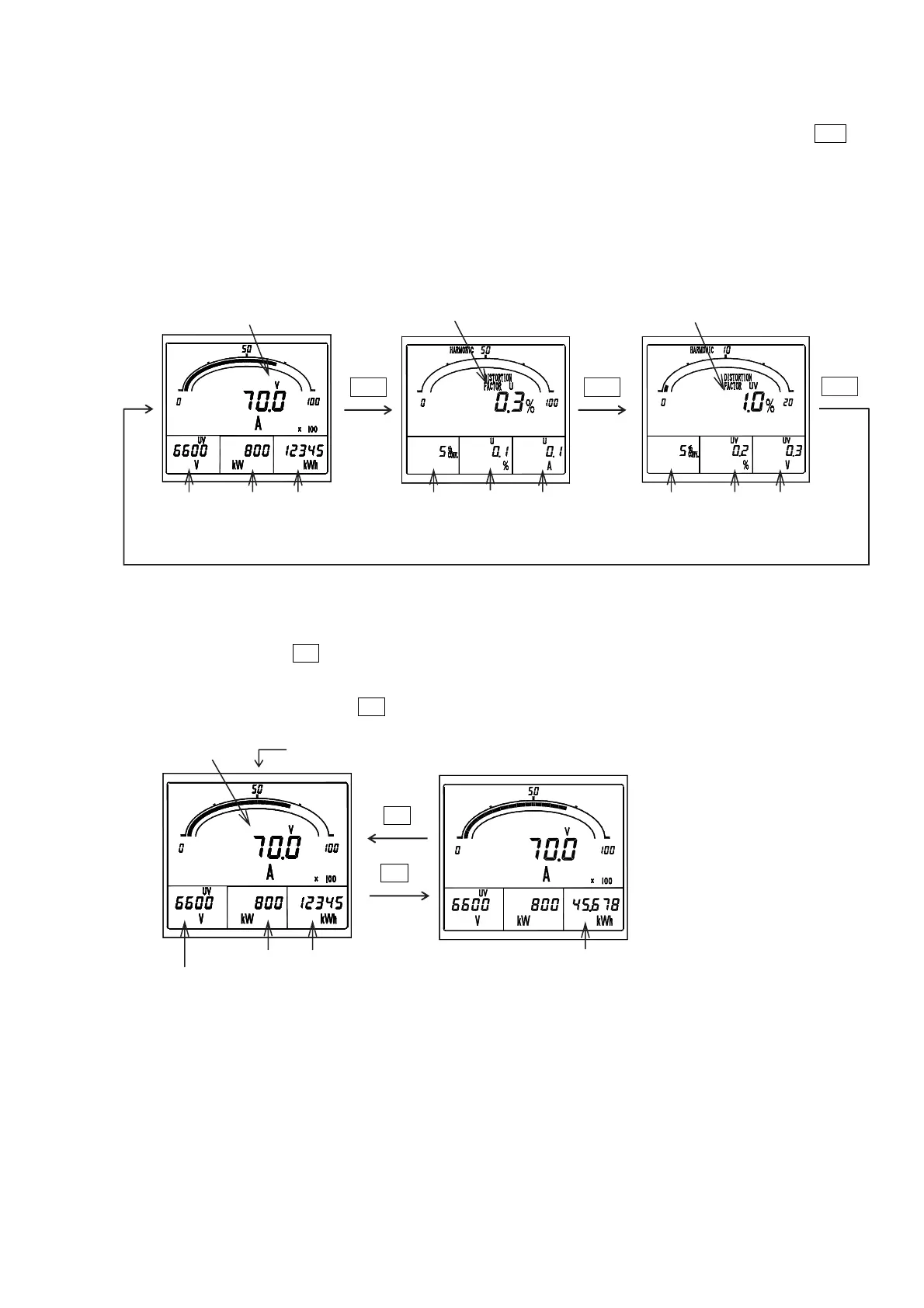

4.3.3 Harmonic measurement display change
A general measurement display and a harmonic measurement display are changed. A change is performed by
MODE .
Whenever it pushes a switch, it changes as follows. General measurement display → Current harmonic measurement
display → Voltage harmonic measurement display → General measurement display ･･･
This operation can also perform the maximum display and minimum display.
In that case, it changes in order of a next. General measurement maximum and the minimum display → Current harmonic
measurement maximum display → Voltage harmonic measurement maximum display → General measurement maximum and the
minimum display ･･･
In addition, about this operation, even if it does not do switch operation for 10 minutes, it does not return to the
original display.
General measurement display. Current harmonic measurement display. Voltage harmonic measurement display.
4.3.4 Watt-hour enlarged display
In case electric energy is being displayed by the general measurement display, an electric-energy display is usually
changed to a display (5 digits of integers), and an enlarged display (2 digits integer + below decimal point, 3 digits).
A change is performed by
SET .
After an enlarged display, if a switch is not operated for 10 minutes, it returns to the usual display automatically.
<Caution > If it continues pushing
SET 3 seconds or more, it will become the setting mode 1. (An electric-energy
display does not change)
General display Enlarged display
MODE
A(V) display
V(UV)
display
MODE
MODE
Order
display
Distortion-factor
display
Distortion-factor
display
W
display
Wh
display
Content
display
Effective-value
display
Order
display
Content
display
Effective-value
display
No operation 10 minute
SET
SET
A(V) display
Watt-hour enlarged display
V(UV) display
W display Wh display
