SQLC-214-097
62

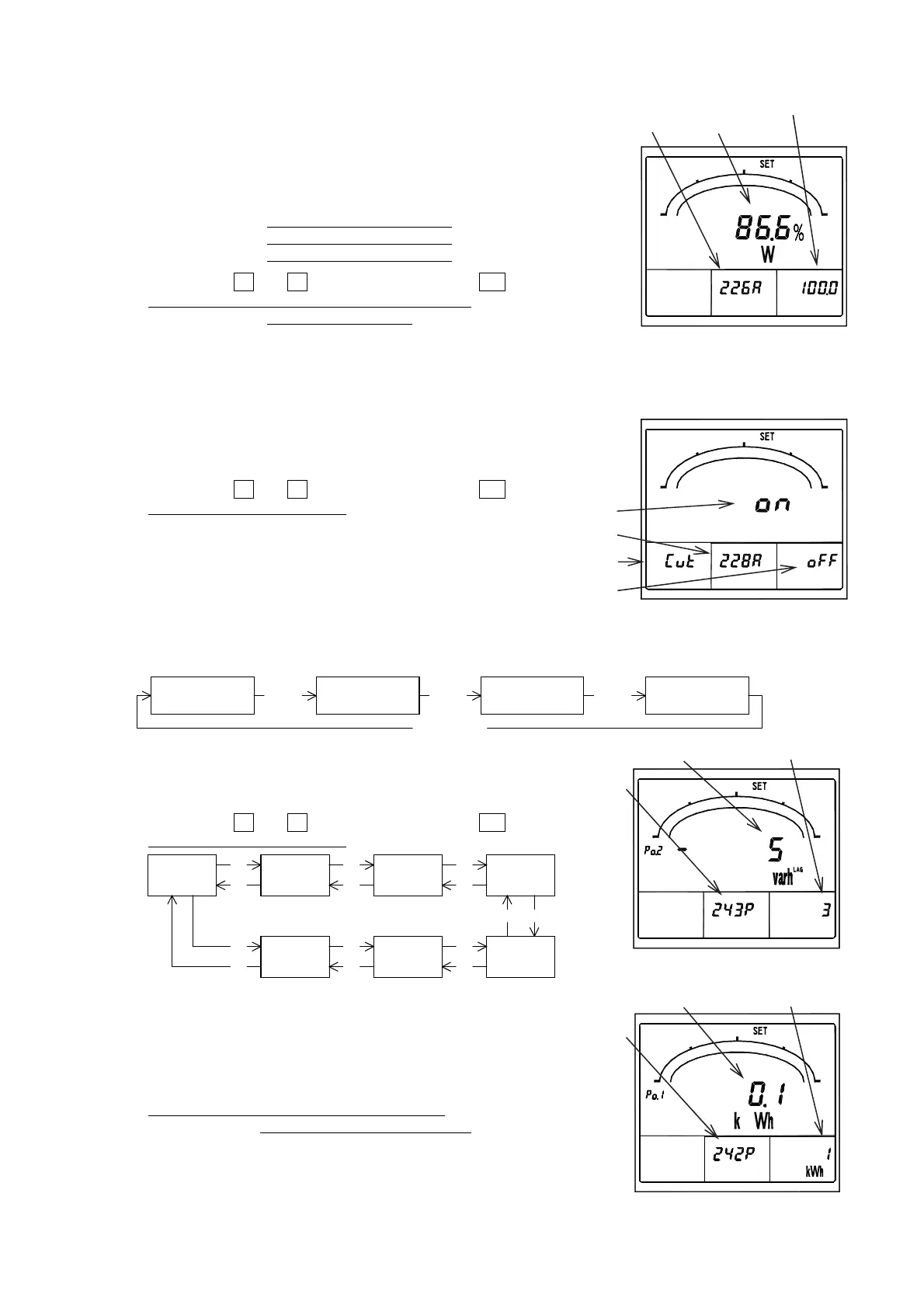

◆ 225A Current output intrinsic sensitivity,
226A Active power output intrinsic sensitivity,
227A Reactive power output intrinsic sensitivity.
Output intrinsic sensitivity (％ of an output to an input) is set
about each analog output of current, active power, and reactive power.
The setting range can be selected from the following.
Current ：40.0 to 120.0％ (0.1％ step)
Active power ：40.0 to 115.0％ (0.1％ step)
Reactive power：30.0 to 115.0％ (0.1％ step)
Selection by ＋ and － , set value is updated by SET .
Default setting：100.0％(Current, Active power)，
50.0％(Reactive power)
Example) 3φ3W, 9000V, 100.0A, 1200kW range, Analog output DC4‐20mA
･Set 100.0％. Analog output is DC20mA in 1200kW of primary inputs.
･Set 80.0％. Analog output is DC20mA in 1200kW×0.8＝960kW of primary input.
◆ 228A Low input cut
It is the function which makes analog output a lower limit at the case
of a minute input (input which corresponds to 0.5％ or less).
A function can be selected from ON (Use) and OFF (Non-use).
Selection by
＋ and － , set value is updated by SET .
Default setting：OFF (Non-use)
(3) 241P to 244P Pulse output setting 【With a pulse output option】
Various setting of a pulse output is performed.
RESET/SHIFT
RESET/
SHIFT
241P
Po1 output factor
242P
Po1 pulse unit
243P
Po2 output factor
244P
Po2 pulse unit
RESET/
SHIFT
RESET/
SHIFT
◆ 241P PO(pulse output) 1 output factor,
243P PO(pulse output) 2 output factor
Set the output factor of each pulse output.
Selection by
＋ and － , set value is updated by SET .
Default setting：Wh (PO1，PO2)
OFF：
Nothing
1：Wh
＋
－
＋
－
2：-Wh
＋
－
3：varh
(LAG)
＋－
6：-varh
(LEAD)
－
＋
5：-varh
(LAG)
－
＋
4：varh
(LEAD)
－
＋
◆ 242P PO(pulse output) 1 pulse unit,
244P PO(pulse output) 2 pulse unit
Set the pulse unit of each pulse output.
A pulse unit can be selected from four types.
The pulse unit that can be selected is decided with full-load power.
Default setting：10kWh/p [3φ3W] (PO1，PO2),
1kWh/p [1φ3W/1φ2W] (PO1，PO2)
Power-output intrinsic
sensitivity,
Setting No.
New setting
Current setting
Setting factor
Low input cut
Setting No.
New setting
Current setting
Po2 output factor
New setting Current setting
Setting No.
Po1 pulse unit
New setting Current setting
Setting No.
